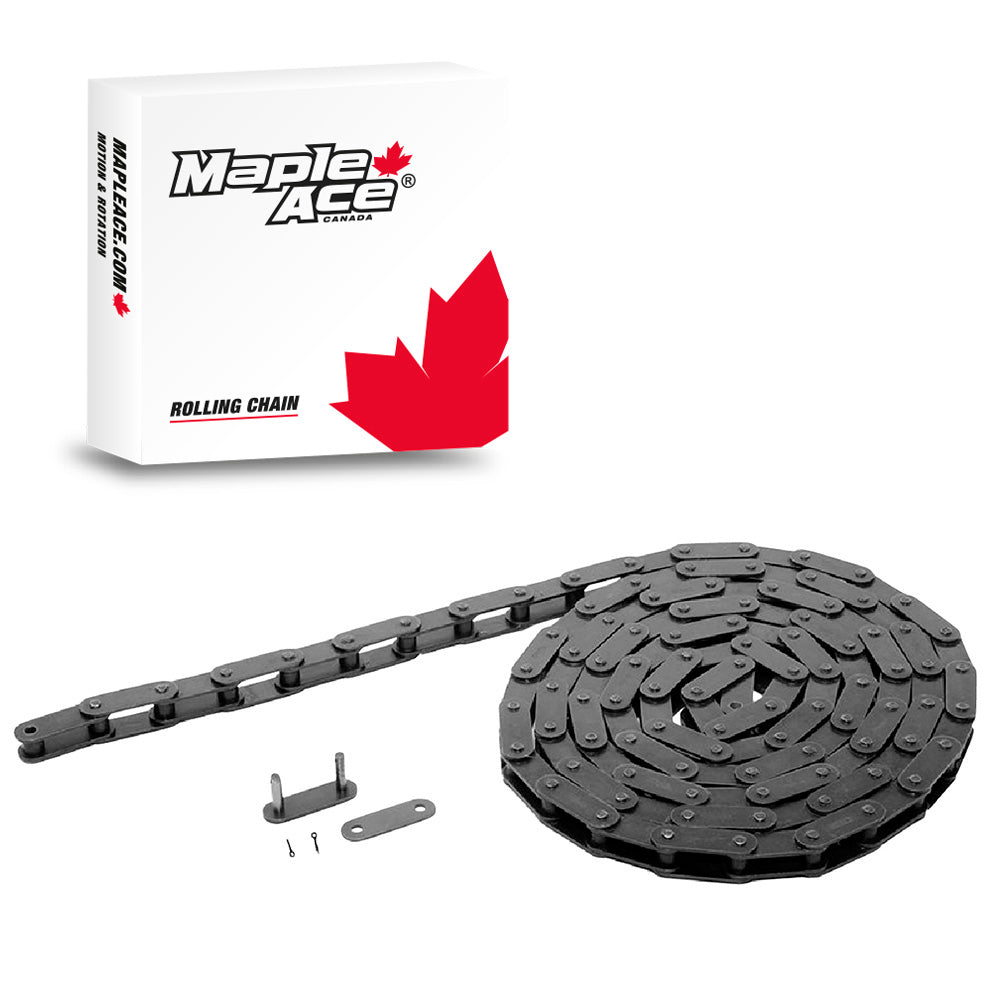

CA557 Agricultural Roller Chain 10 Feet plus Connecting Master Link

CA557 Agricultural Roller Chain 10 Feet plus Connecting Master Link

Availability: In stock

Product type: Chain

Regular price $80.95 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

CA557 Agricultural Roller Chain is a 1-5/8 inch pitch
Interchange to CA557, CA557D
Agricultural Roller Chain is characterized by its durability, resistance to wear, and ability to withstand the harsh conditions often encountered in agricultural environments, such as exposure to dirt, debris, and varying weather conditions.
Application: Combine Harvesters, Balers, Forage Harvesters, Manure Spreaders, Planters and Seeders, Grain Handling Equipment, Crop Processing Equipment, Conveyor and Elevators Systems in Agriculture
Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness

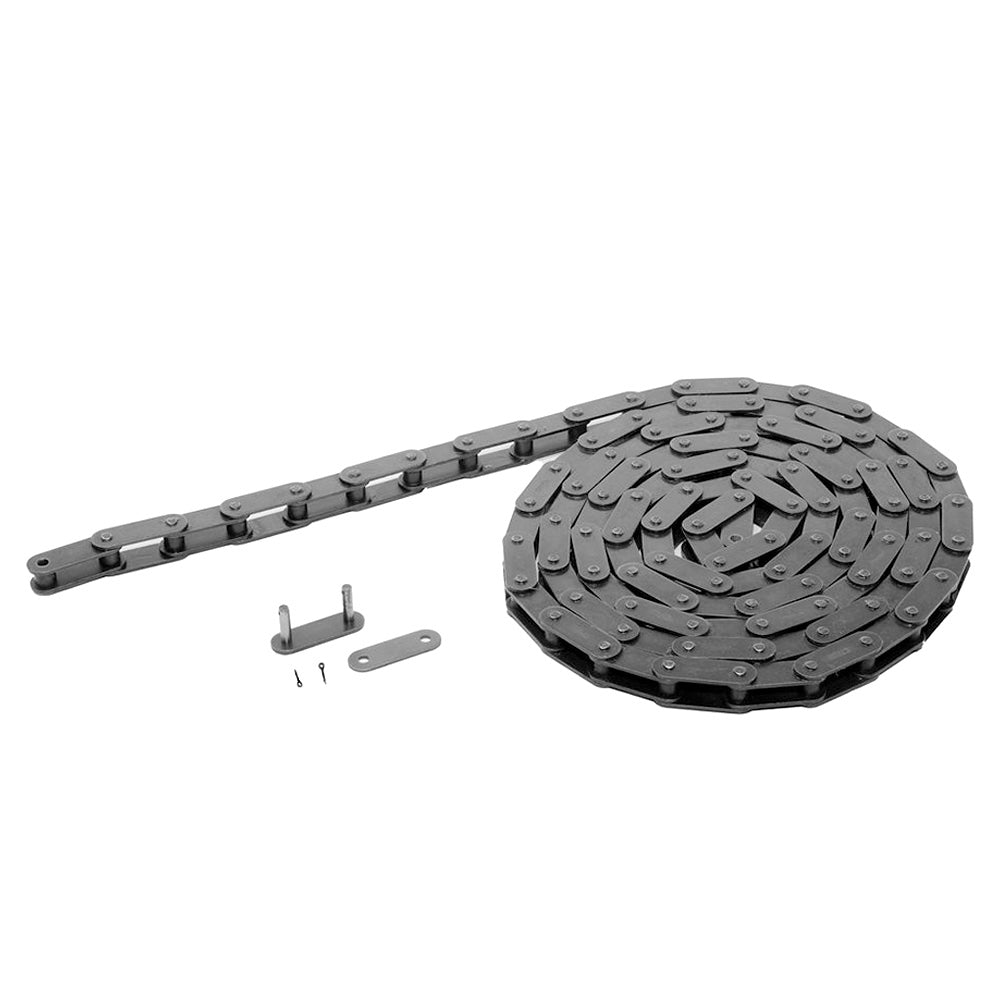

Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Specifications
Application

Item	CA557
Number of Strands	1
Chain Pitch Metric	41.4 mm
Chain Pitch Inch	1.63 in
Roller diameter d1 max Metric	17.78 mm
Roller diameter d1 max Inch	0.7 in
Width between inner plates b1 min Metric	20.24 mm
Width between inner plates b1 min Inch	0.80 in
Pin diameter d2 max Metric	8.00 mm
Pin diameter d2 max Inch	0.314 in
Pin length L max Metric	37.4 mm
Pin length L max Inch	1.472 in
Pin length Lc max Metric	40.6 mm
Pin length Lc max Inch	1.6 in
Plate height h2 max Metric	23.10 mm
Plate height h2 max Inch	0.91 in
Plate thickness T max Metric	3.10 mm
Plate thickness T max Inch	1.22 in
Ultimate Tensile Strength Q min	55.61/12.639 kN/LB
Average Tensile Strength Q0	74.30 kN
Weight (kg/m)	2.600 kg
Weight (lbs/ft)	1.75 lbs
Material	Carbon/Alloy Steel
