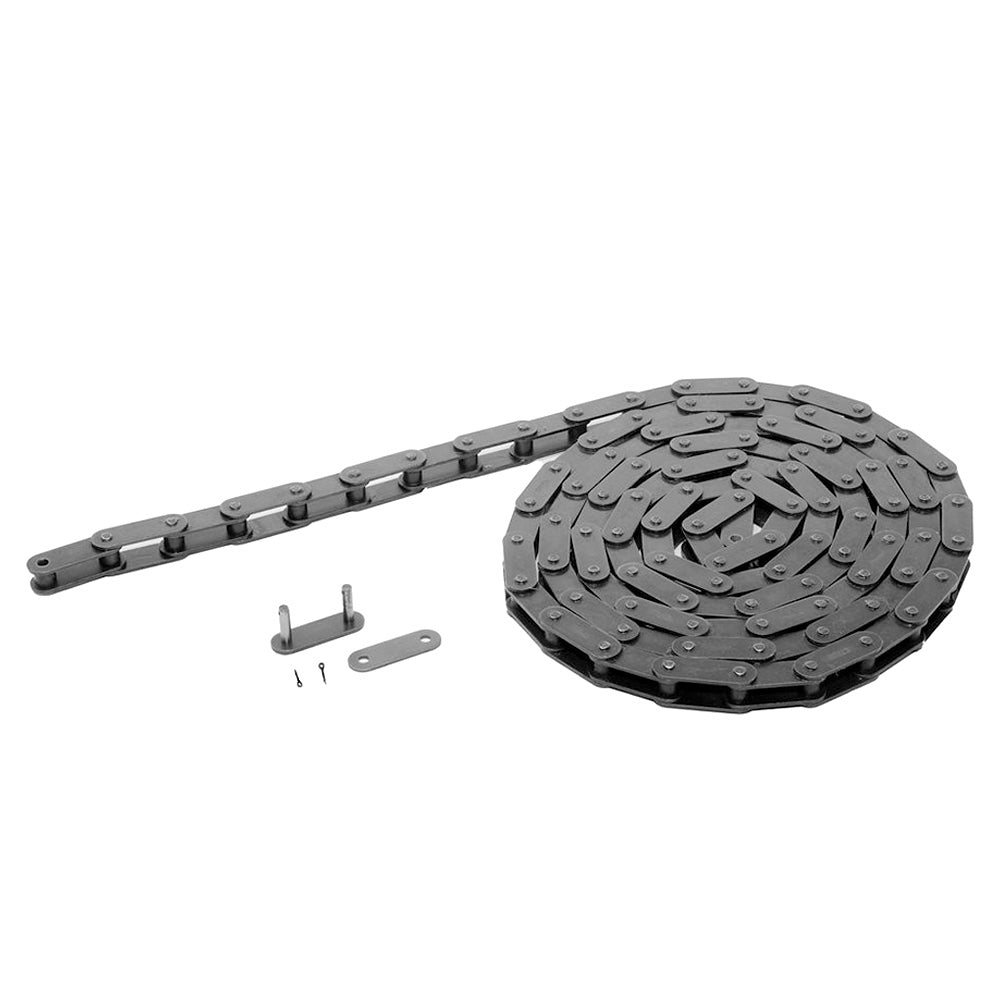

C2050 Conveyor Chain 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

Regular price $29.49 USD

Maple Ace Double Pitch Conveyor Chain has similar dimensions to ASME/ANSI B29.4 standard products except that the pitch is double Double Pitch...

  • C2050 Chain Double pitch Conveyor Chain is a 1-1/4 inch pitch ANSI Standard Roller Chain
  • Interchange to ANSI Chain No. C2050, BS/ISO No. C210A, PHCC2050
  • Conveyor Roller Chain is twice that of standard roller chains, meaning the distance between the centers of two consecutive roller pins is doubled.
  • Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food and Beverage Industry, Power Transmission Systems
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

  • Maple Ace Double Pitch Conveyor Chain has similar dimensions to ASME/ANSI B29.4 standard products except that the pitch is double
  • Double Pitch Conveyor Chains are suitable for low speeds, moderate loads, and long centre-distance drive applications
  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

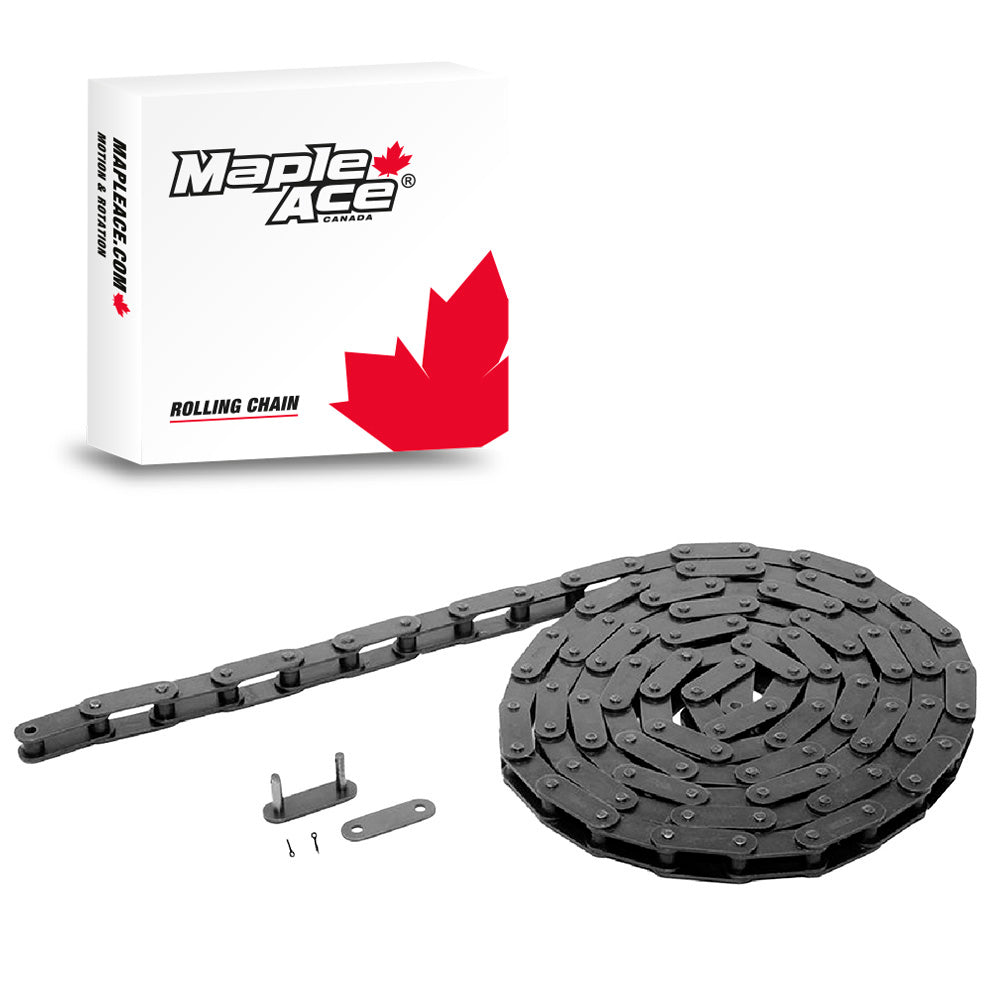

  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  C2050
ANSI Chain number  C2050
BS/ISO Chain number  C210A
Number of Strands
Chain Pitch Metric  31.75 mm
Chain Pitch Inch  1.25 in
Roller diameter d1 max Metric  10.16 mm
Roller diameter d1 max Inch  0.4 in
Width between inner plates b1 min Metric  9.4 mm
Width between inner plates b1 min Inch  0.37 in
Pin diameter d2 max Metric  5.08 mm
Pin diameter d2 max Inch  0.2 in
Pin length L max Metric  20.7 mm
Pin length L max Inch  0.82 in
Pin length Lc max Metric  22.2 mm
Pin length Lc max Inch  0.88 in
Plate height h2 max Metric  15 mm
Plate height h2 max Inch  0.59 in
Plate thickness T max Metric  2.03 mm
Plate thickness T max Inch  0.08 in
Ultimate Tensile Strength Q min  22.2 kN
Average Tensile Strength Q0  28.1 kN
Weight (kg/m)  0.780 kg
Weight (lbs/ft)  0.52 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Conveyor Systems
  • Packaging Equipment
  • Agricultural Equipment
  • Construction and Mining Equipment
  • Cement and Aggregate Industry
  • Material Handling Equipment
  • Mining and Quarrying
  • Food and Beverage Industry
  • Waste Management and Recycling
  • Warehouse and Distribution
  • Power Transmission Systems
  • Automated Manufacturing Systems
  • Lumber and Forestry Industry
  • Steel and Metal Processing
