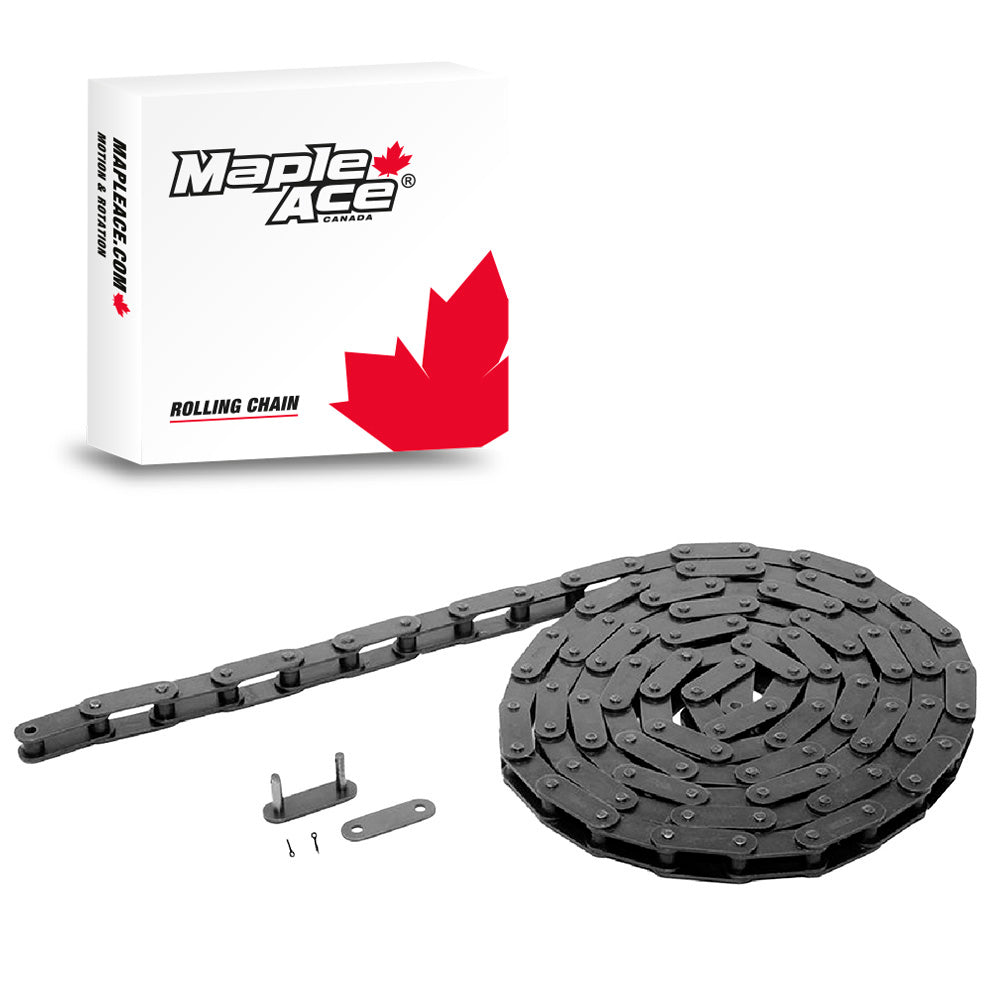

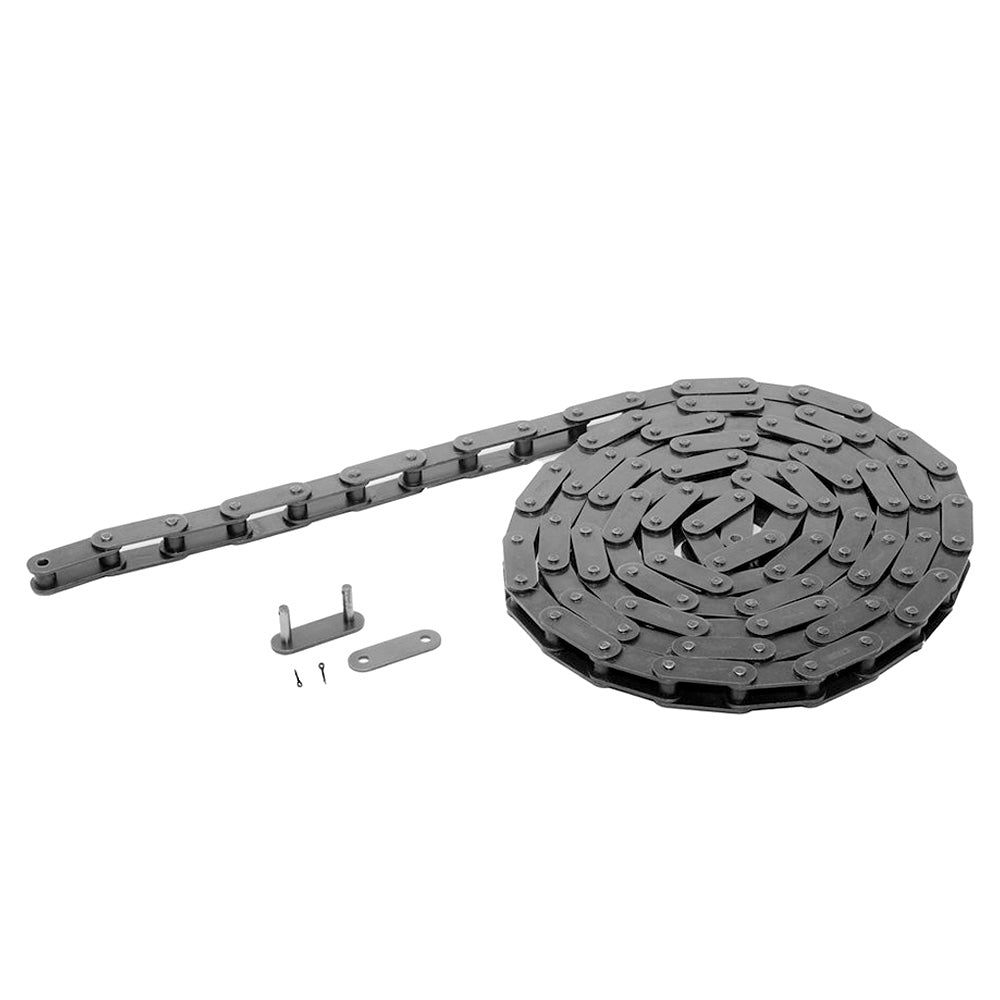

C2060 Conveyor Chain 10 Feet plus Connecting Master Link

Availability: In stock

Product type: Chain

Regular price $33.49 USD

Maple Ace Double Pitch Conveyor Chain has similar dimensions to ASME/ANSI B29.4 standard products except that the pitch is double Double Pitch...

C2060 Chain Double pitch Conveyor Chain is a 1-1/2 inch pitch ANSI Standard Roller Chain
Interchange to ANSI Chain No. C2060, BS/ISO No. C212A, PHCC2060
Conveyor Roller Chain is twice that of standard roller chains, meaning the distance between the centers of two consecutive roller pins is doubled.
Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food and Beverage Industry, Power Transmission Systems
Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Maple Ace Double Pitch Conveyor Chain has similar dimensions to ASME/ANSI B29.4 standard products except that the pitch is double
Double Pitch Conveyor Chains are suitable for low speeds, moderate loads, and long centre-distance drive applications
All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness
Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Item	C2060
ANSI Chain number	C2060
BS/ISO Chain number	C212A
Number of Strands	1
Chain Pitch Metric	38.1 mm
Chain Pitch Inch	1.5 in
Roller diameter d1 max Metric	11.91 mm
Roller diameter d1 max Inch	0.47 in
Width between inner plates b1 min Metric	12.57 mm
Width between inner plates b1 min Inch	0.49 in
Pin diameter d2 max Metric	5.94 mm
Pin diameter d2 max Inch	0.23 in
Pin length L max Metric	25.9 mm
Pin length L max Inch	1.02 in
Pin length Lc max Metric	27.7 mm
Pin length Lc max Inch	1.09 in
Plate height h2 max Metric	18 mm
Plate height h2 max Inch	0.71 in
Plate thickness T max Metric	2.42 mm
Plate thickness T max Inch	0.1 in
Ultimate Tensile Strength Q min	31.8 kN
Average Tensile Strength Q0	36.8 kN
Weight (kg/m)	1.120 kg
Weight (lbs/ft)	0.75 lbs
Material	Carbon/Alloy Steel
