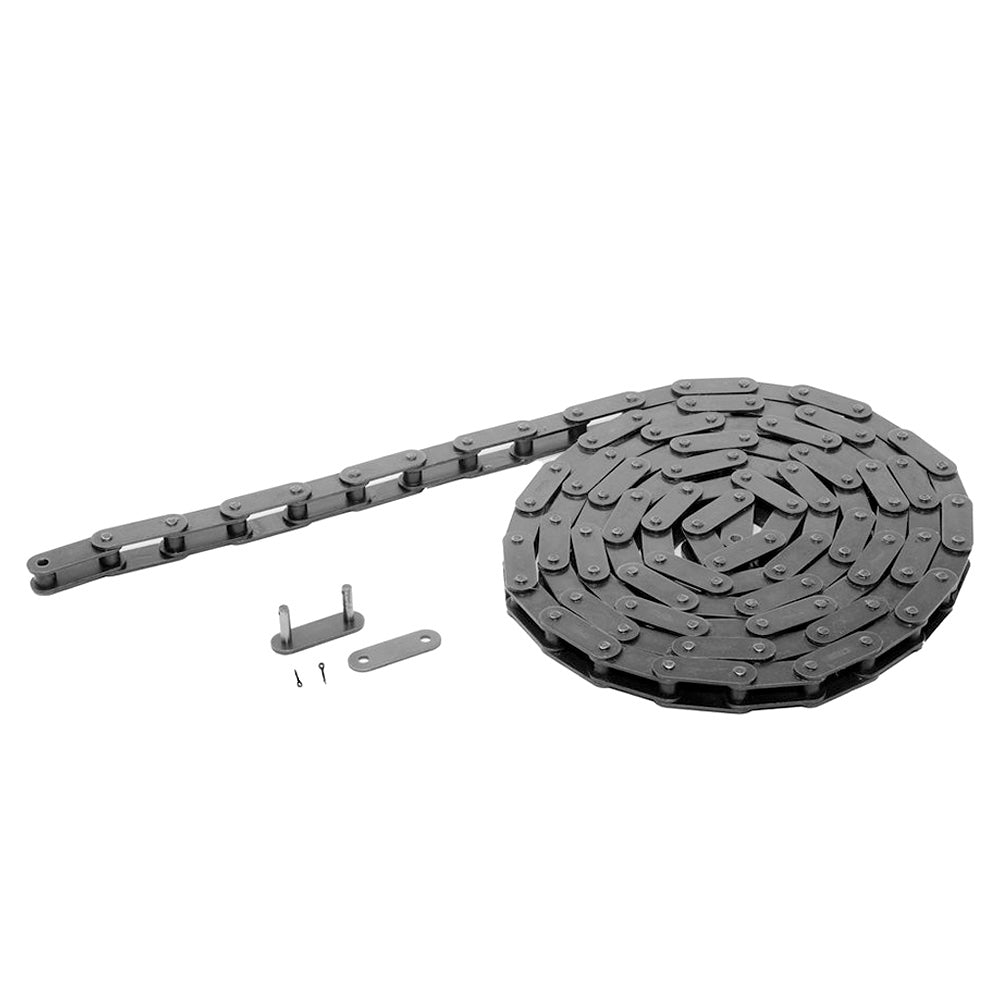

C2080H Heavy Duty Conveyor Chain 10 Feet plus Connecting Master Link

C2080H Heavy Duty Conveyor Chain 10 Feet plus Connecting Master Link

Availability: In stock

Product type: Chain

Regular price $62.29 USD

H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads,...

C2080H Heavy Duty Chain Double pitch Conveyor Chain is a 2 inch pitch ANSI Standard Roller Chain
Interchange to ANSI Chain No. C2060H, BS/ISO No. C216AH, PHCC2080H
Heavy Duty Conveyor Chain of the Roller Chain is twice that of standard roller chains, meaning the distance between the centers of two consecutive roller pins is doubled.
Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food and Beverage Industry, Power Transmission Systems
Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads, and is suitable for lower operating speeds
All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness

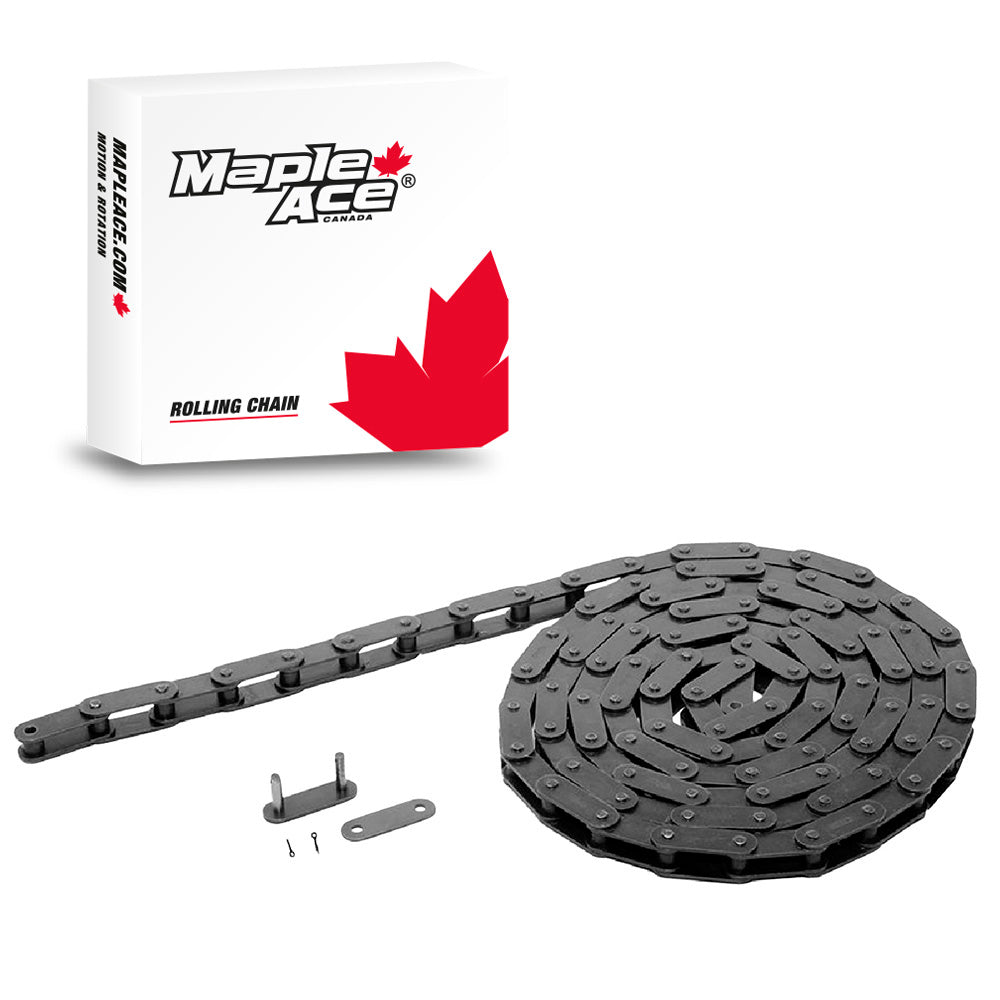

Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Specifications
Application

Item	C2080H
ANSI Chain number	C2080H
BS/ISO Chain number	C216AH
Number of Strands	1
Chain Pitch Metric	50.80 mm
Chain Pitch Inch	2 in
Roller diameter d1 max Metric	15.88 mm
Roller diameter d1 max Inch	0.63 in
Width between inner plates b1 min Metric	15.75 mm
Width between inner plates b1 min Inch	0.62 in
Pin diameter d2 max Metric	7.92 mm
Pin diameter d2 max Inch	0.31 in
Pin length L max Metric	36.2 mm
Pin length L max Inch	1.43 in
Pin length Lc max Metric	39.3 mm
Pin length Lc max Inch	1.55 in
Plate height h2 max Metric	24 mm
Plate height h2 max Inch	0.94 in
Plate thickness T max Metric	4 mm
Plate thickness T max Inch	0.16 in
Ultimate Tensile Strength Q min	56.7 kN
Average Tensile Strength Q0	70.0 kN
Weight (kg/m)	2.540 kg
Weight (lbs/ft)	1.71 lbs
Material	Carbon/Alloy Steel
