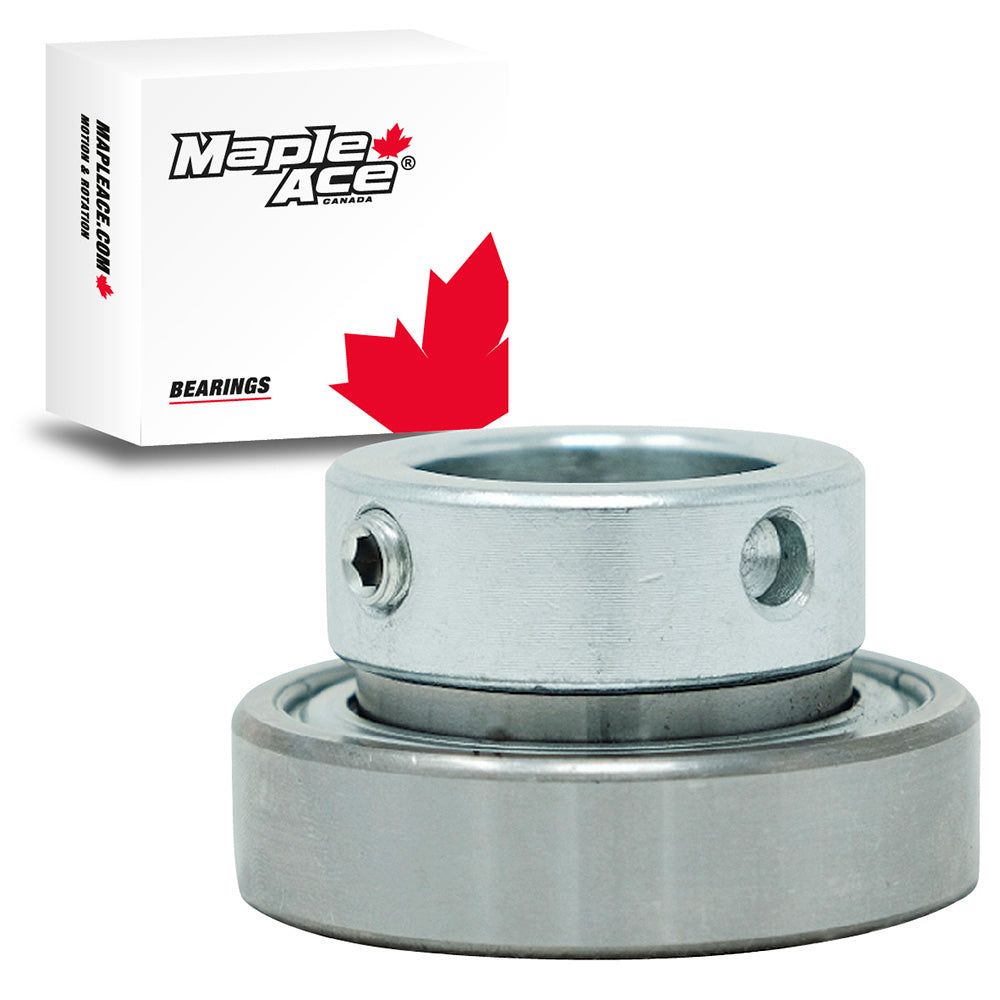

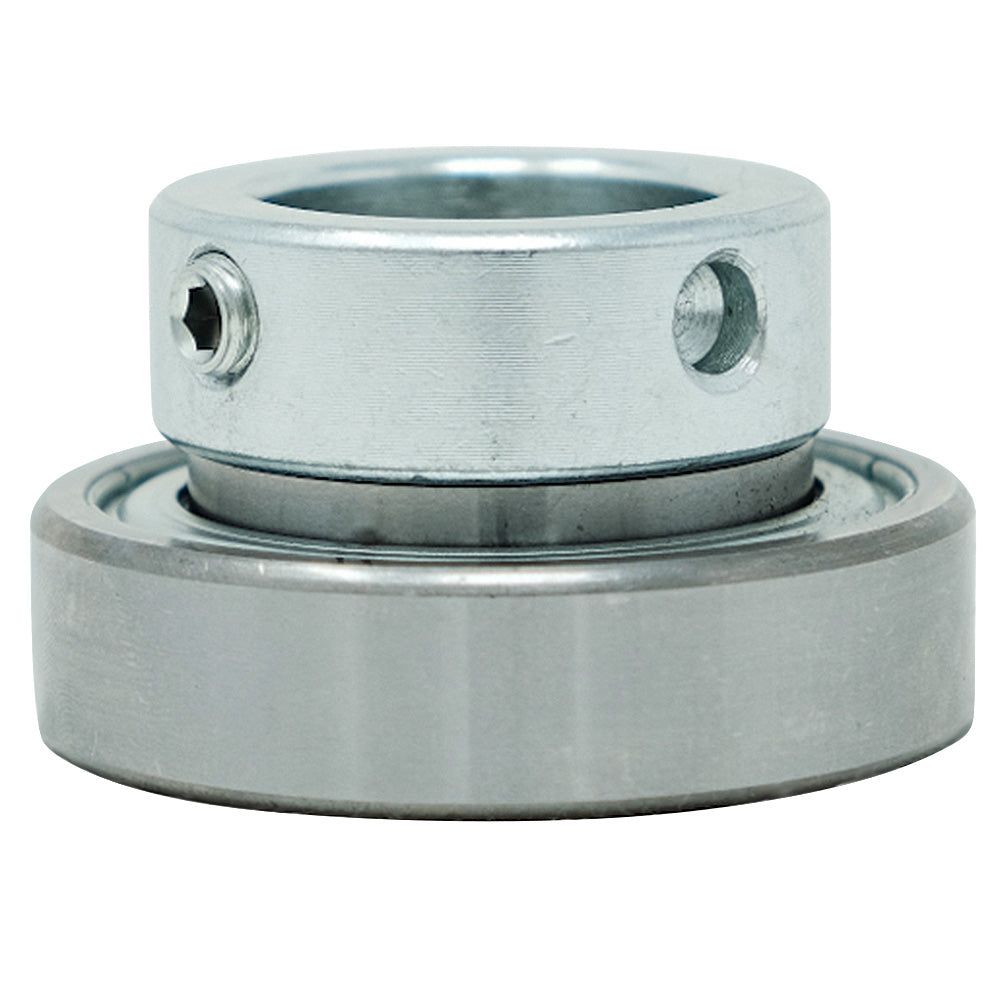

CSA207-23 Insert Bearing 1-7/16in Bore, Cylindrical OD, Eccentric Lock Collar

CSA207-23 Insert Bearing 1-7/16" Bore, Cylindrical OD, Eccentric Lock Collar

Availability: In stock

Product type: Ball Bearings

Vendor: MAPLE ACE

Regular price $18.95 USD

This INSERT BEARING has a Cylindrical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

Exclusively Produced by High Standard Factories
Ideal for Replacement and OEM Applications
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
100% SATISFACTION GUARANTEED

Description

This INSERT BEARING has a Cylindrical Surface
Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
Doesn't Have Groove and Oil Hole to Relubricate
Has Eccentric Locking Collar (Self-Locking Collar)

Item	CSA207-23
Series	CSA200
Outer ring type	Cylindrical
Inner Diameter Metric	36.5125 mm
Inner Diameter Inch	1.4375 in
Outside Diameter Matric	72.00 mm
Outside Diameter Inch	2.8346 in
Width with Collar Matric	38.90 mm
Width with Collar Inch	1.5315 in
Width Inner Ring Matric	25.40 mm
Width Inner Ring Inch	1.00 in
Width Outer Ring Matric	19.00 mm
Width Outer Ring Inch	0.748 in
Dynamic Load Rating Cr	25500 N
Static Load Rating Cor	15300 N
Limiting Speed	5300 r/min
Clearance	Normal
Closures	Shield on both sides
Sealing type	Contact, standard
Lubrication Type	Grease Shell RL2
Lubrication Temperature	-20°C to +160°C
Relubrication feature	Without
Rolling Element Indicator	Ball
Material	Gcr15
Locking Type	Eccentric Locking Collar
Weight	0.460 KG

ASAHI	KHR207-23AE
FAG	RA107-NPP
FYH	SAA207-23
INA	RA106-NPP
Koyo	SAA207-23
NACHI	KHR207-23AE
NSK	ENR207-23S
NTN	AELS207-23
RHP	1335-1-7/16EC
SKF	YET207-107CW
SNR	CES207-23
TIMKEN	RA107RR
