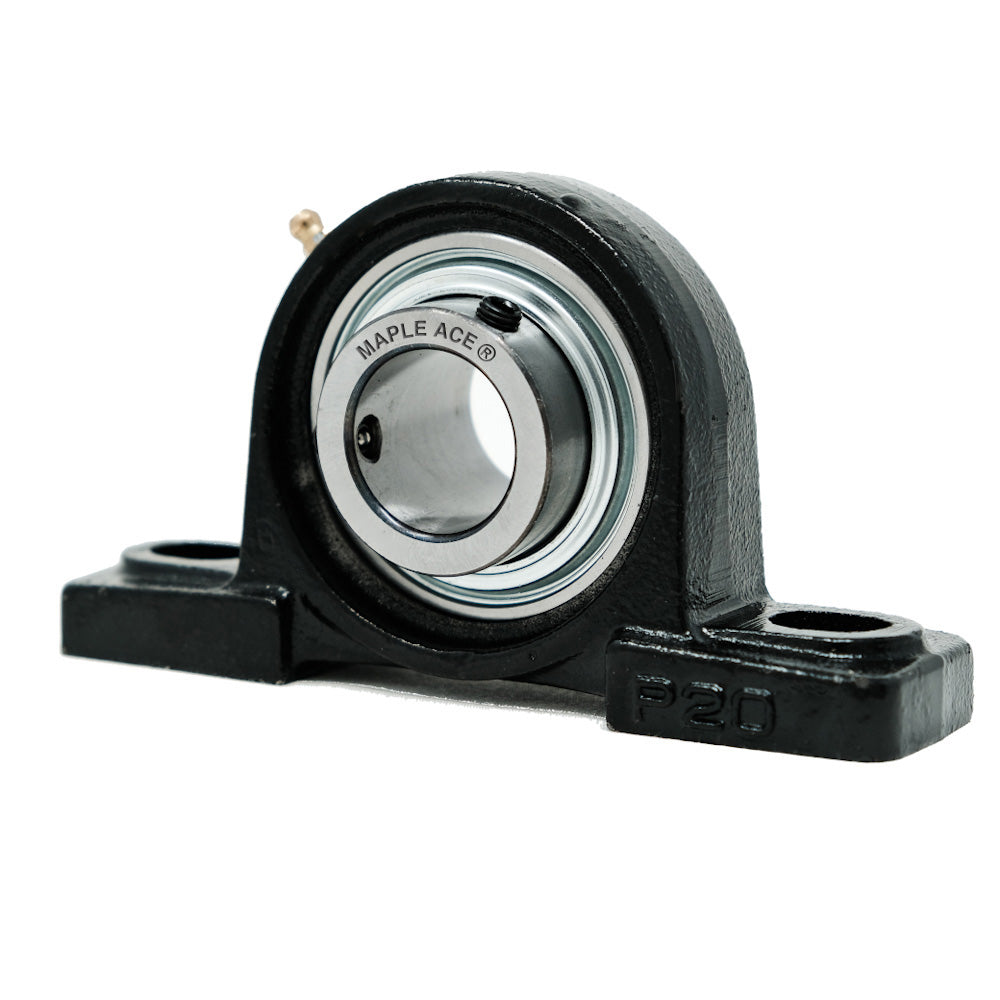

UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal
UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal
UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal
UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal
UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal
UCP204-12 Pillow Block Bearing 3/4in Bore, 2-Bolt, Self-Aligning, 3 Lips Seal

UCP204-12 Pillow Block Bearing 3/4" Bore, 2-Bolt, Self-Aligning, 3 Lips Seal

: In stock

: Mounted Bearings

: MAPLE ACE

$12.99 USD

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing The INSERT BEARING has Triple-Lip Seal: Unmatched protection...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing

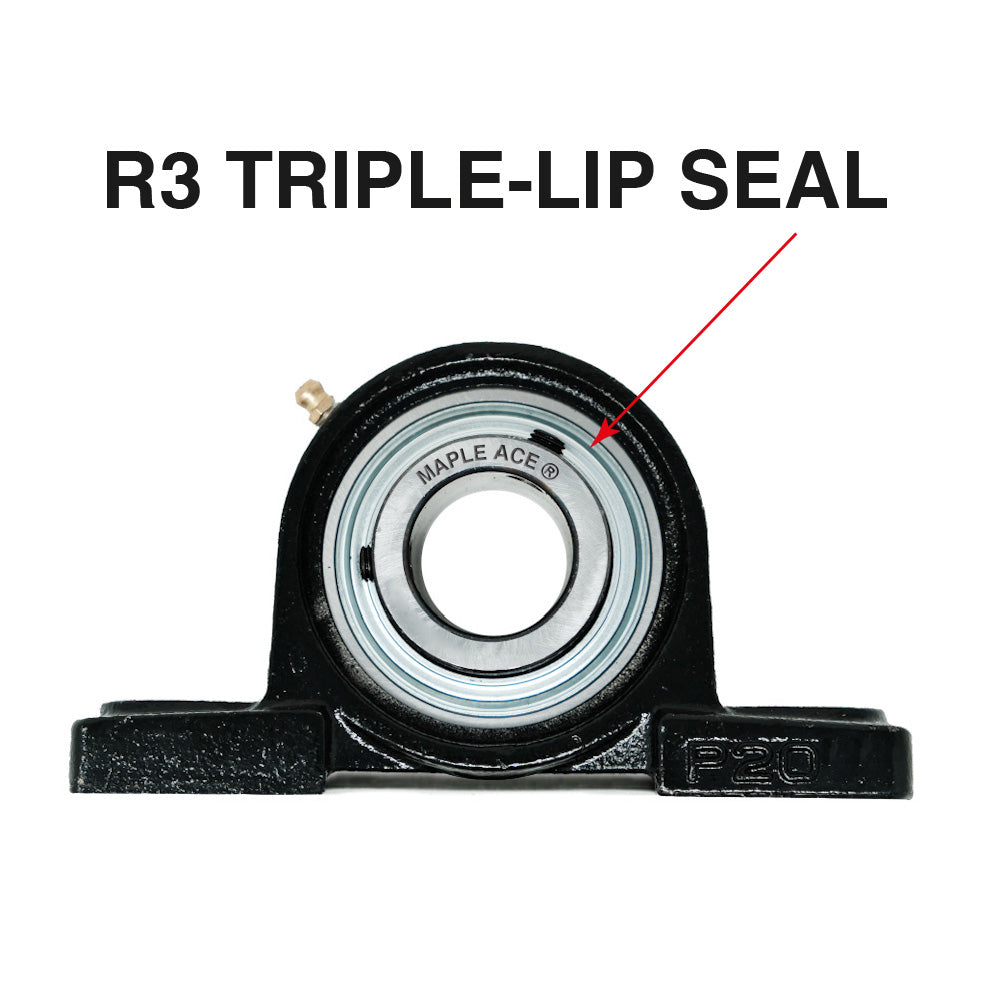

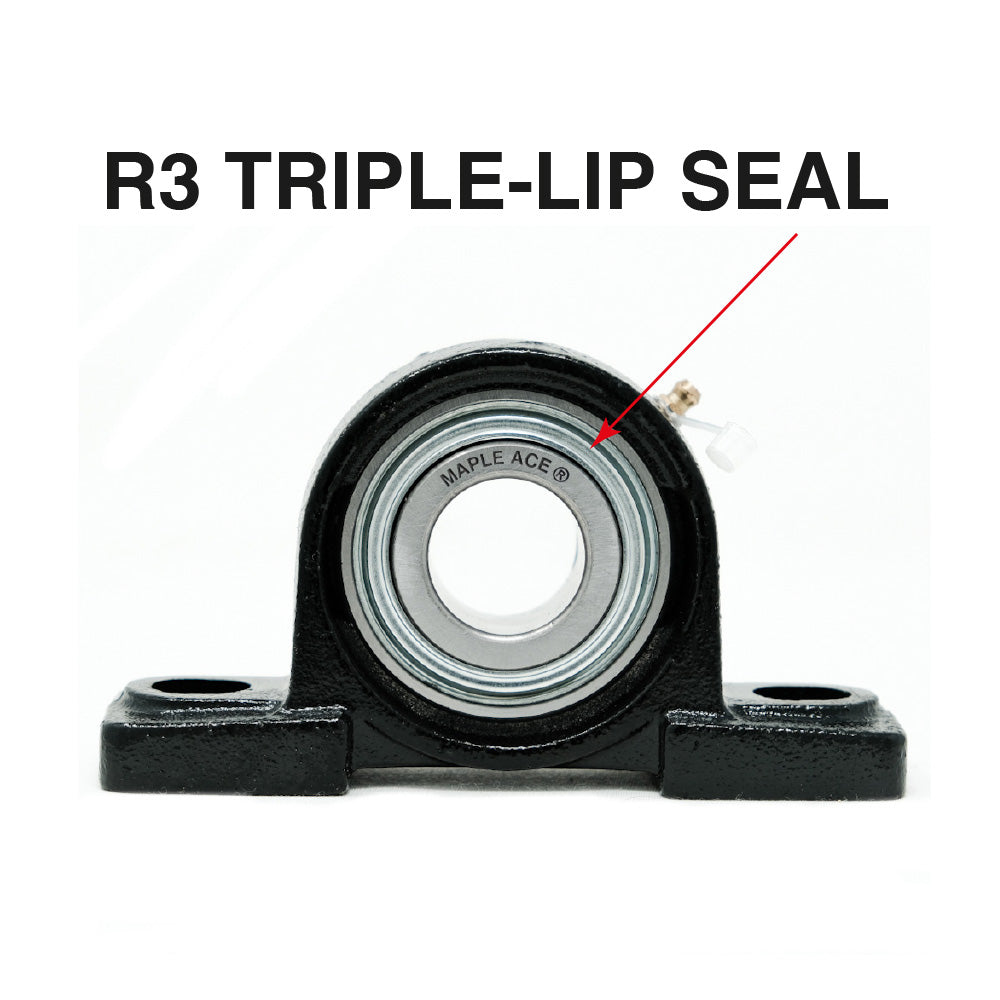

  • The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Has a Set Screw Lock on its surface for securing the shaft
  • The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes
  • Grease Fitting Offset on top to Relubricate the bearing

Item  UCP204-12R3
Series  UCP200
Bearing Number  UC204-12R3
Housing Number  P204
Bearing Inner Diameter Metric  19.05 mm
Bearing Inner Diameter Inch  3/4 in
Bearing Width Inner Ring Matric  31.00 mm
Bearing Width Inner Ring Inch  1.220 in
Bolt Size  3/8 in
Number of Bolts  2

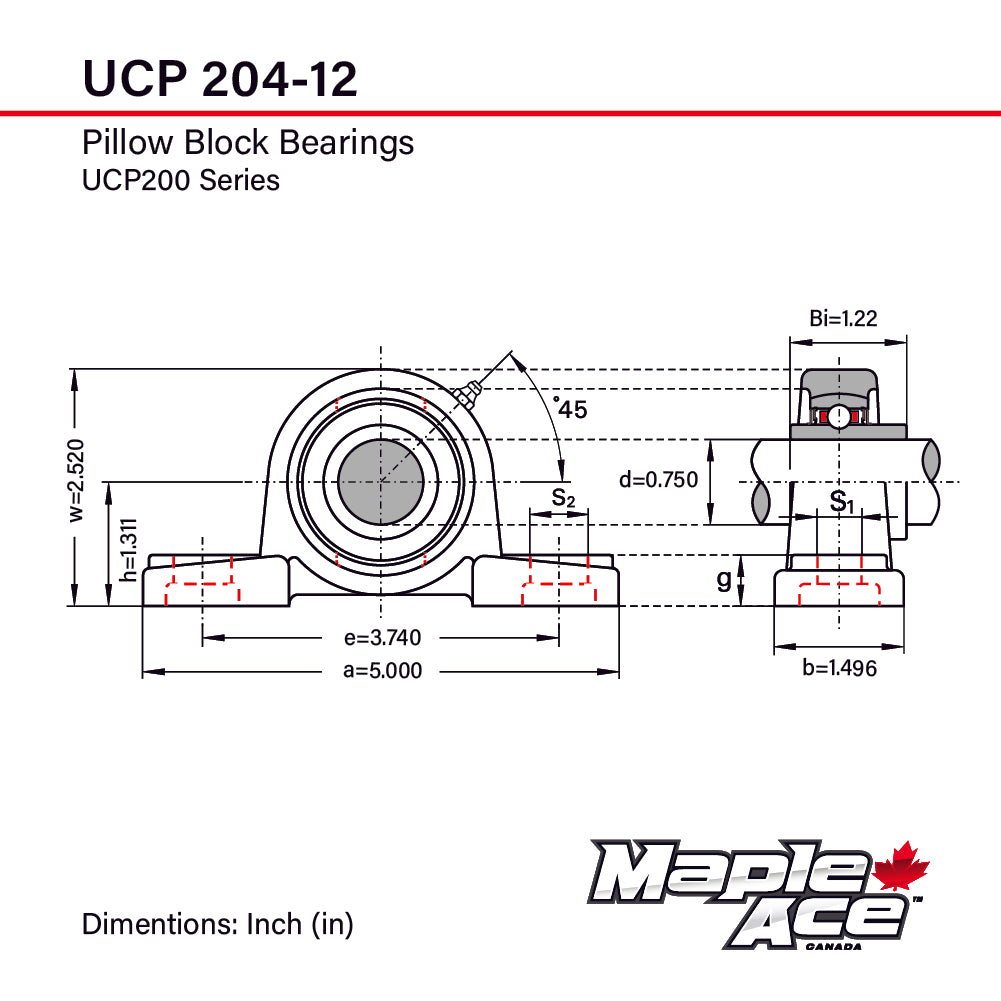

Bolt Hole Center to Center (e) Matric  95 mm
Bolt Hole Center to Center (e) Inch 3.74 in
Overall Length (a) Matric  127 mm
Overall Length (a) Inch  5.00 in
Overall Height (w) Matric  64 mm
Overall Height (w) Inch  2.520 in
Overall Width (b) Matric  38 mm
Overall Width (b) Inch  1.496 in
Mounting Surface to Shaft Center (h) Matric  33.3 mm
Mounting Surface to Shaft Center (h) Inch  1.311 in
Dynamic Load Rating Cr  12700 N
Static Load Rating Cor  6550 N
Limiting Speed  8500 r/min
Clearance  Normal
Bearing Sealing type  R3 Triple-Lip Seal
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  0.600 KG

You can use this PILLOW BLOCK BALL BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper

UCP204-12 Pillow Block Bearing 3/4" Bore, 2-Bolt, Self-Aligning, 3 Lips Seal

$12.99
