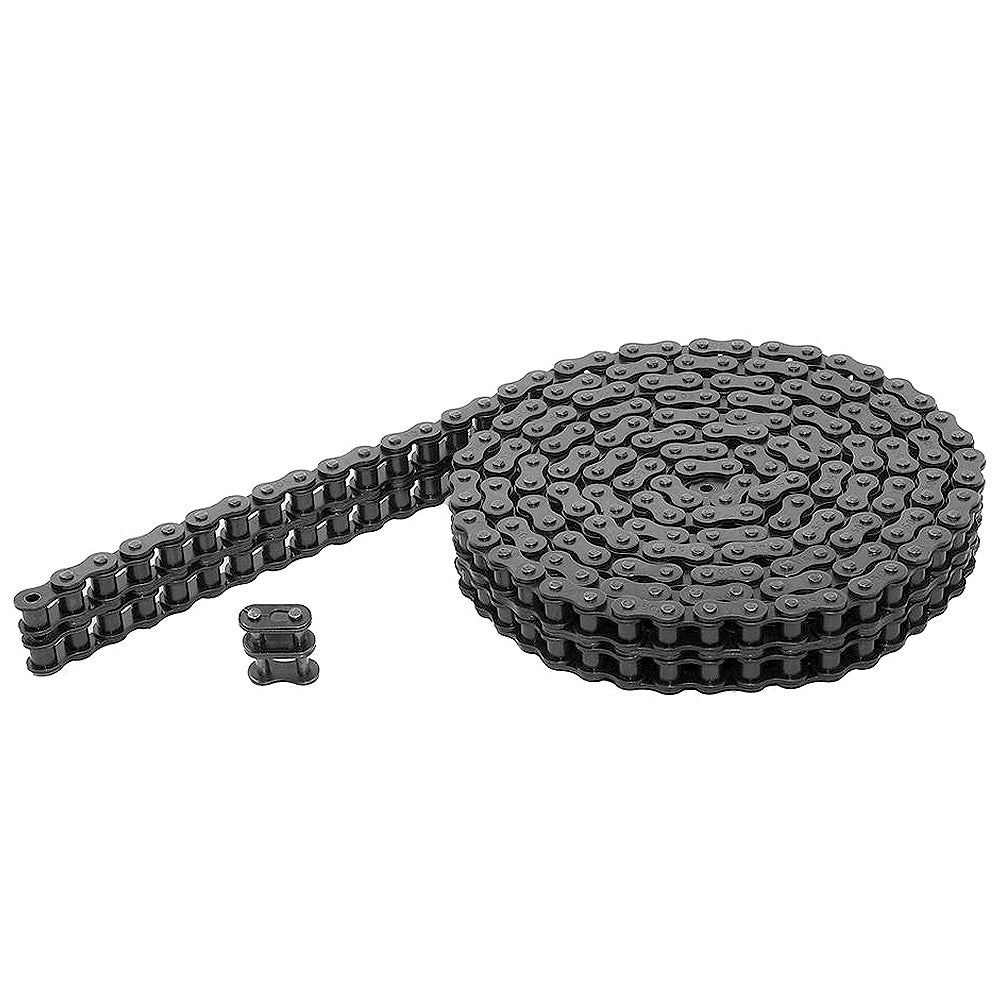

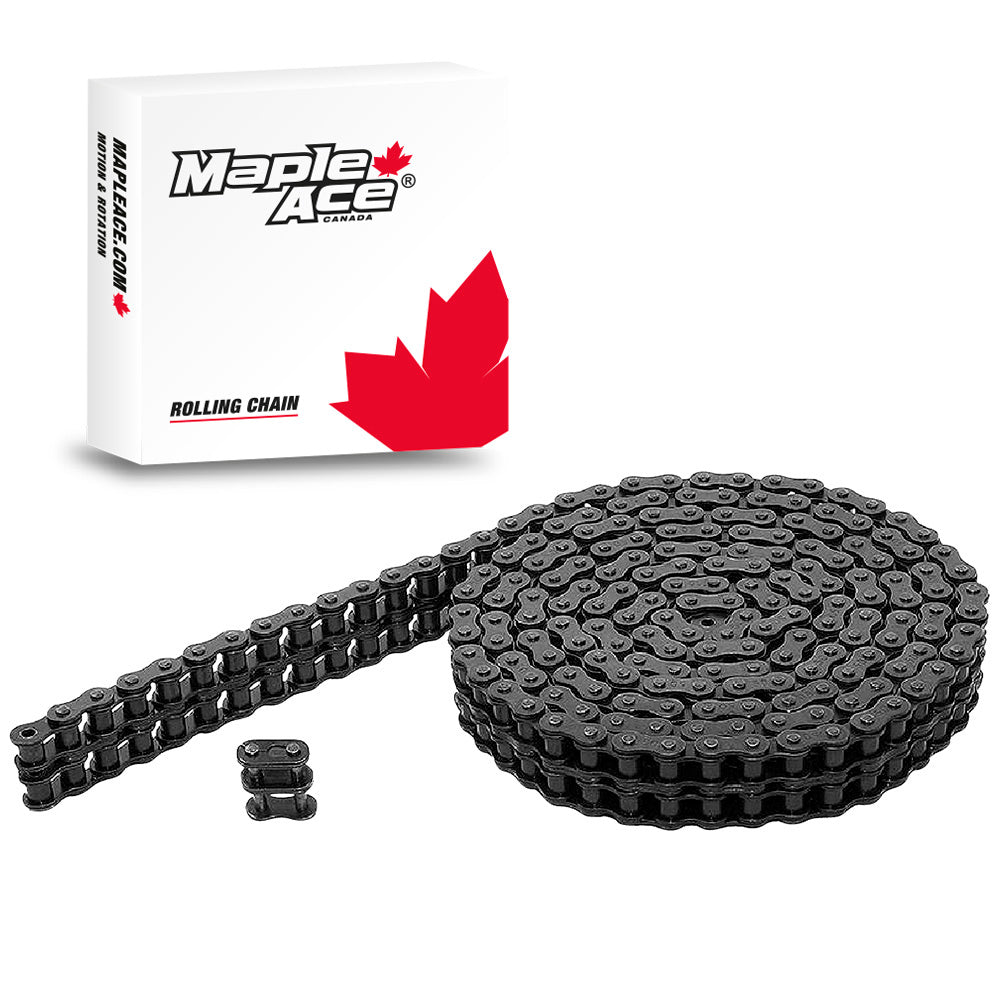

10B-2 Roller Chain Double Strand 5/8" Pitch 10 Feet plus Connecting Master Link
Regular price $67.95 USD
All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...
- Exclusively Produced by High Standard Factories
- Ideal for Replacement and OEM Applications
- All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
- DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
- 100% SATISFACTION GUARANTEED
Description
- All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
- Higher tensile strength for superior impact resistance
- Heat treatment to achieve ideal hardness
- Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
- The chain can be cut to desired length using a Chain Breaker
Item | 10B-2 |
BS/ISO Chain number | 10B-2 |
Number of Strands | 2 |
Chain Pitch Metric | 15.875 mm |
Chain Pitch Inch | 0.625 in |
Roller diameter d1 max Metric | 10.16 mm |
Roller diameter d1 max Inch | 0.4 in |
Width between inner plates b1 min Metric | 9.65 mm |
Width between inner plates b1 min Inch | 0.38 in |
Pin diameter d2 max Metric | 5.08 mm |
Pin diameter d2 max Inch | 0.2 in |
Pin length L max Metric | 36.1 mm |
Pin length L max Inch | 1.42 in |
Pin length Lc max Metric | 37.5 mm |
Pin length Lc max Inch | 1.48 in |
Plate height h2 max Metric | 14.7 mm |
Plate height h2 max Inch | 0.58 in |
Plate thickness T max Metric | 1.7 mm |
Plate thickness T max Inch | 0.07 in |
Ultimate Tensile Strength Q min | 44.5 kN |
Average Tensile Strength Q0 | 56.2 kN |
Weight (kg/m) | 1.840 kg |
Weight (lbs/ft) | 1.24 lbs |
Material | Carbon/Alloy Steel |
