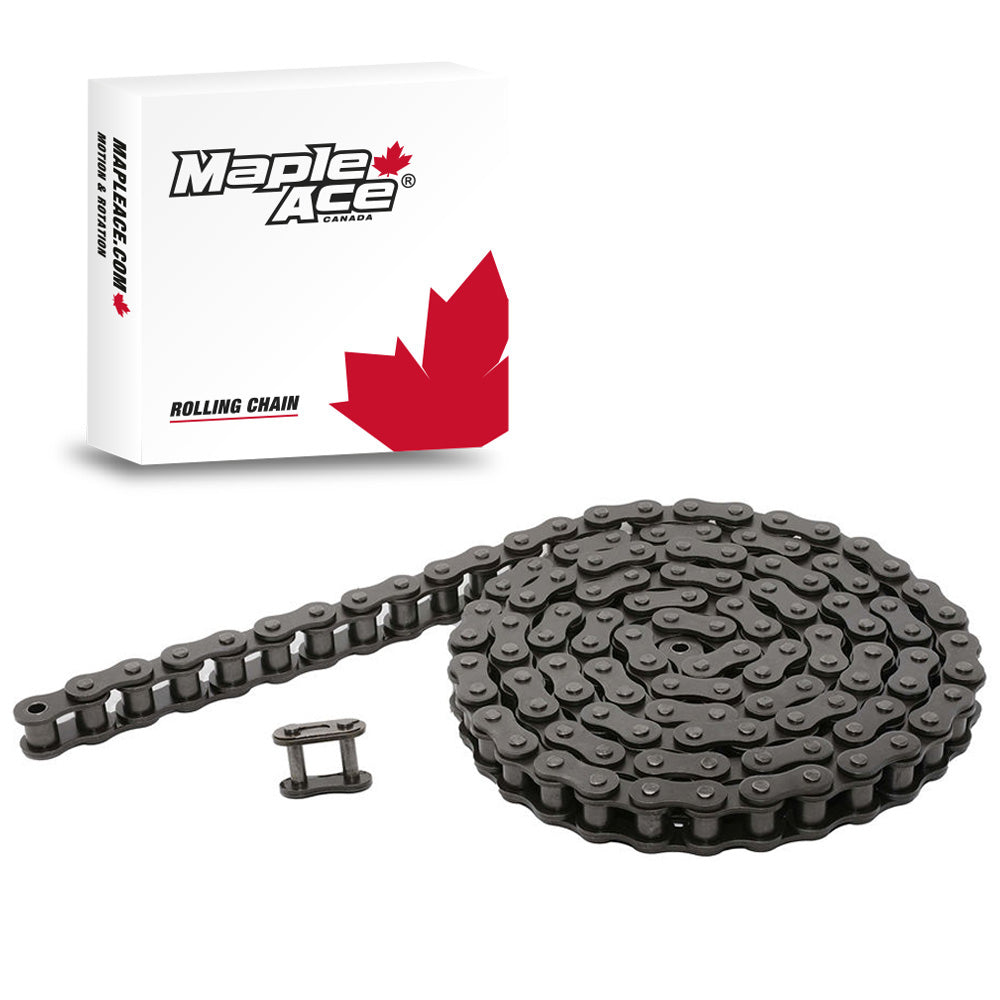

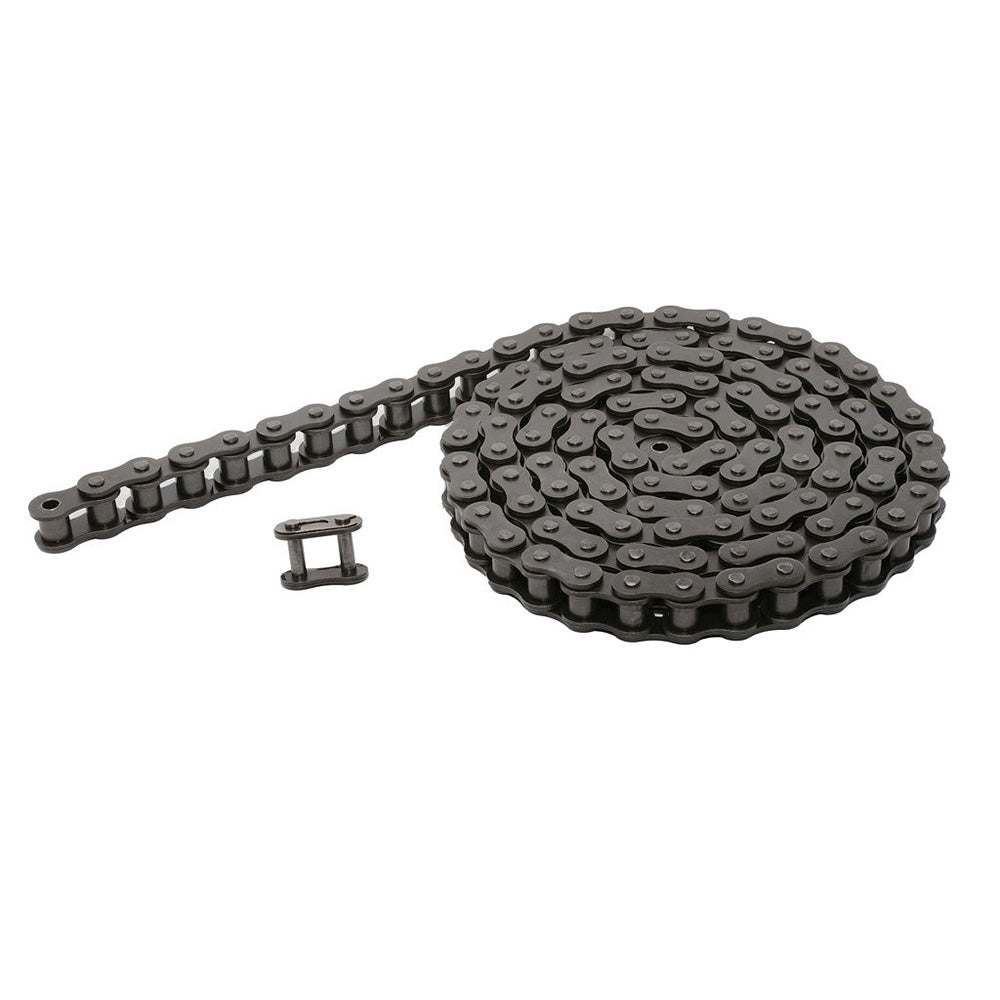

160H Heavy Duty Roller Chain 10 Feet plus Connecting Master Link
Regular price $349.49 USD
H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads,...
- 160H Heavy Duty Roller Chain is a 2 inch pitch ANSI Standard Roller Chain Single Strand
- Interchange to ANSI Chain No. 160H-1, BS/ISO No. 160AH-1, RS160H-1, PHC160H-1
- Heavy Duty Roller Chain Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
- Application: Heavy Industrial Machinery, Mining and Quarrying, Construction Machinery, Agricultural Equipment, Marine and Offshore Applications, Power Generation, Forestry and Lumber Mills, Cement and Aggregate Industry
- Specializing in the Exclusive Production of Chains with High Performance and Long Life.
Description
- H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads, and is suitable for lower operating speeds
- All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
- Higher tensile strength for superior impact resistance
- Heat treatment to achieve ideal hardness
- Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
- The chain can be cut to desired length using a Chain Breaker
Item | 160H-1 |
ANSI Chain number | 160H-1 |
BS/ISO Chain number | 32AH-1 |
Number of Strands | 1 |
Chain Pitch Metric | 50.8 mm |
Chain Pitch Inch | 1.75 in |
Roller diameter d1 max Metric | 2 mm |
Roller diameter d1 max Inch | 1.13 in |
Width between inner plates b1 min Metric | 31.55 mm |
Width between inner plates b1 min Inch | 1.24 in |
Pin diameter d2 max Metric | 14.27 mm |
Pin diameter d2 max Inch | 0.56 in |
Pin length L max Metric | 68.20 mm |
Pin length L max Inch | 2.69 in |
Pin length Lc max Metric | 73.00 mm |
Pin length Lc max Inch | 2.88 in |
Plate height h2 max Metric | 47.8 mm |
Plate height h2 max Inch | 1.88 in |
Plate thickness T max Metric | 7.2 mm |
Plate thickness T max Inch | 0.28 in |
Ultimate Tensile Strength Q min | 226.80 kN |
Average Tensile Strength Q0 | 285.8 kN |
Weight (kg/m) | 10.30 kg |
Weight (lbs/ft) | 6.92 lbs |
Material | Carbon/Alloy Steel |
- Heavy Industrial Machinery
- Mining and Quarrying
- Construction Machinery
- Agricultural Equipment
- Marine and Offshore Applications
- Power Generation
- Forestry and Lumber Mills
- Cement and Aggregate Industry
