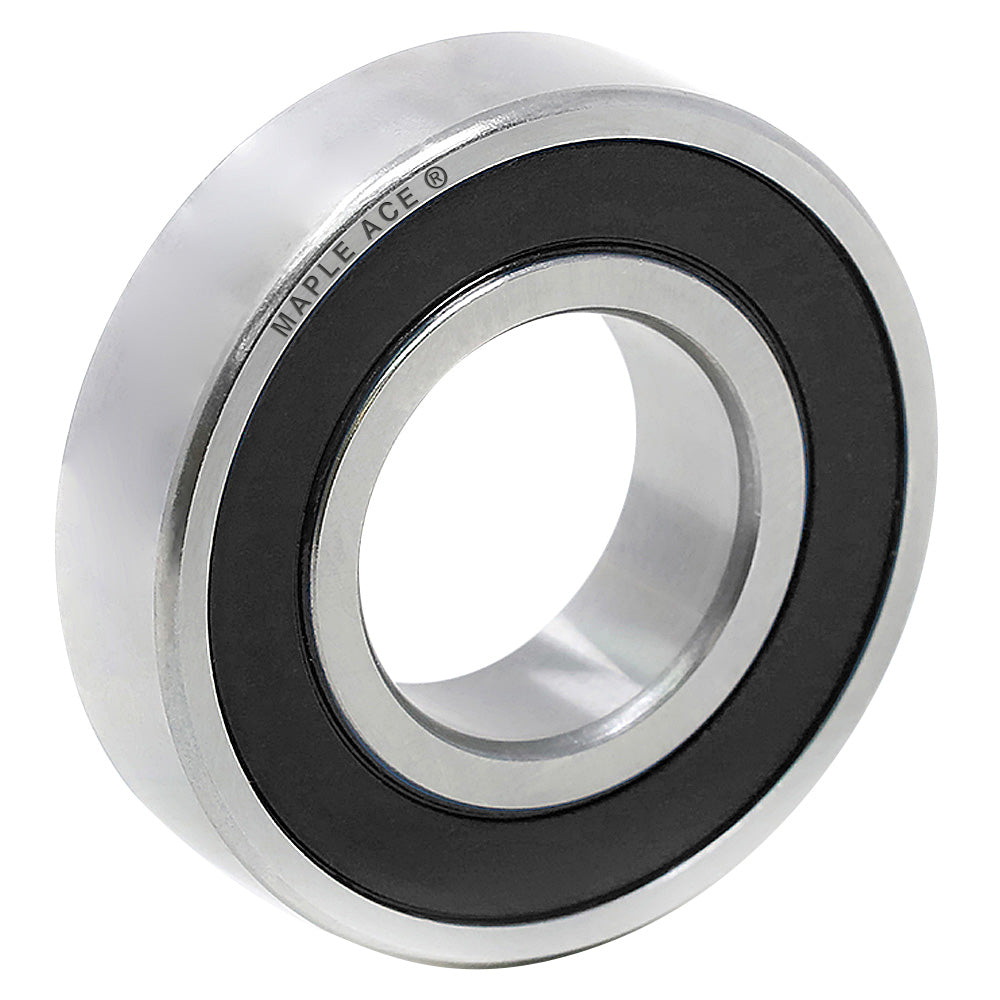

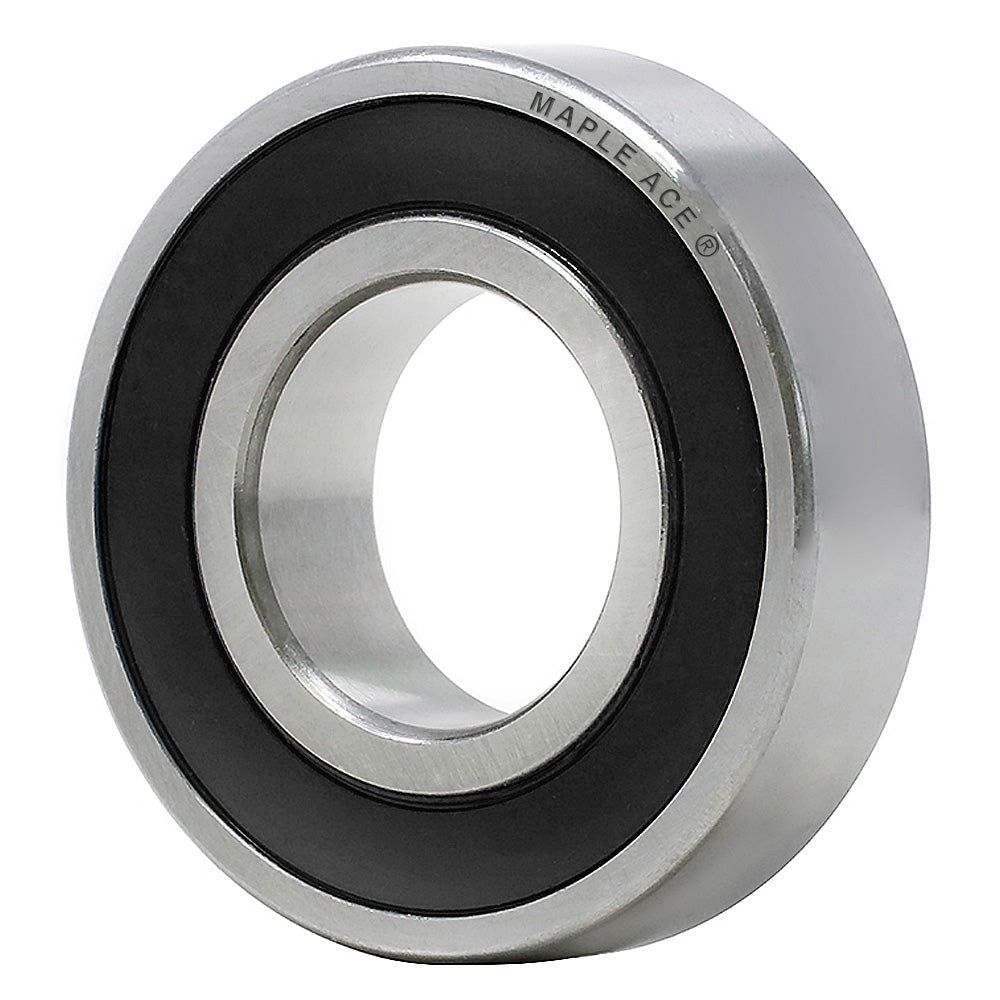

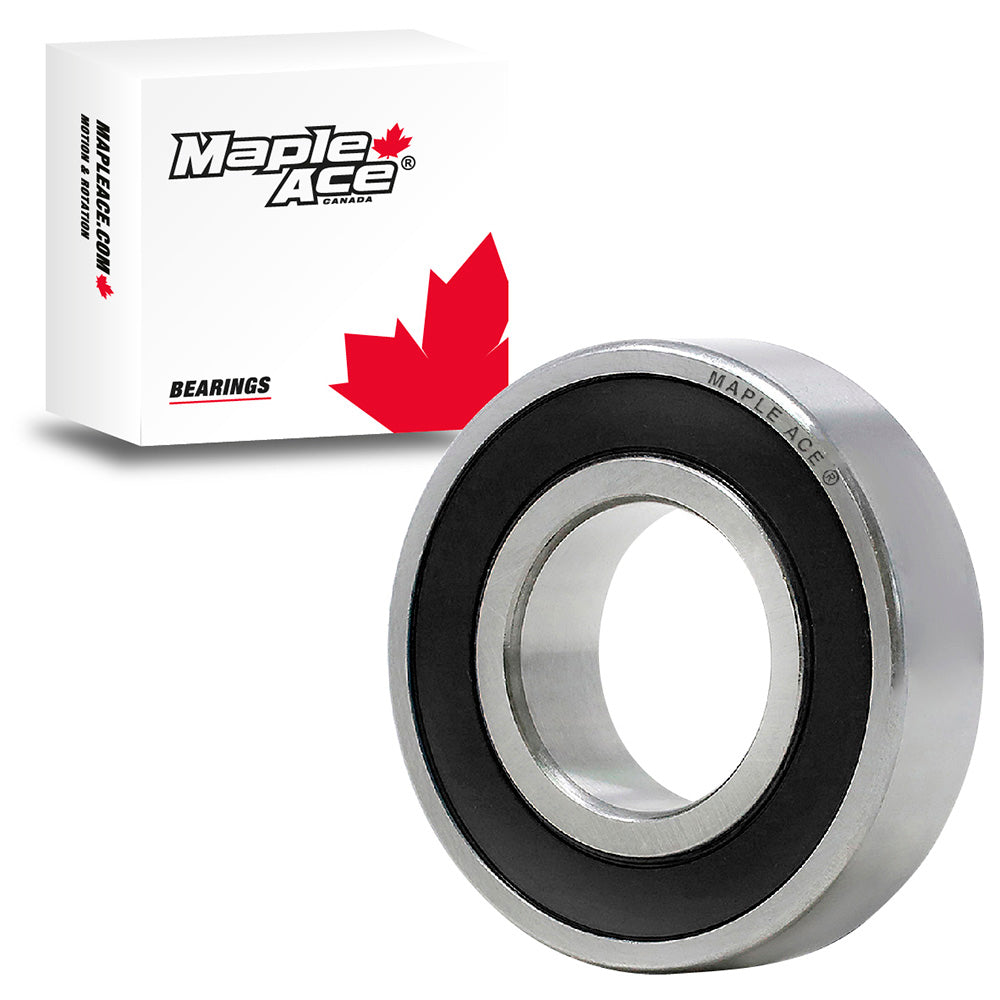

1621-2RS Ball Bearing 1/2" x 1-3/8" x 7/16" 1621 2RS Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $6.13 USD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 1621 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 1/2 in, Outside Diameter 1-3/8 in, Width 7/16 in. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 1621, 1621 RS, 22208-00, 22208-77, 22208-88, 1621NS, 1621DS, 1621DC, BR-21, BR-7721, BR-9921, 230-276, 05408000, 5408000, 05408000, 606000184, AM122108, JD8560, 1748544, 741-0133, 1185808, 1824002, 05408000
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 1621-2RS
Bearing Type 1600
Bore Diameter 12.7 mm
Outside Diameter 34.925 mm
Width 11.125 mm
Width Inner Ring 11.125 mm
Width Outer Ring 11.125 mm
Dynamic Load Rating Cr 8520 N
Static Load Rating Cor 3400 N
Limiting Speed 15000 r/min
Clearance Normal
Tolerance Inner Ring 0 to -7 μm
Tolerance Outer Ring 0 to -9 μm
Tolerance Classes P5
Cage Metal
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -30°C to +180°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 50 GR
1621 2RS, 1621-2RS

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Wheel Bearing
  • Automotive
  • ATV
  • Motorcycle
  • Snowmobile
  • Go-KART
  • Marine
  • Appliances
  • Sporting Machines
  • Industrial Applications
  • Electric Motor
  • HVAC
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
  • 1621-2RS Ball Bearing 1/2" x 1-3/8" x 7/16" 1621 2RS Rubber Sealed
