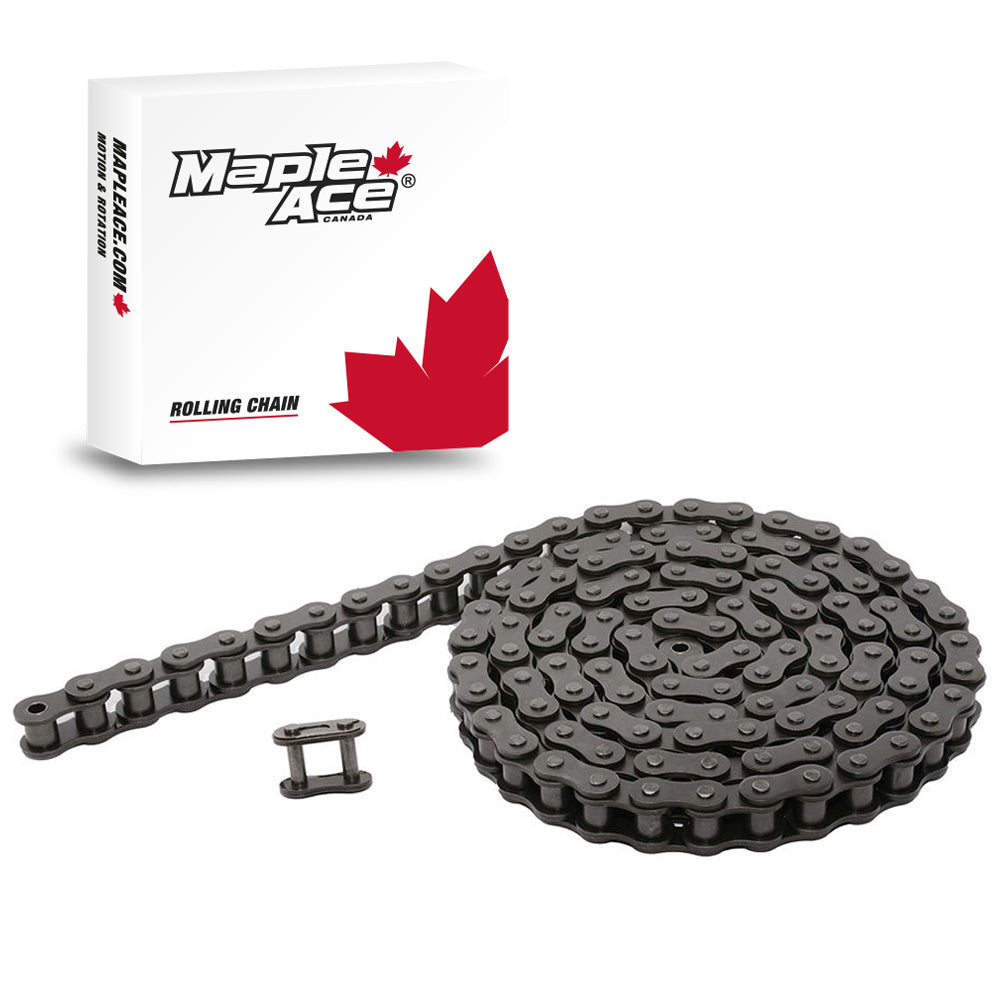

20B Roller Chain 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

Regular price $119.95 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

  • 20B Roller Chain is a 1-1/4 inch pitch BS Standard Roller Chain Single Strand
  • Interchange to BS/ISO No. 20B-1, RS20B-1, PHC20B-1
  • The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Industrial Machinery, Conveyor Systems, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Power Transmission Systems, Forestry and Lumber Mills, Cement and Aggregate Industry
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

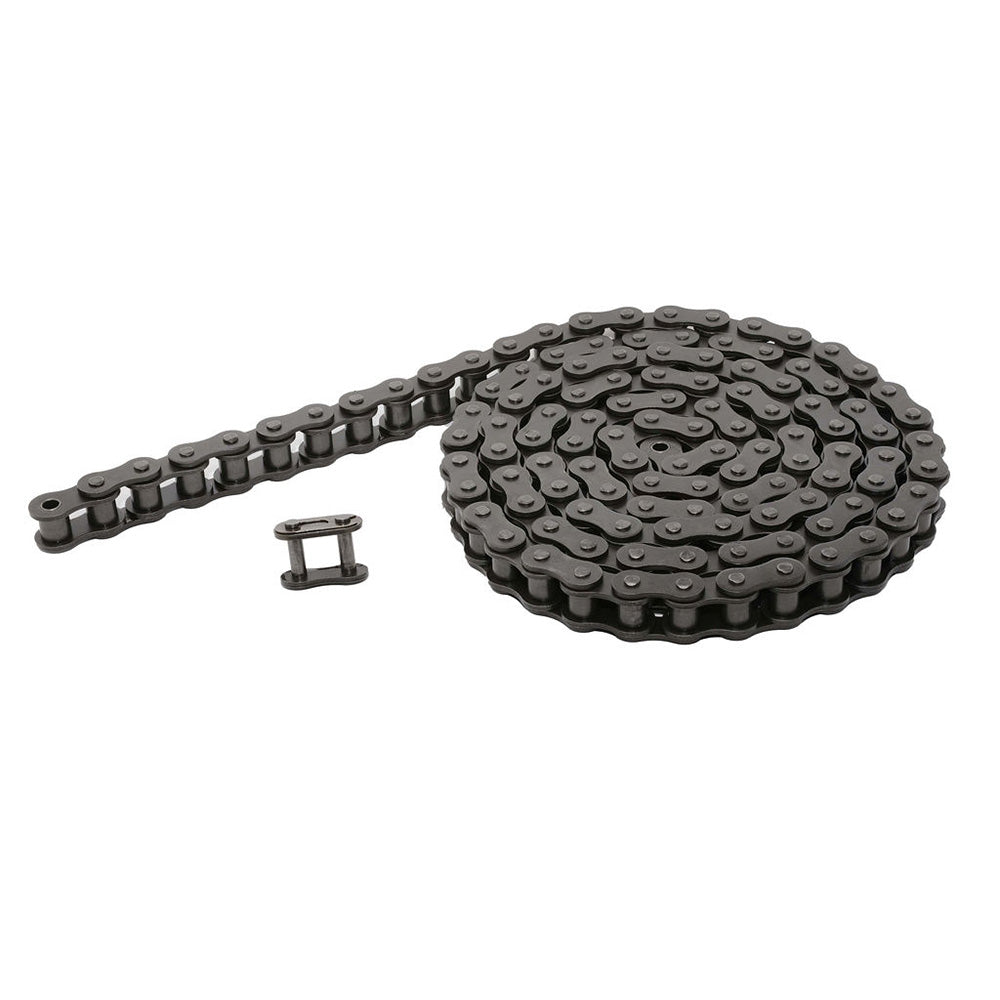

  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  20B-1
BS/ISO Chain number  20B-1
Number of Strands  1
Chain Pitch Metric  31.75 mm
Chain Pitch Inch  1.25 in
Roller diameter d1 max Metric  19.05 mm
Roller diameter d1 max Inch  0.75 in
Width between inner plates b1 min Metric  19.56 mm
Width between inner plates b1 min Inch  0.77 in
Pin diameter d2 max Metric  10.19 mm
Pin diameter d2 max Inch  0.4 in
Pin length L max Metric  41.30 mm
Pin length L max Inch  1.63 in
Pin length Lc max Metric  45.0 mm
Pin length Lc max Inch  1.77 in
Plate height h2 max Metric  26.4 mm
Plate height h2 max Inch  1.04 in
Plate thickness T max Metric  3.5 mm
Plate thickness T max Inch  0.14 in
Ultimate Tensile Strength Q min  95.0 kN
Average Tensile Strength Q0  16.07 kN
Weight (kg/m)  3.700 kg
Weight (lbs/ft)  2.49 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Conveyor Systems
  • Packaging Equipment
  • Agricultural Equipment
  • Construction and Mining Equipment
  • Material Handling Equipment
  • Food and Beverage Industry
  • Textile Industry
  • Power Transmission Systems
  • Automated Manufacturing Systems
  • Forestry and Lumber Mills
  • Cement and Aggregate Industry
