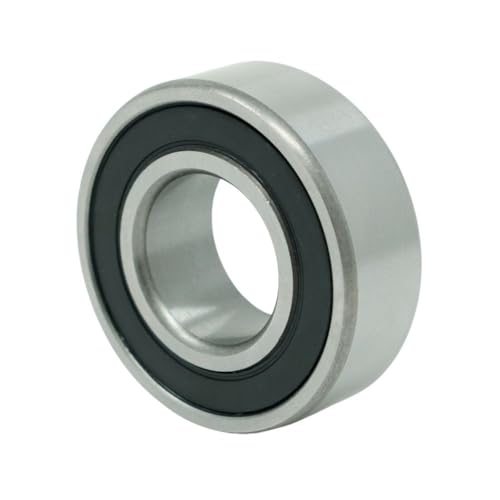

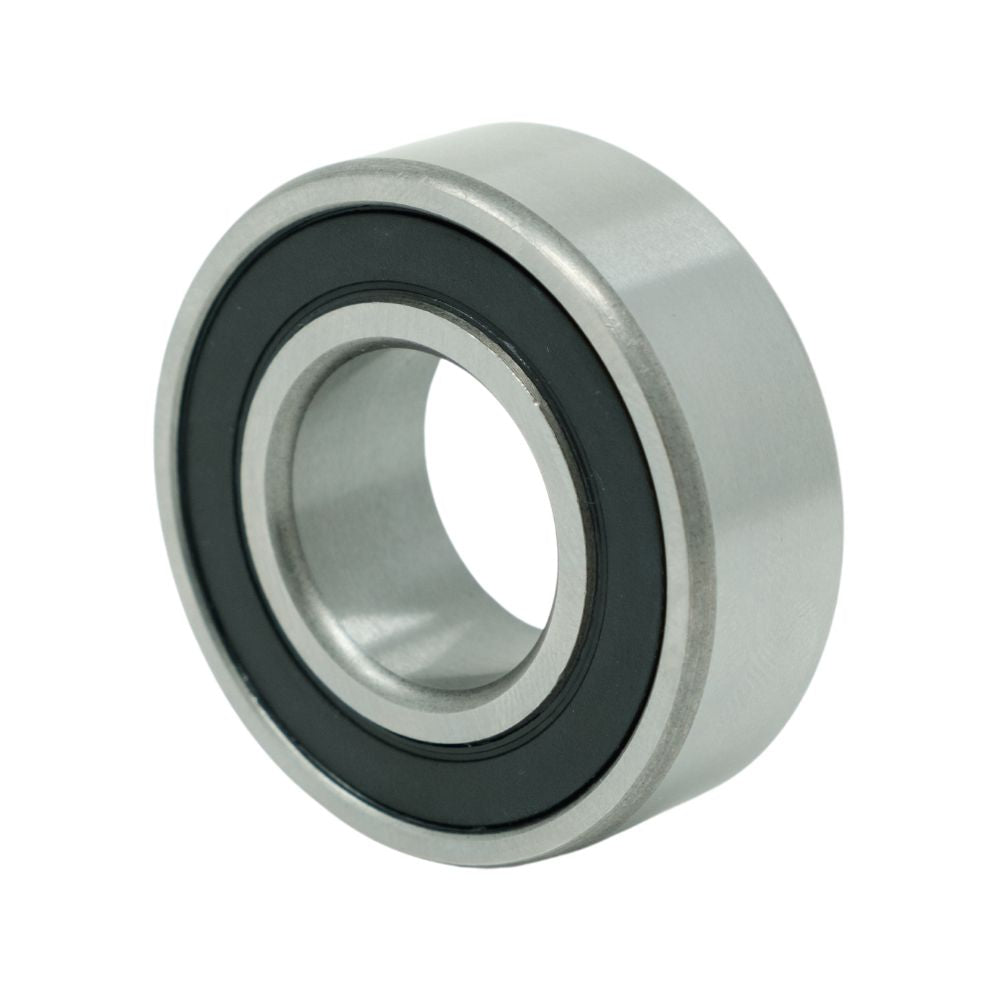

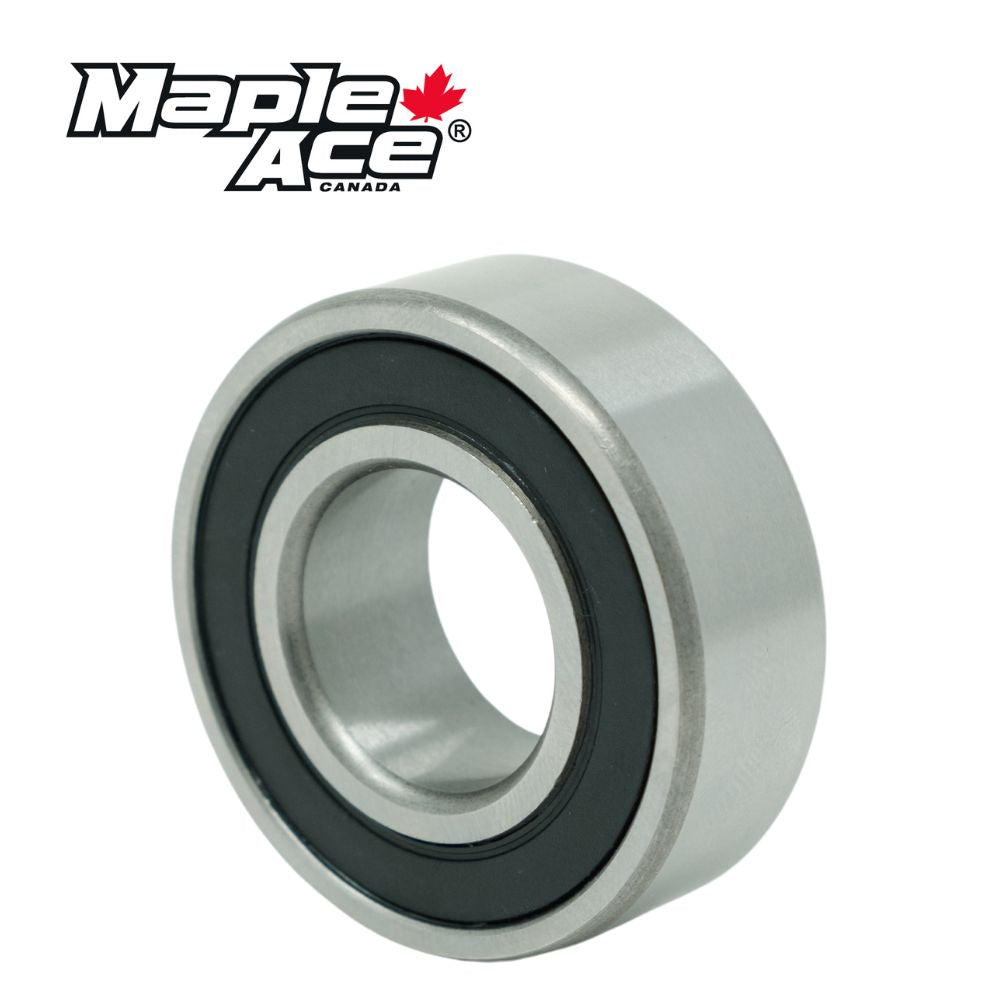

2205-2RS, 2205-2RSR-TVH, 2205 E-2RS1TN9 Self-aligning Ball Bearing 25x52x18mm

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $15.95 USD

Self-aligning ball bearings with seals on both sides. Designed with: Two rows of balls A common sphered raceway in the outer ring...

  • 2205-2RS Self-aligning Ball Bearing dimensions: Bore Diameter 25mm, Outside Diameter 52mm, Width 18mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 2205, 2205 TV, 2205-TVH, 2205-2RS-TVH, 2205 ETN9, 2205 E-2RS1TN9, 2205 TNG, 2205-2RSTNG, 2205 EEG15
  • This self-aligning ball bearing has two rows of balls and a common spherical outer raceway. It also has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Self-aligning ball bearings with seals on both sides.
  • Designed with:
    • Two rows of balls
    • A common sphered raceway in the outer ring
    • Two deep, uninterrupted raceway grooves in the inner ring
  • Insensitive to angular misalignment of the shaft relative to the housing, ideal for compensating for shaft deflection or misalignment.
  • Key performance benefits:
    • Accommodate static and dynamic misalignment
    • Excellent high-speed performance
    • Excellent light load performance
    • Low friction for smooth, efficient operation
  • Integral sealing:
    • Keeps lubricant within the bearing
    • Prevents contaminants from entering
    • Reduces maintenance needs and prolongs bearing service life

Item  2205 TV-2RS
Bearing Type  Self-aligning ball bearing
Bearing Type  2200
Bore Diameter  25.00mm
Outside Diameter  52.00mm
Width  18.00mm
Width Inner Ring  18.00mm
Width Outer Ring  18.00mm
Dynamic Load Rating Cr  14300 N
Static Load Rating Cor  4000 N
Limiting Speed  9000 r/min
Clearance  CN
Tolerance Classes  P5
Cage  Non-metallic
Closures  Seal on both sides
Lubrication Type  Grease Chevron
Lubrication Temperature  -30°C to +180°C
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  0.160 KG
FAG 2205-2RSR-TVH
Koyo 2205 2RS
NSK 2205-2RSTNG
NTN 2205 LLU
SKF 2205 E-2RS1TN9

2205-2RS, 2205-2RSR-TVH, 2205 E-2RS1TN9 Self-aligning Ball Bearing 25x52x18mm

Regular price $15.95
