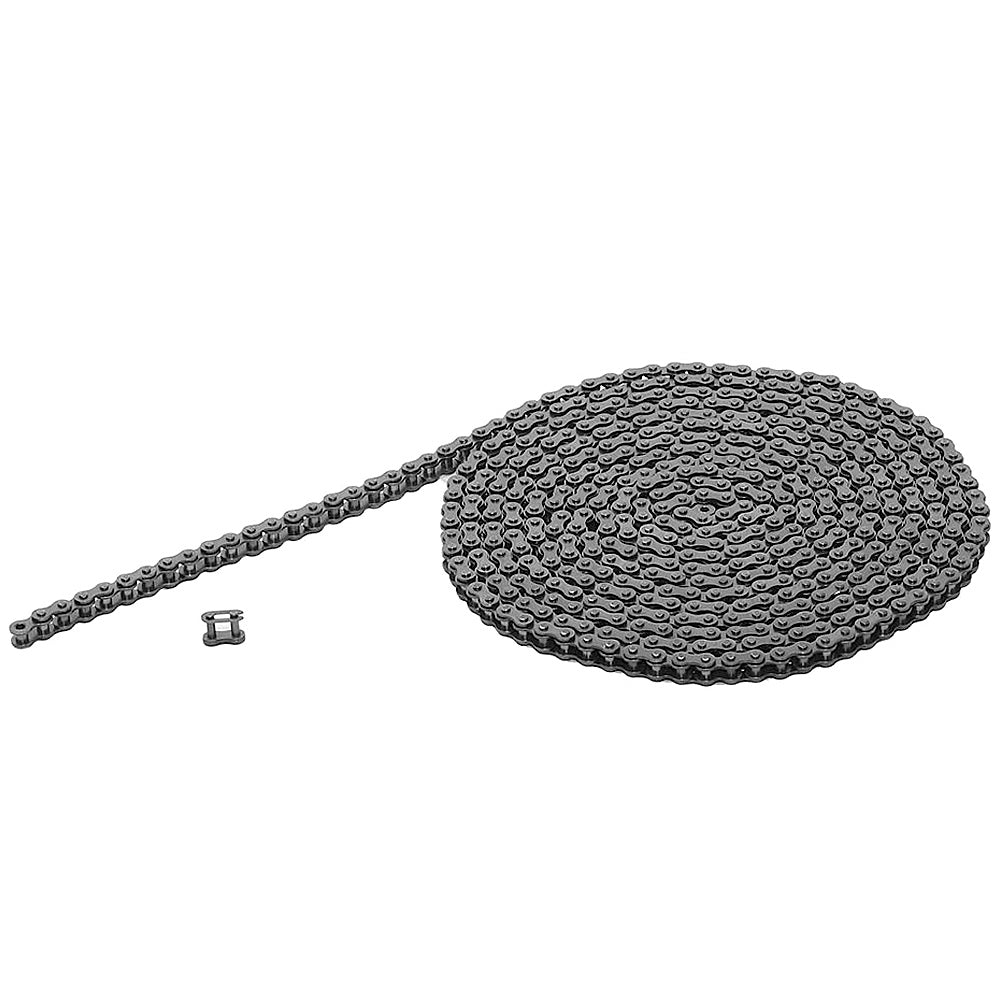

#25 Roller Chain 3 Feet 144 Links plus Connecting Link
#25 Roller Chain 3 Feet 144 Links plus Connecting Link

#25 Roller Chain 3 Feet 144 Links plus Connecting Link

: In stock

: Chain

: MAPLE ACE

$9.95 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

  • 25 Roller Chain is a 1/4 inch pitch ANSI Standard Roller Chain Single Strand
  • Interchange to ANSI Chain No. 25-1, BS/ISO No. 04C-1, RS25-1, PHC25-1
  • The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Medical Devices, Printers and Copiers, Robotics and Automation, Bicycles and Small Vehicles, Sporting Machines, Packaging Machines, Model Engineering and DIY Projects, Textile Industry, Pharmaceutical Equipment...etc
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.
Add to wishlist

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

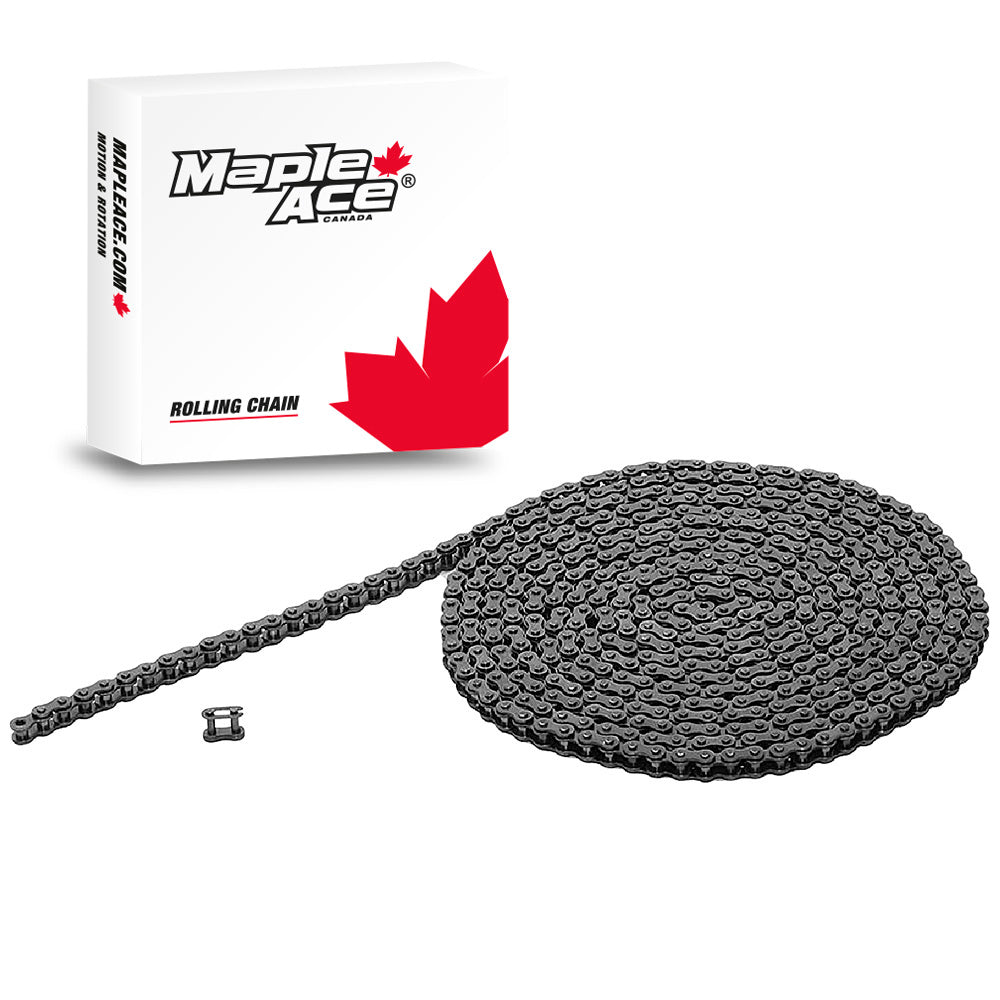

  • Every package contains a 3-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  25-1
ANSI Chain number  25-1
BS/ISO Chain number  04C-1
Number of Strands  1
Chain Pitch Metric  6.35 mm
Chain Pitch Inch  0.25 in
Roller diameter d1 max Metric  3.3 mm
Roller diameter d1 max Inch  0.13 in
Width between inner plates b1 min Metric  3.18 mm
Width between inner plates b1 min Inch  0.13 in
Pin diameter d2 max Metric  2.31 mm
Pin diameter d2 max Inch  0.09 in
Pin length L max Metric  7.90 mm
Pin length L max Inch  0.31 in
Pin length Lc max Metric  8.40 mm
Pin length Lc max Inch  0.33 in
Plate height h2 max Metric  6 mm
Plate height h2 max Inch  0.24 in
Plate thickness T max Metric  0.8 mm
Plate thickness T max Inch  0.03 in
Ultimate Tensile Strength Q min  3.5 kN
Average Tensile Strength Q0  4.6 kN
Weight (kg/m)  0.15 kg
Weight (lbs/ft)  0.1 lbs
Material  Carbon/Alloy Steel
  • Medical Devices
  • Printers and Copiers
  • Robotics and Automation
  • Bicycles and Small Vehicles
  • Sporting Machines
  • Packaging Machines
  • Model Engineering and DIY Projects
  • Textile Industry
  • Pharmaceutical Equipment
