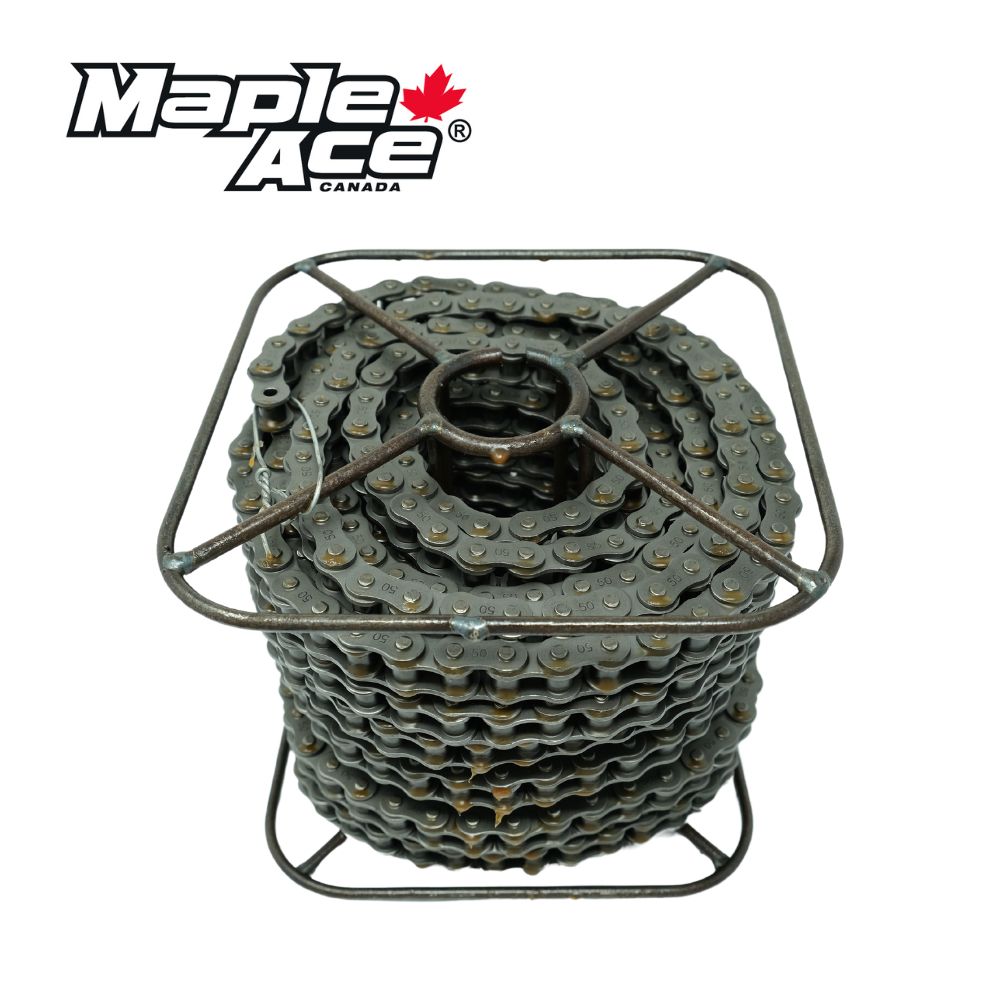

#35 Roller Chain 100 Feet plus 10 Connecting Master Links

#35 Roller Chain 100 Feet plus 10 Connecting Master Links

Availability: In stock

Product type: Chain

Vendor: MAPLE ACE

Regular price $139.95 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

35 Roller Chain is a 3/8 inch pitch ANSI Standard Roller Chain Single Strand
Interchange to ANSI Chain No. 35-1, BS/ISO No. 06C-1, RS35-1, PHC35-1
The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
Application: Conveyor Systems, Printers, Copiers, Go-Kart, Bicycles, Motorcycles, Sporting Machines, Hobbyist and DIY Projects, Garage Door Openers, Window Regulators, Textile, Fabric, Medical Devices, Packaging Machines..etc
Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness
Every package contains a 100-feet chain and 10 connecting links. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Specifications
Application

Item	35-1
ANSI Chain number	35-1
BS/ISO Chain number	06C-1
Number of Strands	1
Chain Pitch Metric	9.53 mm
Chain Pitch Inch	0.38 in
Roller diameter d1 max Metric	5.08 mm
Roller diameter d1 max Inch	0.2 in
Width between inner plates b1 min Metric	4.77 mm
Width between inner plates b1 min Inch	0.19 in
Pin diameter d2 max Metric	3.58 mm
Pin diameter d2 max Inch	0.14 in
Pin length L max Metric	12.40 mm
Pin length L max Inch	0.49 in
Pin length Lc max Metric	13.17 mm
Pin length Lc max Inch	0.52 in
Plate height h2 max Metric	9 mm
Plate height h2 max Inch	0.35 in
Plate thickness T max Metric	1.3 mm
Plate thickness T max Inch	0.05 in
Ultimate Tensile Strength Q min	7.9 kN
Average Tensile Strength Q0	10.8 kN
Weight (kg/m)	0.33 kg
Weight (lbs/ft)	0.22 lbs
Material	Carbon/Alloy Steel
