#35 Roller Chain 3 Feet plus Connecting Master Link

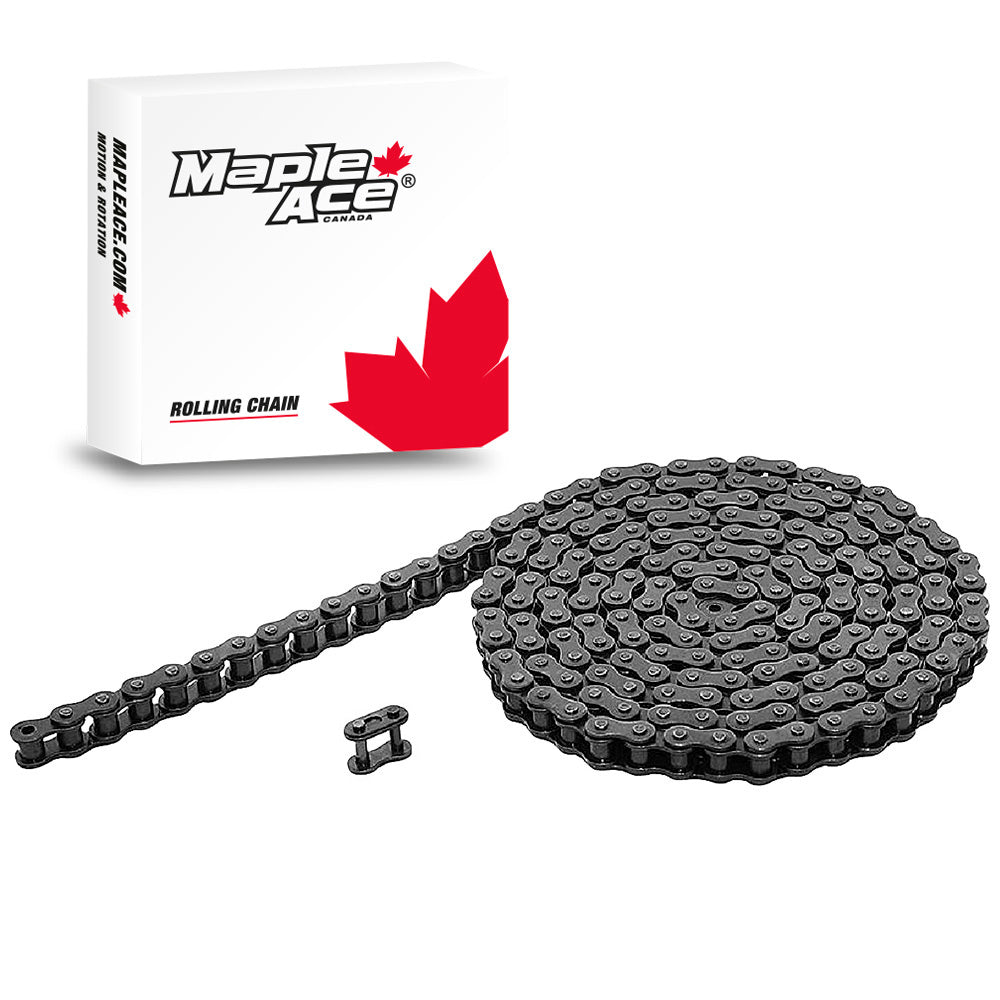

#35 Roller Chain 3 Feet plus Connecting Master Link

#35 Roller Chain 3 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

$9.69 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

  • 35 Roller Chain is a 3/8 inch pitch ANSI Standard Roller Chain Single Strand
  • Interchange to ANSI Chain No. 35-1, BS/ISO No. 06C-1, RS35-1, PHC35-1
  • The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Conveyor Systems, Printers, Copiers, Go-Kart, Bicycles, Motorcycles, Sporting Machines, Hobbyist and DIY Projects, Garage Door Openers, Window Regulators, Textile, Fabric, Medical Devices, Packaging Machines..etc
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.
Add to wishlist

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

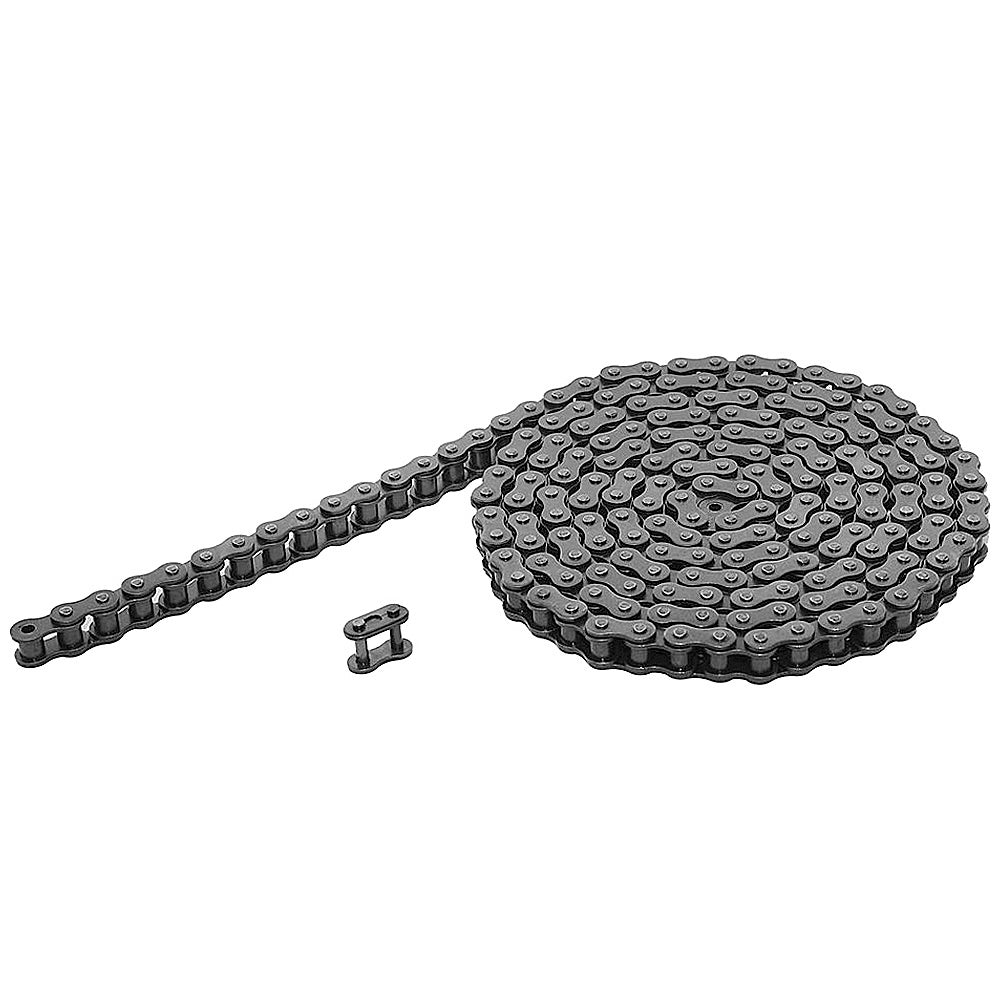

  • Every package contains a 3-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  35-1
ANSI Chain number  35-1
BS/ISO Chain number  06C-1
Number of Strands  1
Chain Pitch Metric  9.53 mm
Chain Pitch Inch  0.38 in
Roller diameter d1 max Metric  5.08 mm
Roller diameter d1 max Inch  0.2 in
Width between inner plates b1 min Metric  4.77 mm
Width between inner plates b1 min Inch  0.19 in
Pin diameter d2 max Metric  3.58 mm
Pin diameter d2 max Inch  0.14 in
Pin length L max Metric  12.40 mm
Pin length L max Inch  0.49 in
Pin length Lc max Metric  13.17 mm
Pin length Lc max Inch  0.52 in
Plate height h2 max Metric  9 mm
Plate height h2 max Inch  0.35 in
Plate thickness T max Metric  1.3 mm
Plate thickness T max Inch  0.05 in
Ultimate Tensile Strength Q min  7.9 kN
Average Tensile Strength Q0  10.8 kN
Weight (kg/m)  0.33 kg
Weight (lbs/ft)  0.22 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Conveyor Systems
  • Printers, Copiers
  • Go-Kart
  • Bicycles
  • Motorcycles
  • Sporting Machines
  • Hobbyist and DIY Projects
  • Garage Door Openers
  • Window Regulators
  • Textile Industry
  • Medical Devices
  • Packaging Machines
  • Agricultural Equipment

#35 Roller Chain 3 Feet plus Connecting Master Link

$9.69
