#35-2 Roller Chain Double Strand 10 Feet plus Connecting Master Link
#35-2 Roller Chain Double Strand 10 Feet plus Connecting Master Link

#35-2 Roller Chain Double Strand 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

$29.89 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

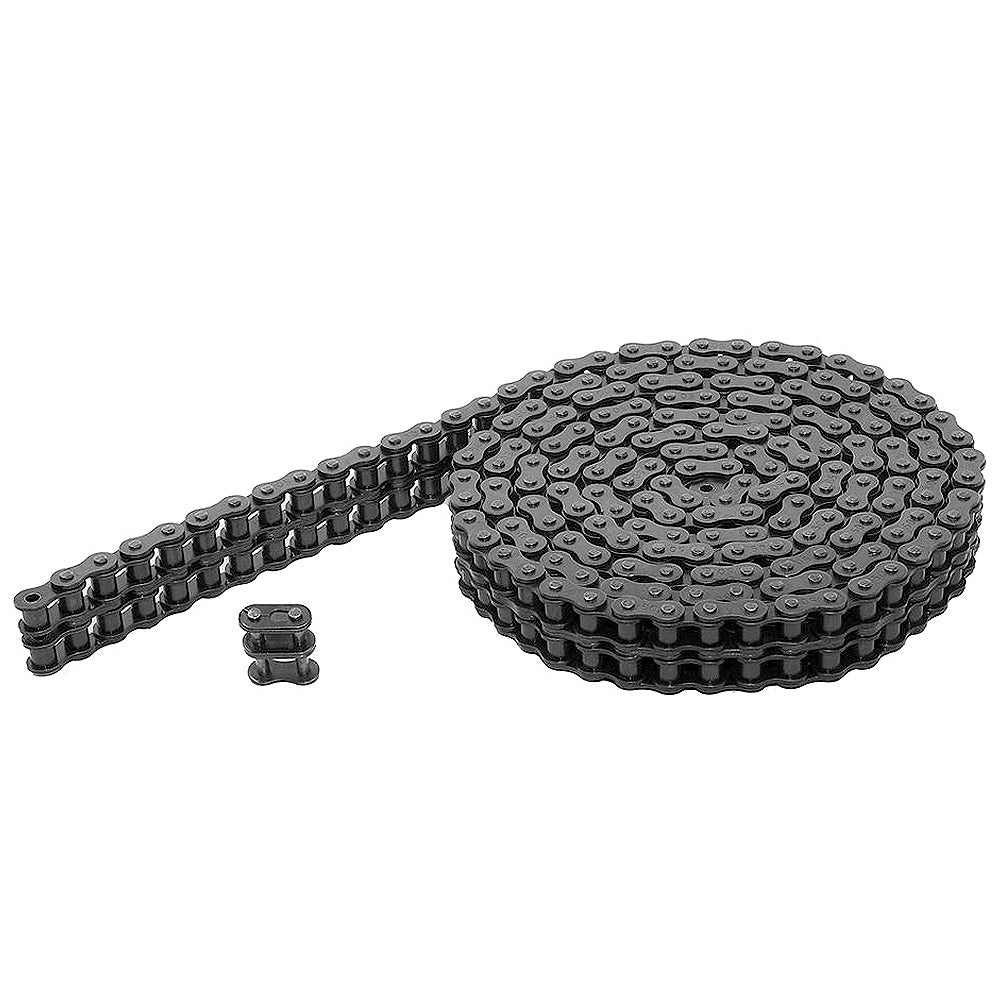

  • 35-2 Roller Chain is a 3/8 inch pitch ANSI Standard Roller Chain Duplex Double Strand
  • Interchange to ANSI Chain No. 35-2, BS/ISO No. 06C-2, RS35-1, PHC35-2
  • The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Industrial Machinery, Printing and Paper Processing, Textile Industry, Robotic Systems, Assembly Lines, Agricultural Machinery, Automotive, Motorcycles, Food and Beverage Industry, Small-Scale Material Handling
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.
Add to wishlist

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

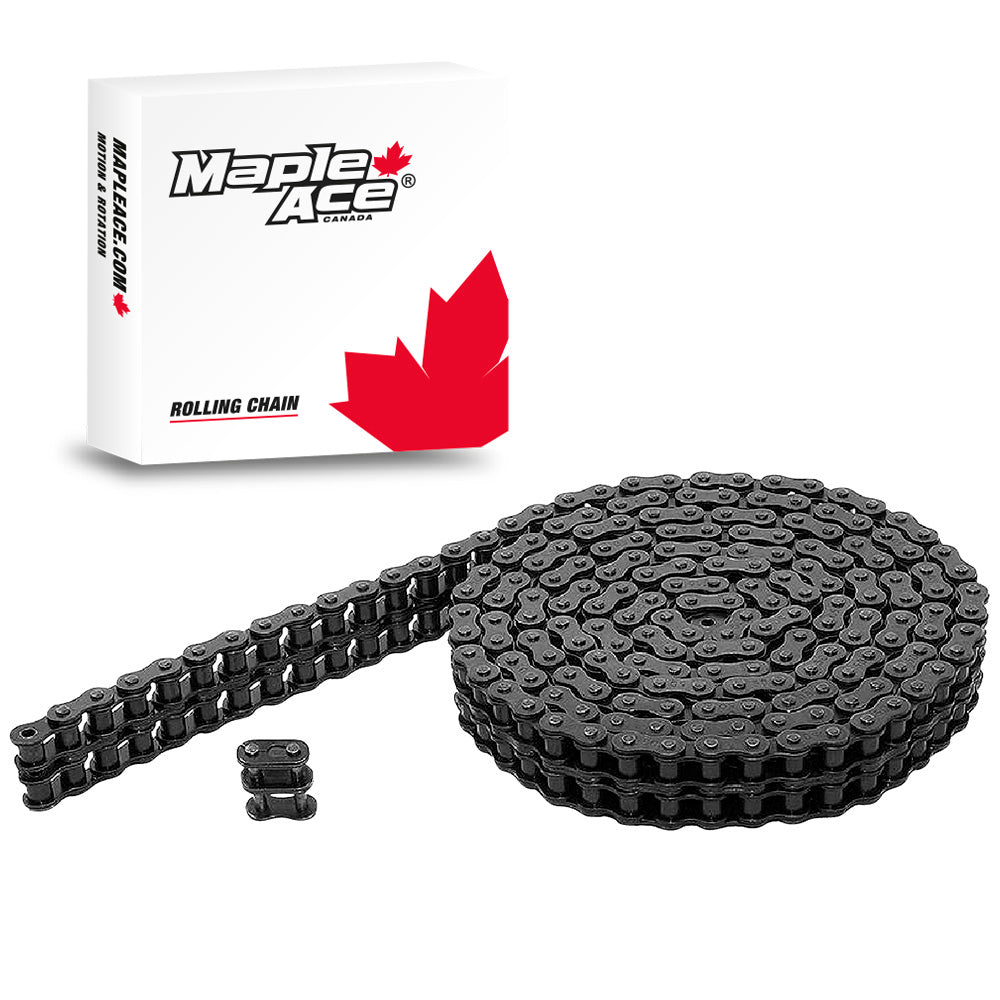

  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  35-2
ANSI Chain number  35-2
BS/ISO Chain number  06C-2
Number of Strands  2
Chain Pitch Metric  9.53 mm
Chain Pitch Inch  0.38 in
Roller diameter d1 max Metric  5.08 mm
Roller diameter d1 max Inch  0.2 in
Width between inner plates b1 min Metric  4.77 mm
Width between inner plates b1 min Inch  0.19 in
Pin diameter d2 max Metric  3.58 mm
Pin diameter d2 max Inch  0.14 in
Pin length L max Metric  22.50 mm
Pin length L max Inch  0.88 in
Pin length Lc max Metric  23.30 mm
Pin length Lc max Inch  0.92 in
Plate height h2 max Metric  9 mm
Plate height h2 max Inch  0.35 in
Plate thickness T max Metric  1.3 mm
Plate thickness T max Inch  0.05 in
Ultimate Tensile Strength Q min  15.8 kN
Average Tensile Strength Q0  19.7 kN
Weight (kg/m)  0.63 kg
Weight (lbs/ft)  0.42 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Printing and Paper Processing
  • Textile Industry, Robotic Systems
  • Assembly Lines
  • Agricultural Machinery
  • Automotive
  • Motorcycles
  • Food and Beverage Industry
  • Small-Scale Material Handling
