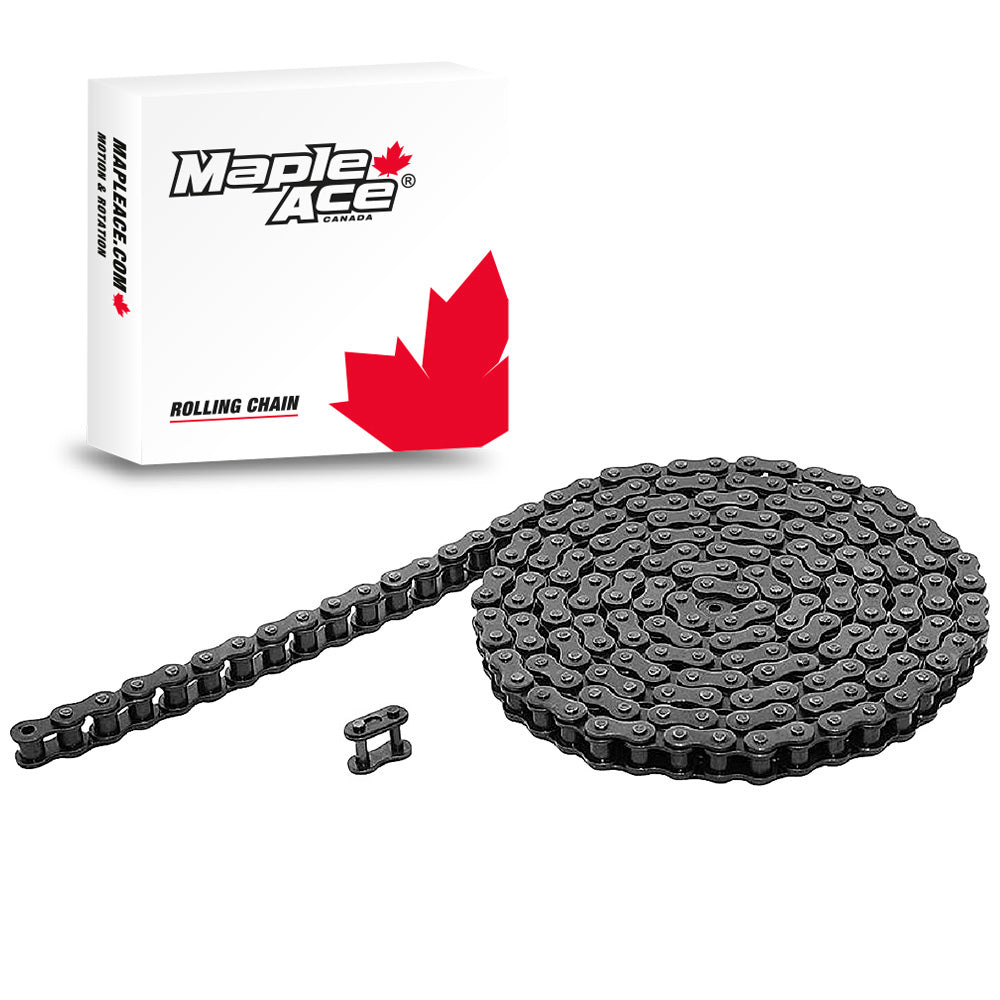

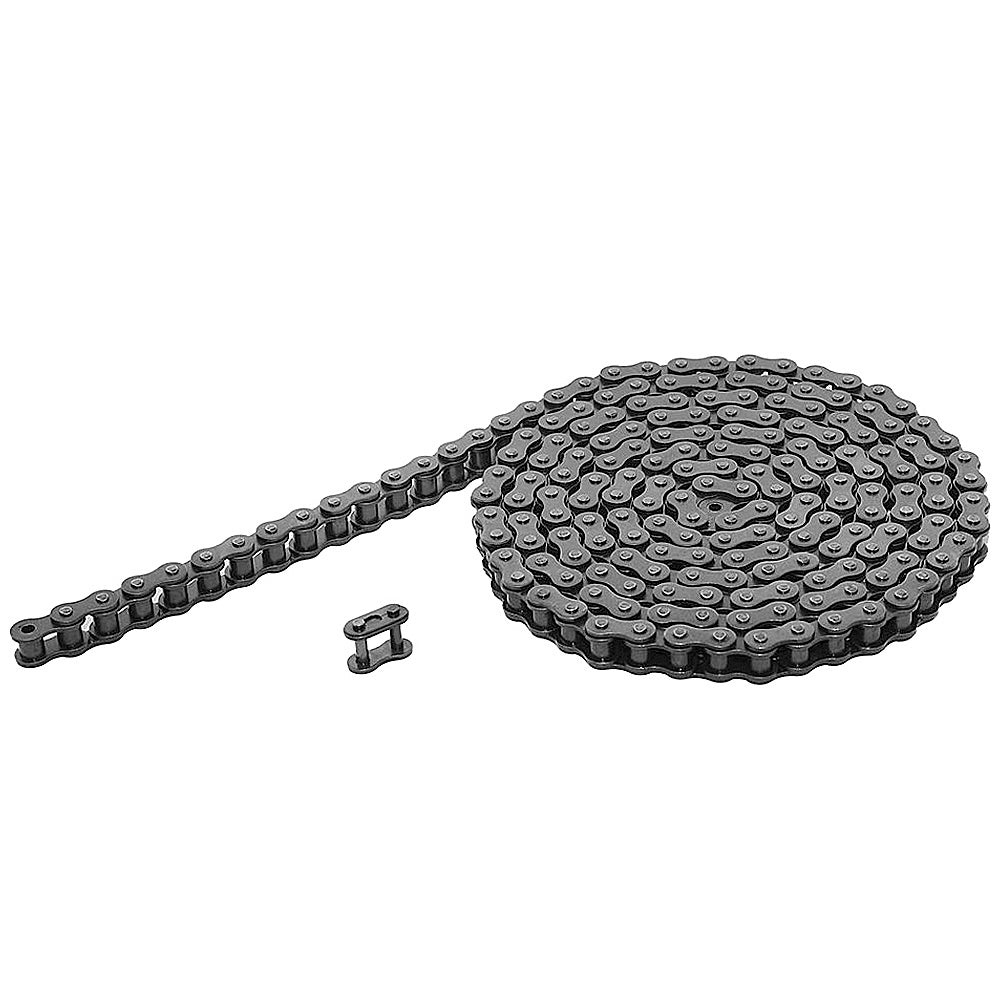

#420 Roller Chain 10 Feet 240 Links plus Connecting Master Link

#420 Roller Chain 10 Feet 240 Links plus Connecting Master Link

Availability: In stock

Product type: Chain

Regular price $20.39 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

420 Roller Chain is a 1/2 inch pitch Single Strand
Interchange to RS420, PHC420
The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
Application: Motorcycles and ATVs, Go-Karts, Mini Bikes, Bicycles, Agricultural Equipment, Industrial Machinery , Garage Door Openers, Elevators and Lifts, Conveyor Belts, Hobby and DIY Projects...etc
Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
Higher tensile strength for superior impact resistance
Heat treatment to achieve ideal hardness
Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
The chain can be cut to desired length using a Chain Breaker

Specifications
Application

Item	420
Number of Strands	1
Chain Pitch Metric	12.7 mm
Chain Pitch Inch	0.5 in
Roller diameter d1 max Metric	7.77 mm
Roller diameter d1 max Inch	0.30 in
Width between inner plates b1 min Metric	6.25 mm
Width between inner plates b1 min Inch	0.246 in
Pin diameter d2 max Metric	3.96 mm
Pin diameter d2 max Inch	0.16 in
Pin length L max Metric	14.70 mm
Pin length L max Inch	0.58 in
Pin length Lc max Metric	45.0 mm
Pin length Lc max Inch	1.77 in
Plate height h2 max Metric	12 mm
Plate height h2 max Inch	0.47 in
Plate thickness T max Metric	1.5 mm
Plate thickness T max Inch	0.06 in
Ultimate Tensile Strength Q min	16.1/3597 kN/LB
Average Tensile Strength Q0	17.6 kN
Weight (kg/m)	0.550 kg
Material	Carbon/Alloy Steel
