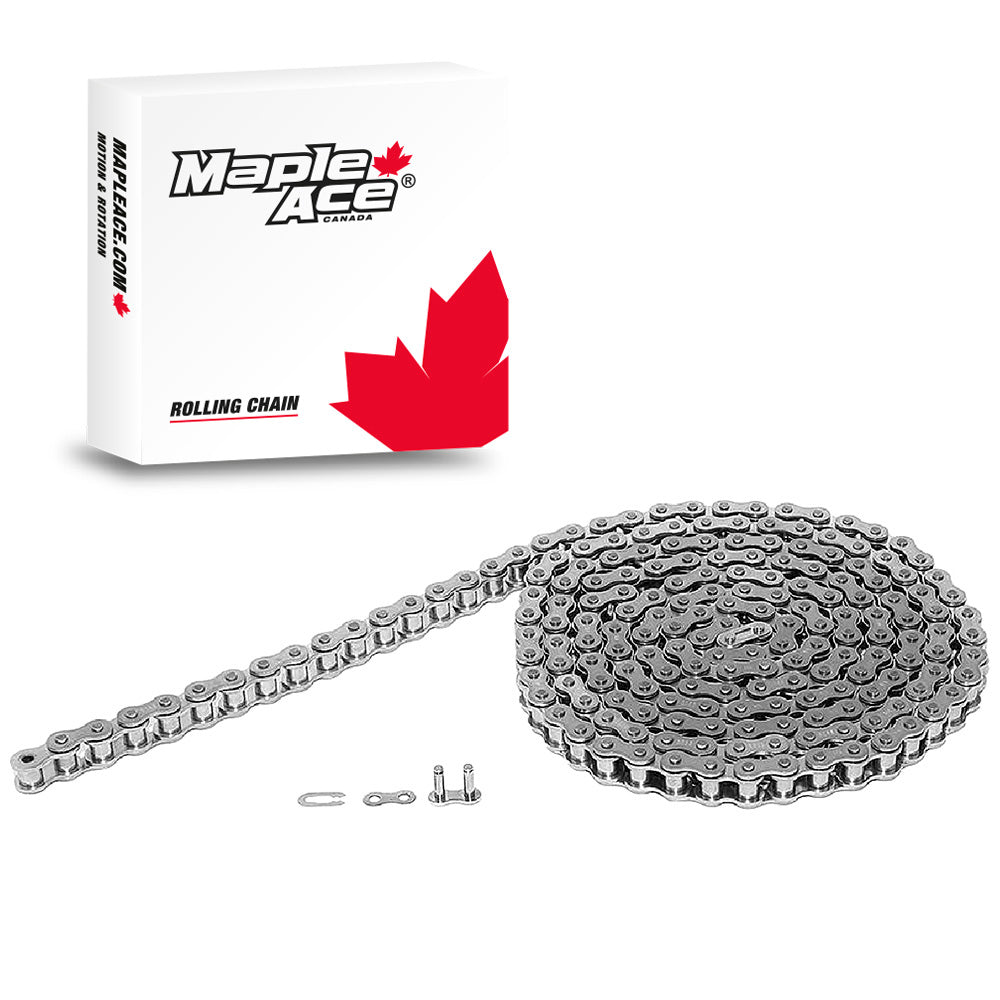

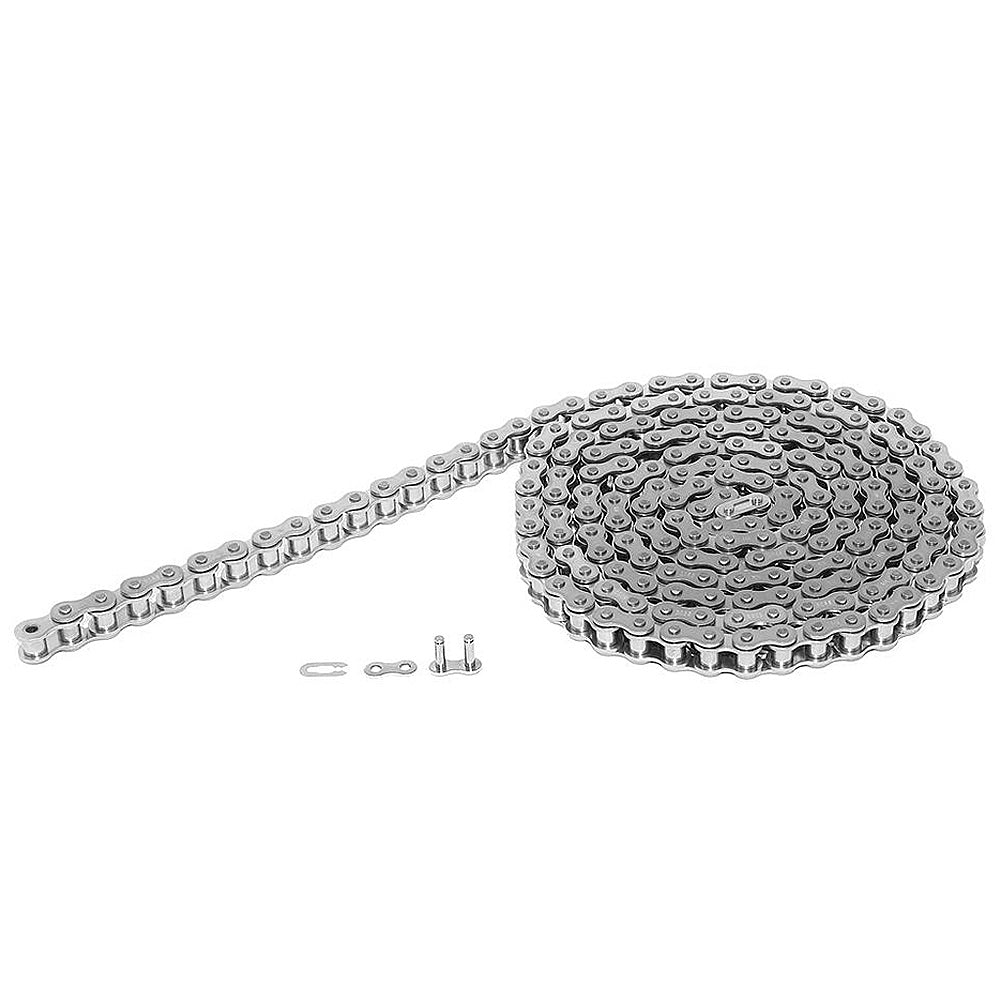

#60 SS Stainless Steel Roller Chain 3/4" Pitch 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

Regular price $81.69 USD

Stainless Steel chains have higher corrosion resistance, and are suitable for applications that require a high level of cleanliness or the use...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Package

Description

  • Stainless Steel chains have higher corrosion resistance, and are suitable for applications that require a high level of cleanliness or the use of harsh chemicals
  • Maple Ace Stainless Steel chains are made from SS304 grade
    steel for high corrosion resistance
  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness
  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  60-1SS
ANSI Chain number  60-1SS
BS/ISO Chain number  12A-1SS
Number of Strands
Chain Pitch Metric  19.05 mm
Chain Pitch Inch  0.75 in
Roller diameter d1 max Metric  11.91 mm
Roller diameter d1 max Inch  0.47 in
Width between inner plates b1 min Metric  12.57 mm
Width between inner plates b1 min Inch 0.49 in
Pin diameter d2 max Metric  5.94 mm
Pin diameter d2 max Inch  0.23 in
Pin length L max Metric  25.90 mm
Pin length L max Inch  1.02 in
Pin length Lc max Metric  27.7 mm
Pin length Lc max Inch  1.09 in
Plate height h2 max Metric  18 mm
Plate height h2 max Inch  0.71 in
Plate thickness T max Metric  2.42 mm
Plate thickness T max Inch  0.1 in
Ultimate Tensile Strength Q min  21.7 kN
Weight (kg/m)  1.50 kg
Weight (lbs/ft)  1.01 lbs
Material  Stainless Steel
  • You can use these Stainless Steel Chains in food processing, pharmaceutical, high/ low temp (–20 to 400 °C) and corrosive environments.
