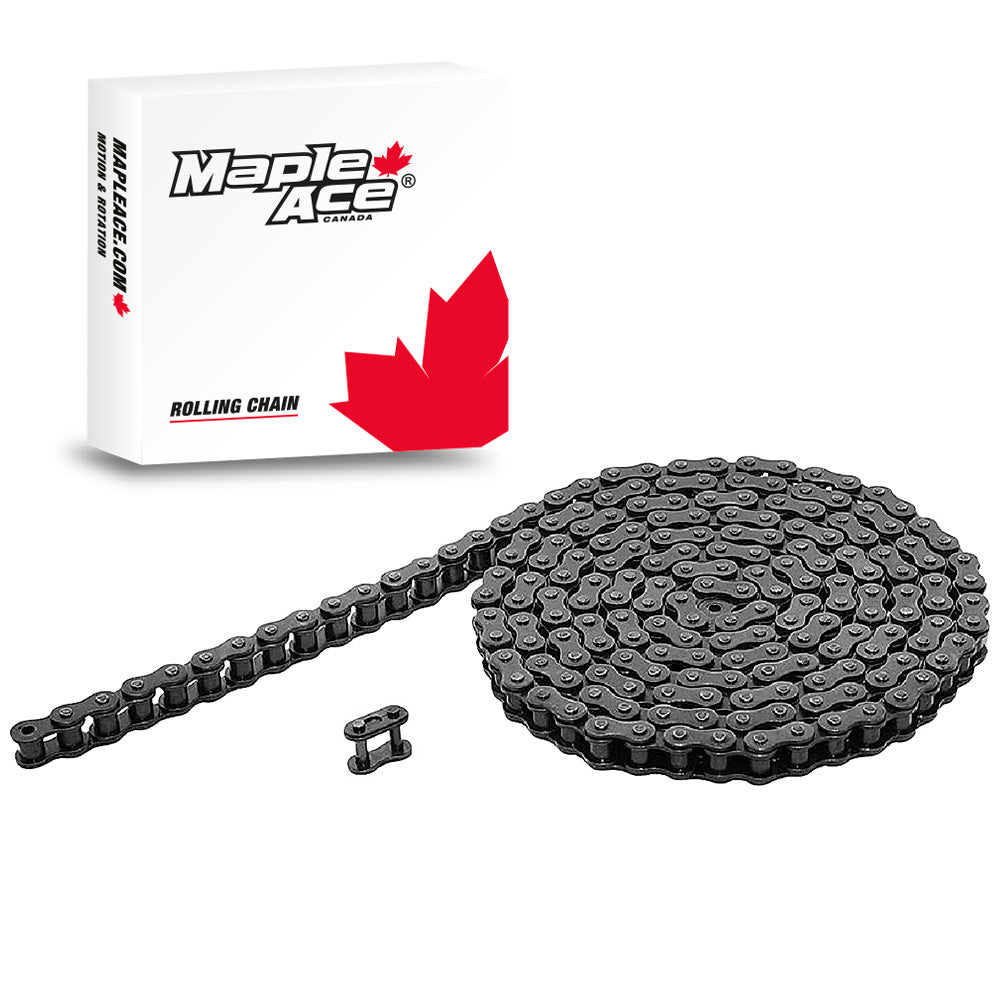

#60 Roller Chain 10 Feet plus Connecting Master Link
#60 Roller Chain 10 Feet plus Connecting Master Link

#60 Roller Chain 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

$32.39 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

  • 60 Roller Chain is a 3/4 inch pitch ANSI Standard Roller Chain Single Strand
  • Interchange to ANSI Chain No. 60-1, BS/ISO No. 12A-1, RS41-1, PHC60-1
  • The Roller Chains are Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food and Beverage Industry, Textile Industry,Power Transmission Systems
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.
Add to wishlist

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

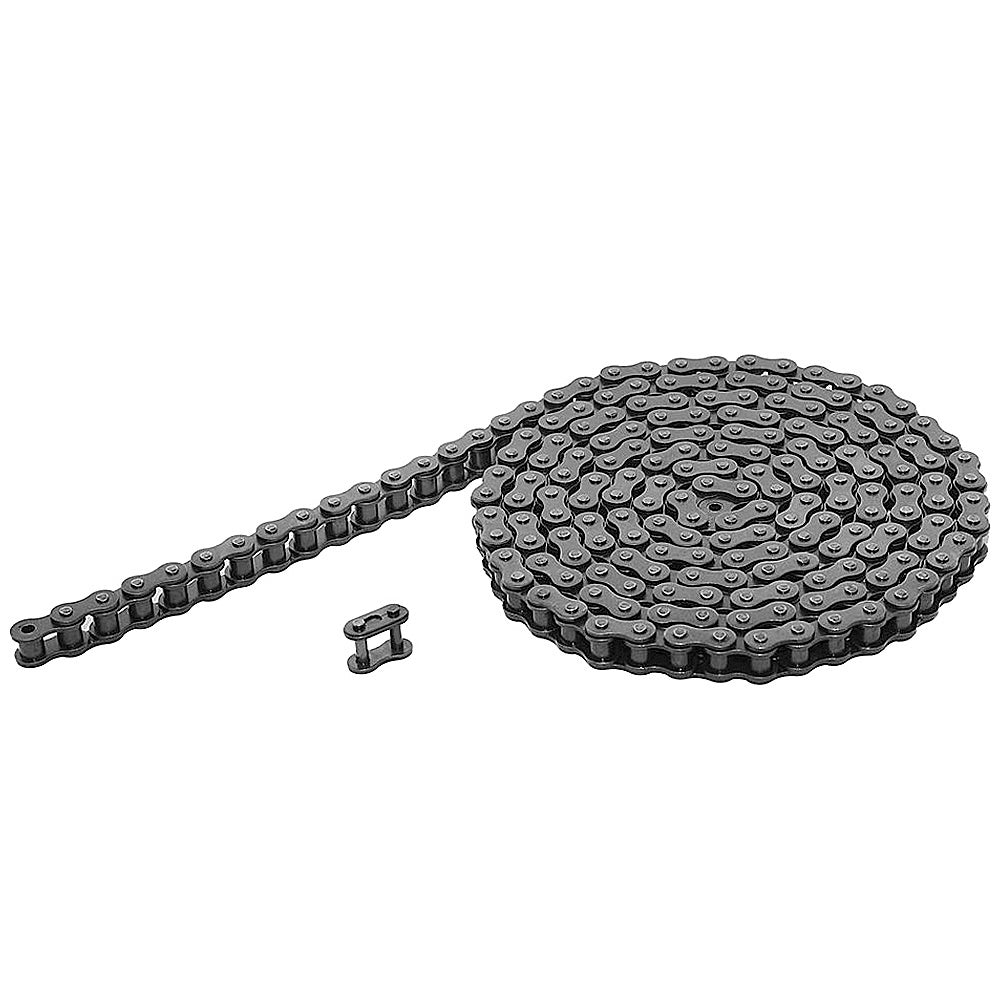

  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  60-1
ANSI Chain number  60-1
BS/ISO Chain number  12A-1
Number of Strands  1
Chain Pitch Metric  19.05 mm
Chain Pitch Inch  0.75 in
Roller diameter d1 max Metric  11.91 mm
Roller diameter d1 max Inch  0.47 in
Width between inner plates b1 min Metric  12.57 mm
Width between inner plates b1 min Inch 0.49 in
Pin diameter d2 max Metric  5.94 mm
Pin diameter d2 max Inch  0.23 in
Pin length L max Metric  25.90 mm
Pin length L max Inch  1.02 in
Pin length Lc max Metric  27.7 mm
Pin length Lc max Inch  1.09 in
Plate height h2 max Metric  18 mm
Plate height h2 max Inch  0.71 in
Plate thickness T max Metric  2.42 mm
Plate thickness T max Inch  0.1 in
Ultimate Tensile Strength Q min  31.8 kN
Average Tensile Strength Q0  41.5 kN
Weight (kg/m)  1.50 kg
Weight (lbs/ft)  1.01 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Conveyor Systems
  • Packaging Equipment
  • Agricultural Equipment
  • Construction and Mining Equipment
  • Material Handling Equipment
  • Food and Beverage Industry
  • Textile Industry
  • Power Transmission Systems
  • Automated Manufacturing Systems
