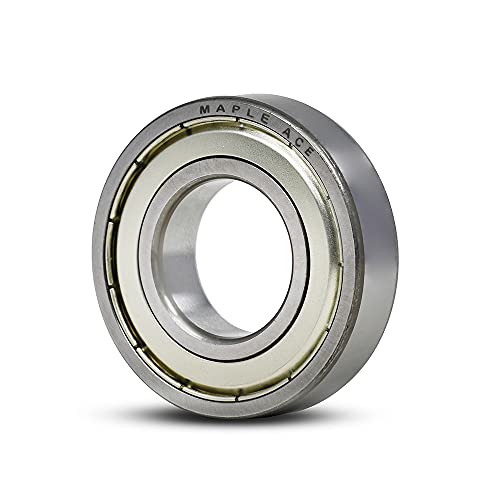

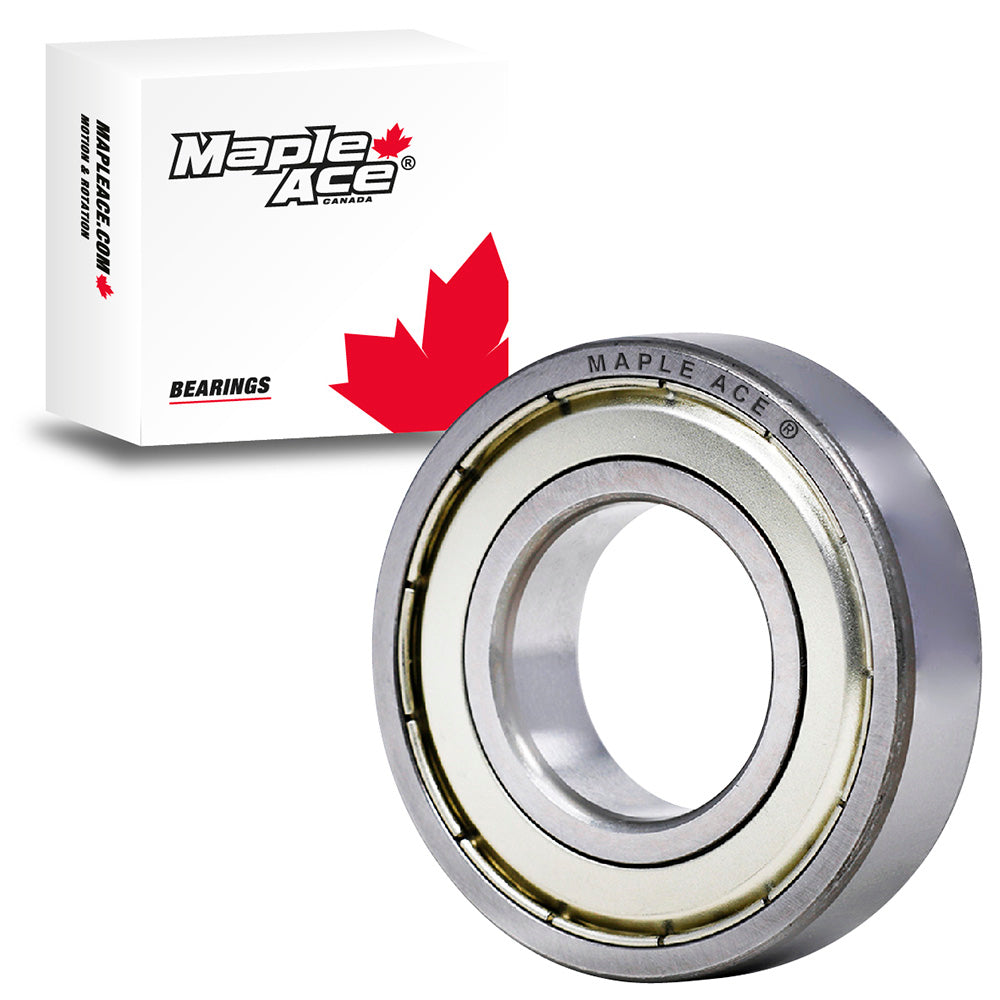

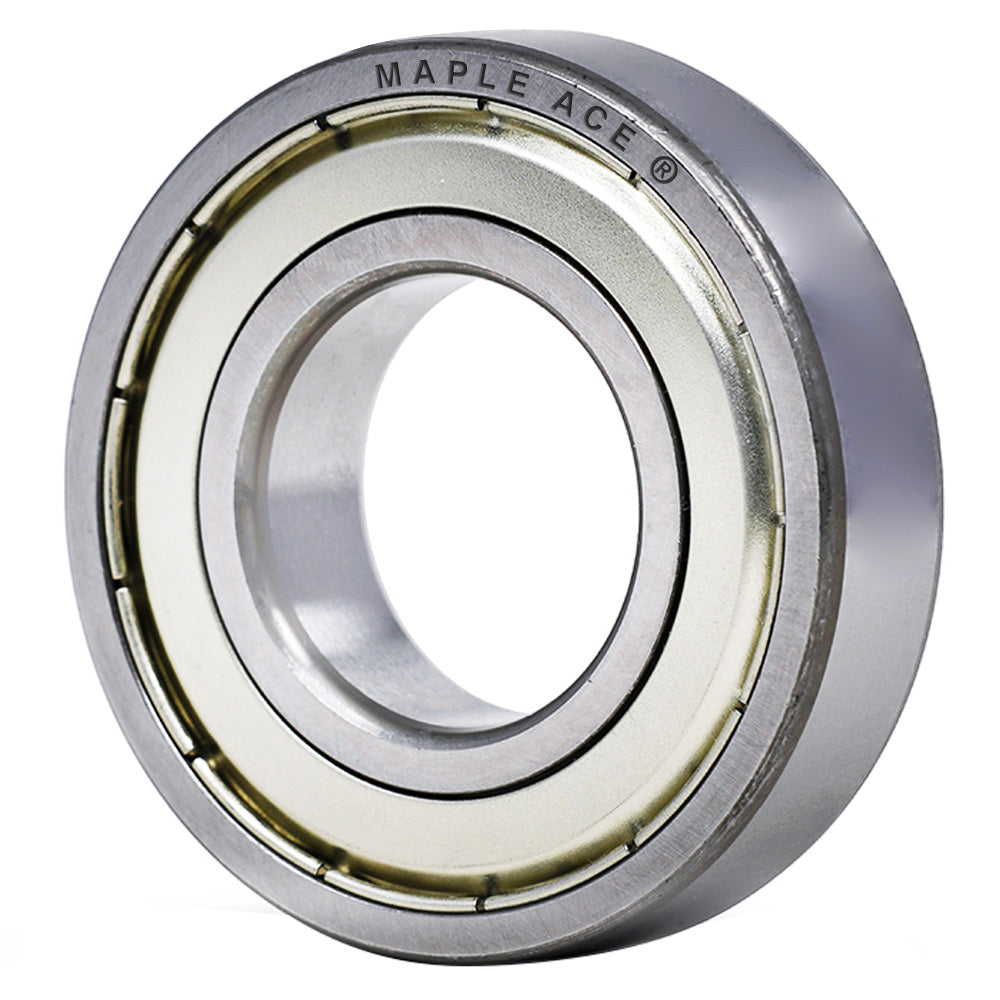

6004-ZZ Ball Bearing 20x42x12mm 6004 ZZ Metal Shielded

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $2.05 USD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 6004 ZZ Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 42mm, Width 12mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 6004, 6004 Z, 6004 ZZ, 6004 ZR, 6004 ZZR, 6004 2ZR, 6004 2Z
  • This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 6004-ZZ
Bearing Type Deep groove ball bearing
Bore Diameter 20.00 mm
Outside Diameter 42.00 mm
Width 12.00 mm
Width Inner Ring 12.00 mm
Width Outer Ring 12.00 mm
Dynamic Load Rating Cr 9950 N
Static Load Rating Cor 5000 N
Limiting Speed 19000 r/min
Clearance Normal
Tolerance Inner Ring 0 to -10 μm
Tolerance Outer Ring 0 to -11 μm
Tolerance Classes P0
Noise and Vibration Z1V1
Closures Shield on both sides
Lubrication Type Grease Shell RL2
Lubrication Temperature -20°C  to +160°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.069 KG
FAG 6004-2Z
INA 6004-2Z
Koyo 6004 ZZ
NACHI 6004ZZE
NSK 6004 ZZ
NTN 6004 ZZ
SKF 6004-2Z
SNR 6004-ZZ
TIMKEN 6004-ZZ

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Wheel Bearing
  • Automotive
  • ATV
  • Motorcycle
  • Snowmobile
  • Go-KART
  • Marine
  • Appliances
  • Sporting Machines
  • Industrial Applications
  • Electric Motor
  • HVAC
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
