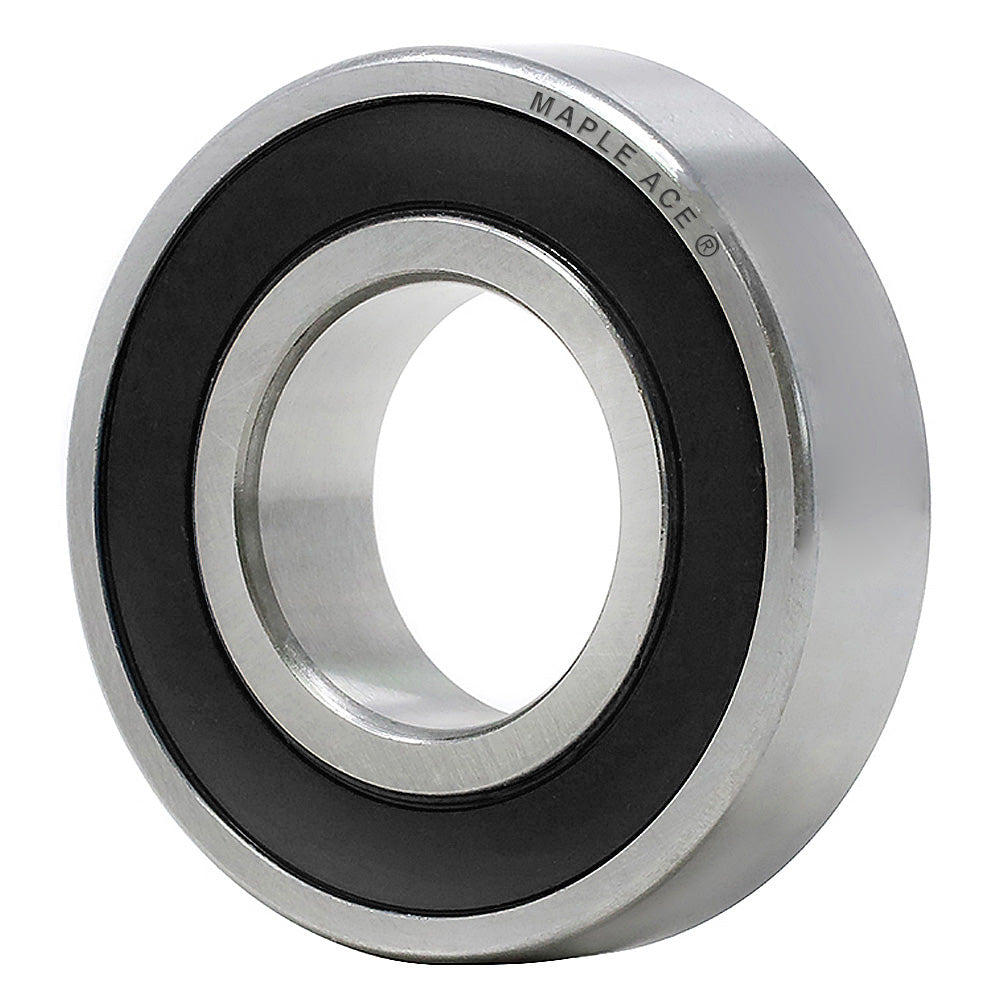

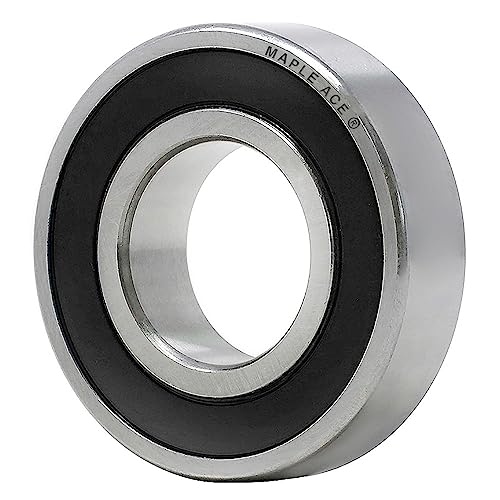

6019-2RS C3 Ball Bearing 95x145x24mm 6019 2RS Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $39.95 USD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 6019 2RS C3 Deep Groove Ball Bearing dimensions: Bore Diameter 95mm, Outside Diameter 145mm, Width 24mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 6019 C3, 6019 RS C3, 6019 RSR C3, 6019 2RSR C3, 6019 2RS1 C3, 6019 2RSJEM C3, 6019 LU C3, 6019 LLU C3, 6019 DU C3, 6019 DDU C3, 6019 2NSL C3, 6019 2NSE C3, 6019 EE C3
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item  6019-2RS C3
Bearing Type  Deep groove ball bearing
Bore Diameter  95.00mm
Outside Diameter  145.00mm
Width  24.00mm
Width Inner Ring  24.00mm
Width Outer Ring  24.00mm
Dynamic Load Rating Cr  63700 N
Static Load Rating Cor  54000 N
Limiting Speed  2800 r/min
Clearance  C3
Tolerance Classes  P5
Cage  Metal
Closures  Seal on both sides
Lubrication Type  Grease Chevron
Lubrication Temperature  -30°C to +180°C
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  1.250 KG
FAG 6019-2RSR C3
Koyo 6019 2RS C3
NACHI 6019-2NSE C3
NSK 6019 DDU C3
NTN 6019 LLU C3
SKF 6019-2RS1 C3
SNR 6019.EE C3
TIMKEN 6019-2RS C3
