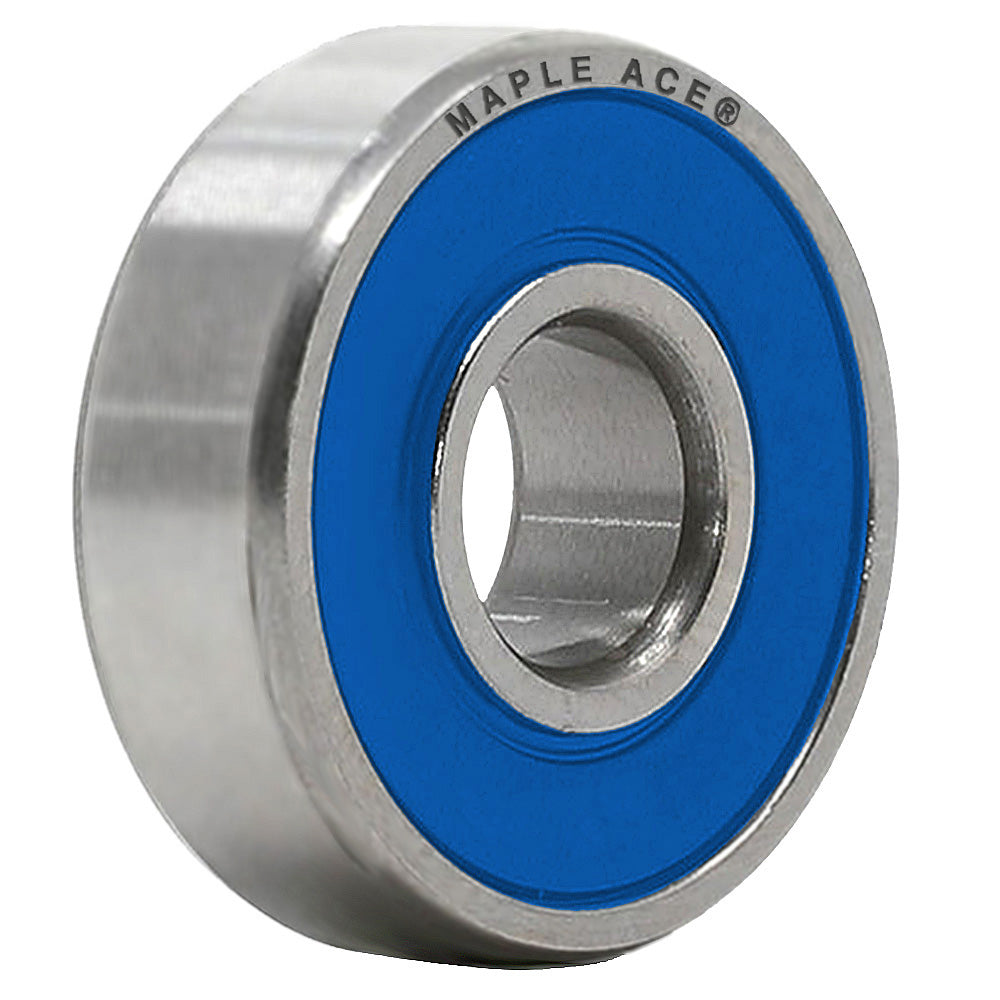

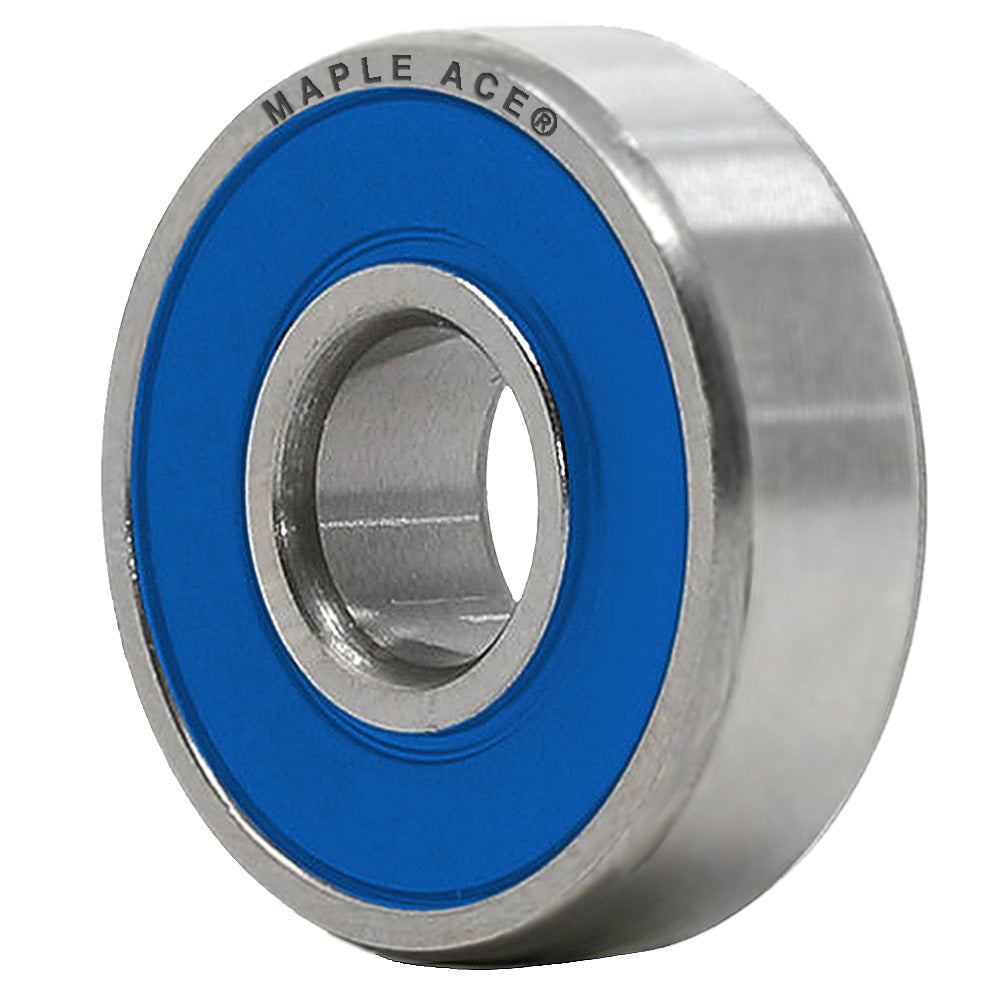

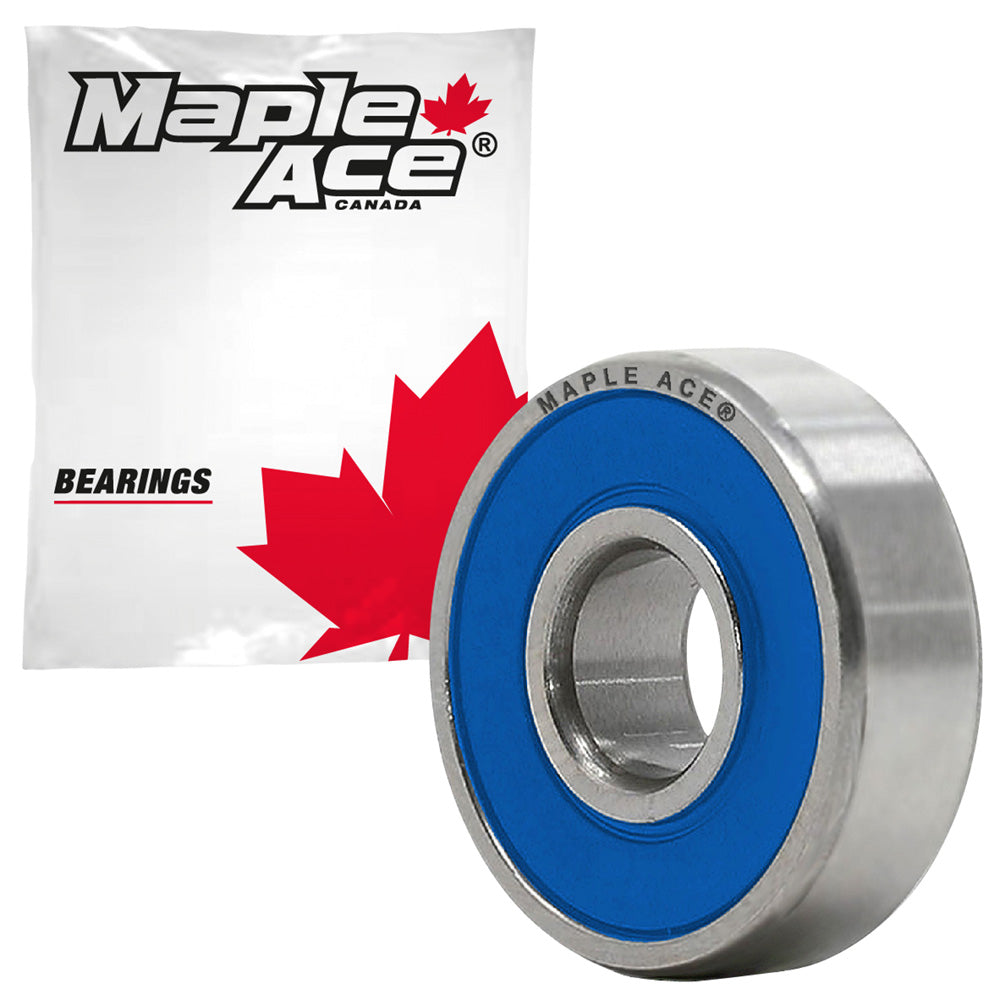

608-2RS Ball Bearing 8x22x7mm 608 2RS Rubber Sealed
608-2RS Ball Bearing 8x22x7mm 608 2RS Rubber Sealed
608-2RS Ball Bearing 8x22x7mm 608 2RS Rubber Sealed

608-2RS Ball Bearing 8x22x7mm 608 2RS Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

$0.90 USD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 608 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 8mm, Outside Diameter 22mm, Width 7mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 608, 608 RS, 608 RSR, 608 2RSR, 608 RSH, 608 2RSH, 608 2RSJEM, 608 LU, 608 LLU, 608 DU, 608 DDU, 608 2NSL, 608 2NSE, 608 EE
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: 3D Printer, Skateboard, Inline Roller Skate, Scooter, Longboard, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Add to wishlist

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 608-2RS
Bearing Type 600
Bore Diameter 8.00 mm
Outside Diameter 22.00 mm
Width 7.00 mm
Width Inner Ring 7.00 mm
Width Outer Ring 7.00 mm
Dynamic Load Rating Cr 3450 N
Static Load Rating Cor 1370 N
Limiting Speed 38000 r/min
Clearance Normal
Tolerance Inner Ring 0 to -7 μm
Tolerance Outer Ring 0 to -8 μm
Tolerance Classes P5
Noise and Vibration Z3V3
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -40°C to +150°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.012 KG
FAG 608-2RSR
FEDERAL-MOGUL 38-CC
INA 608-2RSR
Koyo 608 2RS
NACHI 608-2NSE
NSK 608 DD, 608 VV
NTN 608 LLU
SKF 608-2RSH
SNR 608.EE
TIMKEN 608-2RS

You can use this MINIATURE DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Automotive
  • Turbo-machinery Pumps
  • Industrial
  • Miniature Motor
  • Textile
  • Fuel Control
  • Flow Meter
  • Office equipment
  • Paper-making machine
  • 3D Printer
  • Medical Handpieces & Instruments
  • Surgical Devices
  • Robots, Bicycle
  • Fishing Reel
  • Slip Ring
  • Hobbies
  • RC Car & Truck
  • RC Engine
  • RC Helicopter
  • Slot Car
  • YoYo
  • Fidget Spinner
