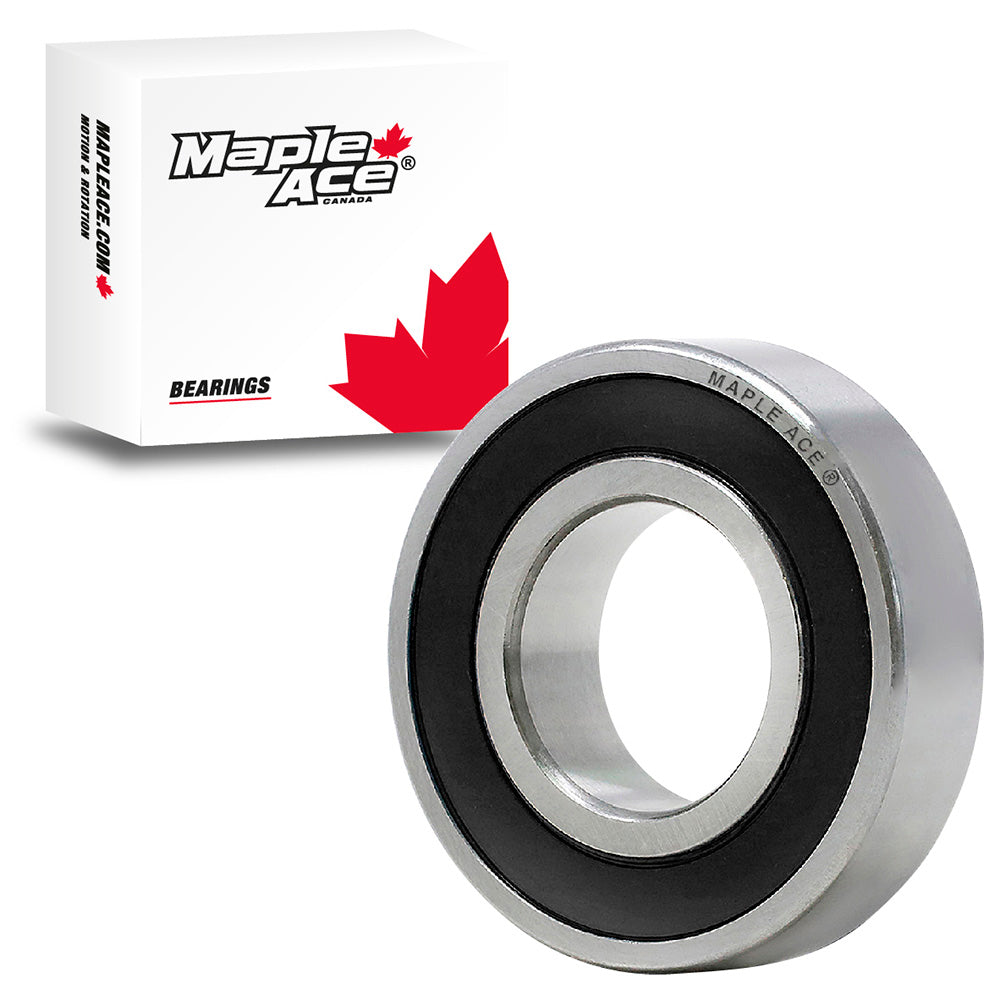

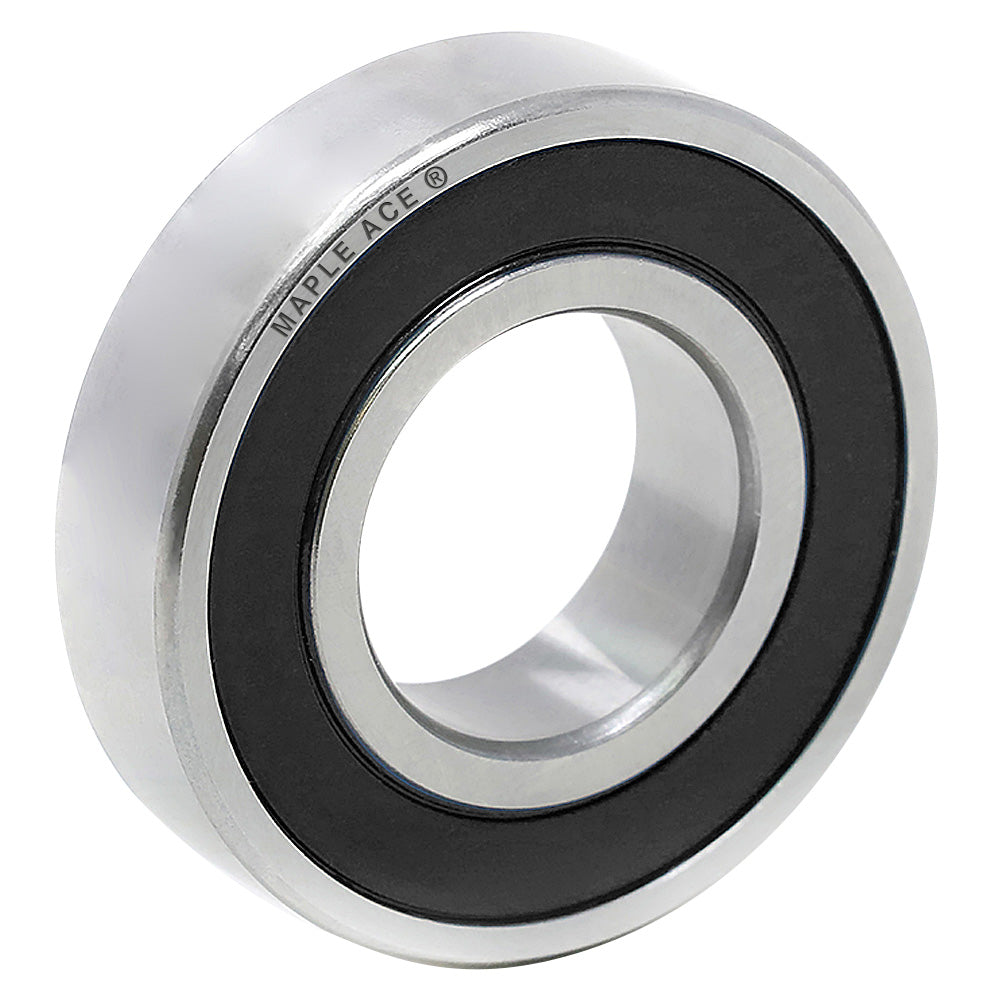

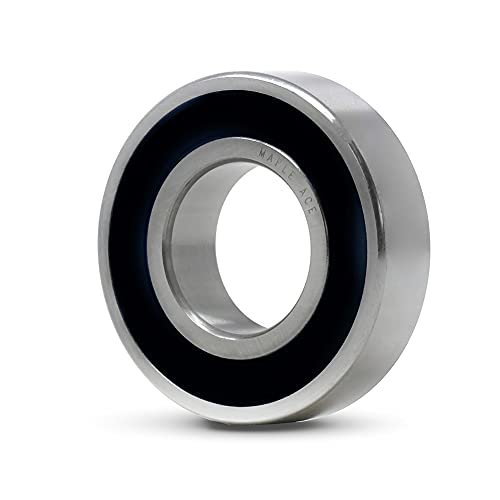

6200-2RS Ball Bearing 10x30x9mm 6200 2RS Rubber Sealed Supreme
Regular price $1.87 USD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- 6200 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 10mm, Outside Diameter 30mm, Width 9mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to 6200, 6200 RS, 6200 RSR, 6200 2RSR, 6200 RSH, 6200 2RSH, 6200 2RSJEM, 6200 LU, 6200 LLU, 6200 DU, 6200 DDU, 6200 2NSL, 6200 2NSE, 6200 EE, Z99500, 200SZZ, 200PP
- This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Item | 6200-2RS |
Bearing Type | 6200 |
Bore Diameter | 10.00 mm |
Outside Diameter | 30.00 mm |
Width | 9.00 mm |
Width Inner Ring | 9.00 mm |
Width Outer Ring | 9.00 mm |
Dynamic Load Rating Cr | 5400 N |
Static Load Rating Cor | 2360 N |
Limiting Speed | 17000 r/min |
Clearance | Normal |
Tolerance Inner Ring | 0 to -8 μm |
Tolerance Outer Ring | 0 to -9 μm |
Tolerance Classes | P0 |
Noise and Vibration | Z1V1 |
Closures | Seal on both sides |
Lubrication Type | Grease Shell RL2 |
Lubrication Temperature | -20°C to +160°C |
Rolling Element Indicator | Ball |
Material | Gcr15 |
Product Weight | 0.032 KG |
FAG | 6200-2RSR |
FEDERAL-MOGUL | 200-CC |
INA | 6200-2RSR |
Koyo | 6200 2RS |
NACHI | 6200-2NSE |
NSK | 6200 DDU, 6200 VV |
NTN | 6200 LLU |
SKF | 6200-2RSH |
SNR | 6200.EE |
TIMKEN | 6200-2RS |
You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:
