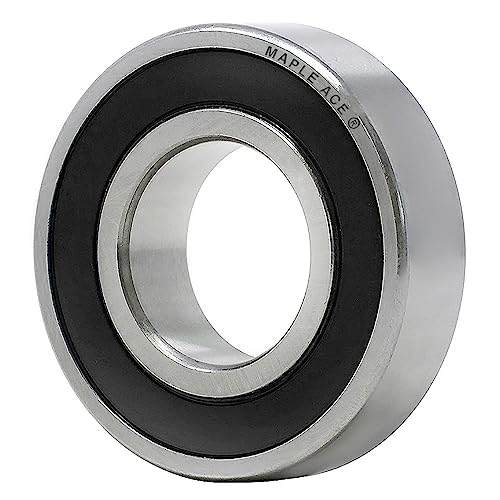

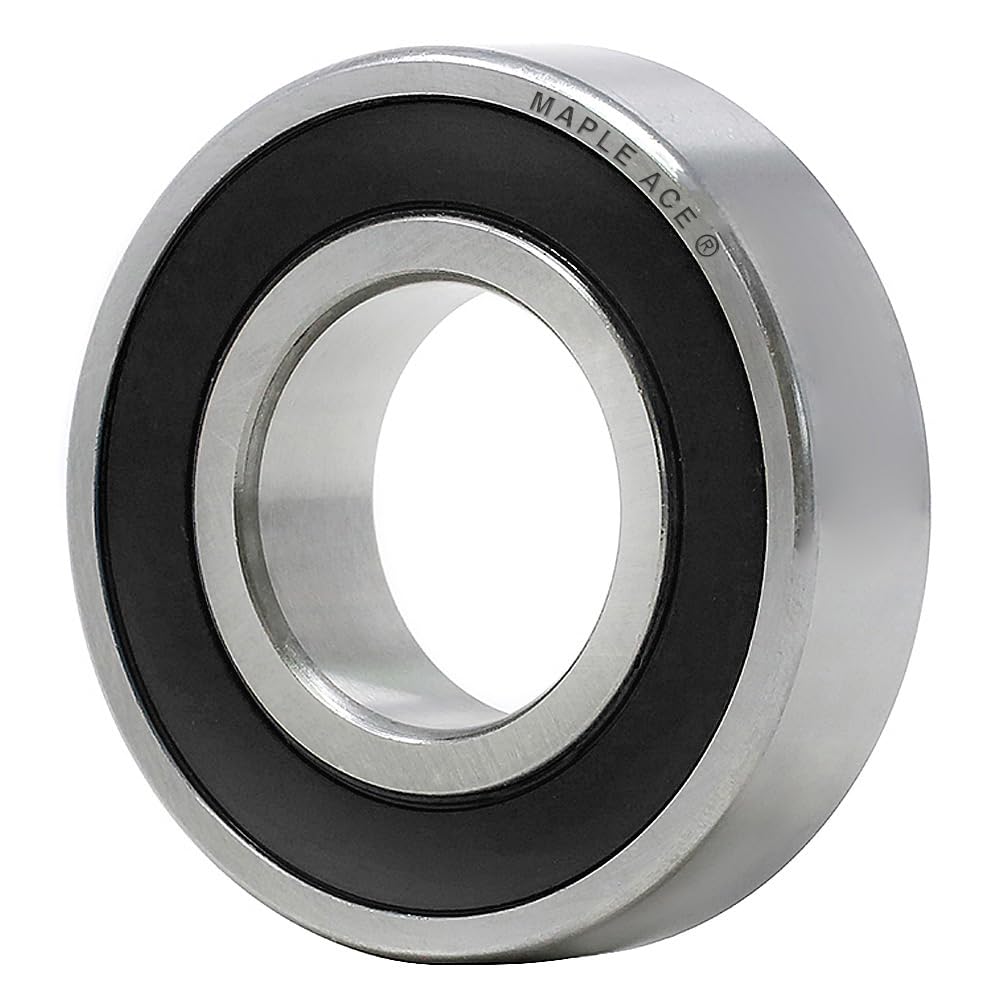

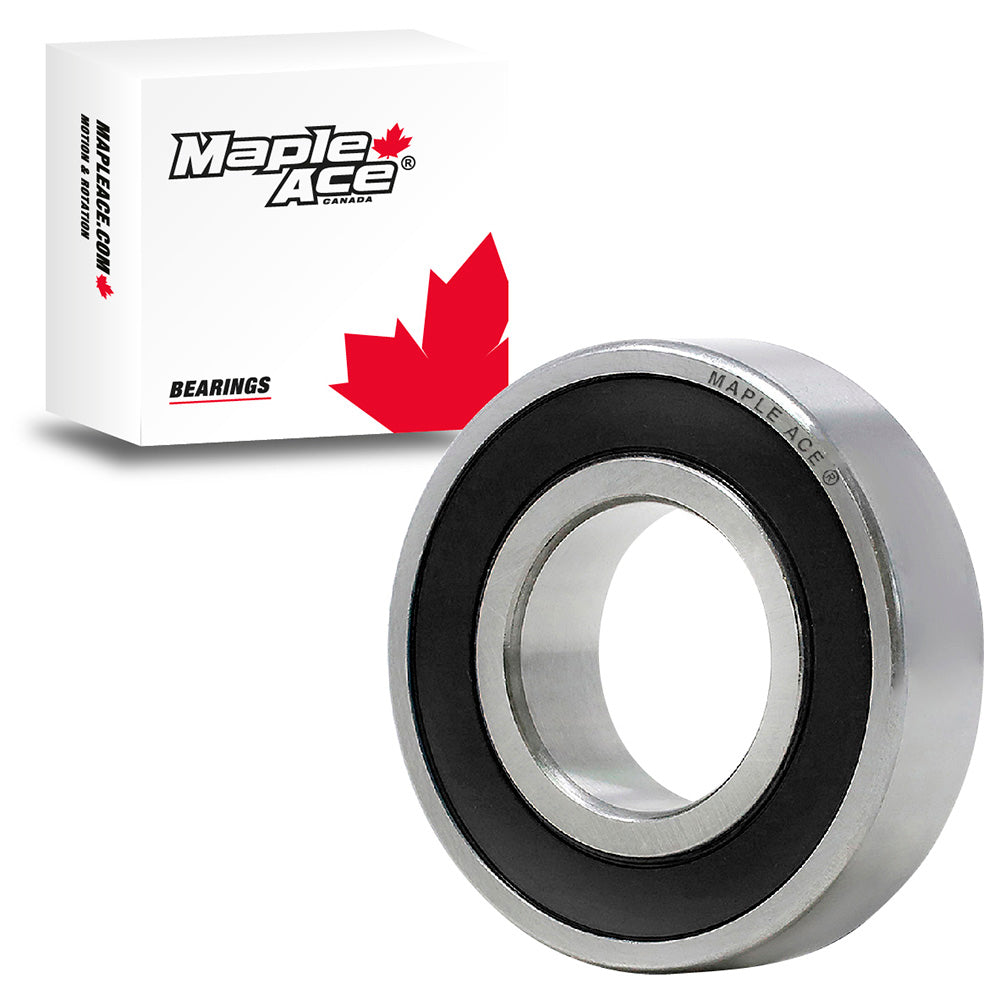

6214-2RS C3 Ball Bearing 70x125x24mm 6214 2RS C3 Rubber Sealed
Regular price $23.95 USD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- 6214 2RS C3 Deep Groove Ball Bearing dimensions: Bore Diameter 70mm, Outside Diameter 125mm, Width 24mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to 6214, 6214 RS, 6214 RSR, 6214 2RSR, 6214 RS1, 6214 2RS1, 6214 2RSJEM, 6214 LU, 6214 LLU, 6214 DU, 6214 DDU, 6214 2NSL, 6214 2NSE, 6214 EE
- This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Item | 6214-2RS |
Bearing Type | Deep groove ball bearing |
Bore Diameter | 70.00mm |
Outside Diameter | 125.00mm |
Width | 24.00mm |
Width Inner Ring | 24.00mm |
Width Outer Ring | 24.00mm |
Dynamic Load Rating Cr | 58500 N |
Static Load Rating Cor | 40500 N |
Limiting Speed | 3600 r/min |
Clearance | C3 |
Tolerance Classes | P5 |
Cage | Metal |
Closures | Seal on both sides |
Lubrication Type | Grease Chevron |
Lubrication Temperature | -30°C to +180°C |
Rolling Element Indicator | Ball |
Material | Gcr15 |
Product Weight | 1.050 KG |
FAG | 6214-2RSR C3 |
Koyo | 6214 2RS C3 |
NACHI | 6214-2NSE C3 |
NSK | 6214 DDU C3 |
NTN | 6214 LLU C3 |
SKF | 6214-2RS1 C3 |
SNR | 6214.EE C3 |
TIMKEN | 6214-2RS C3 |
