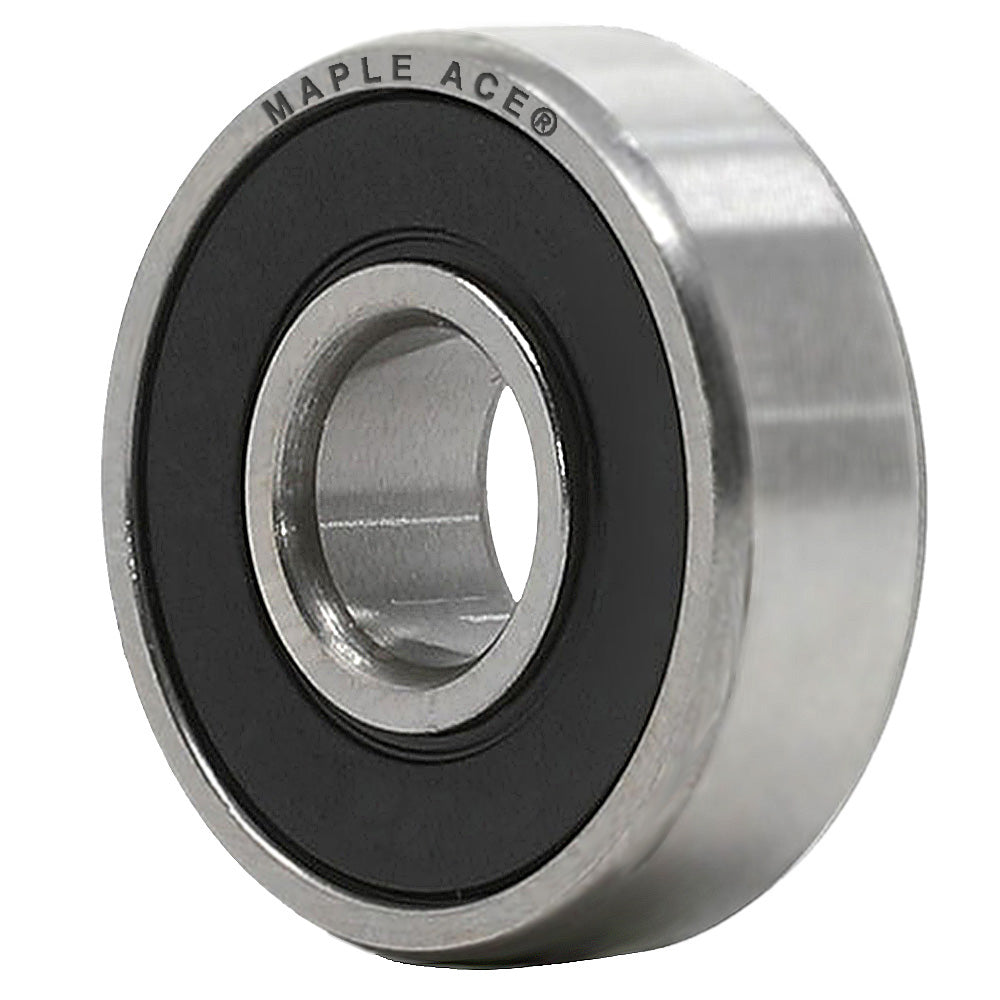

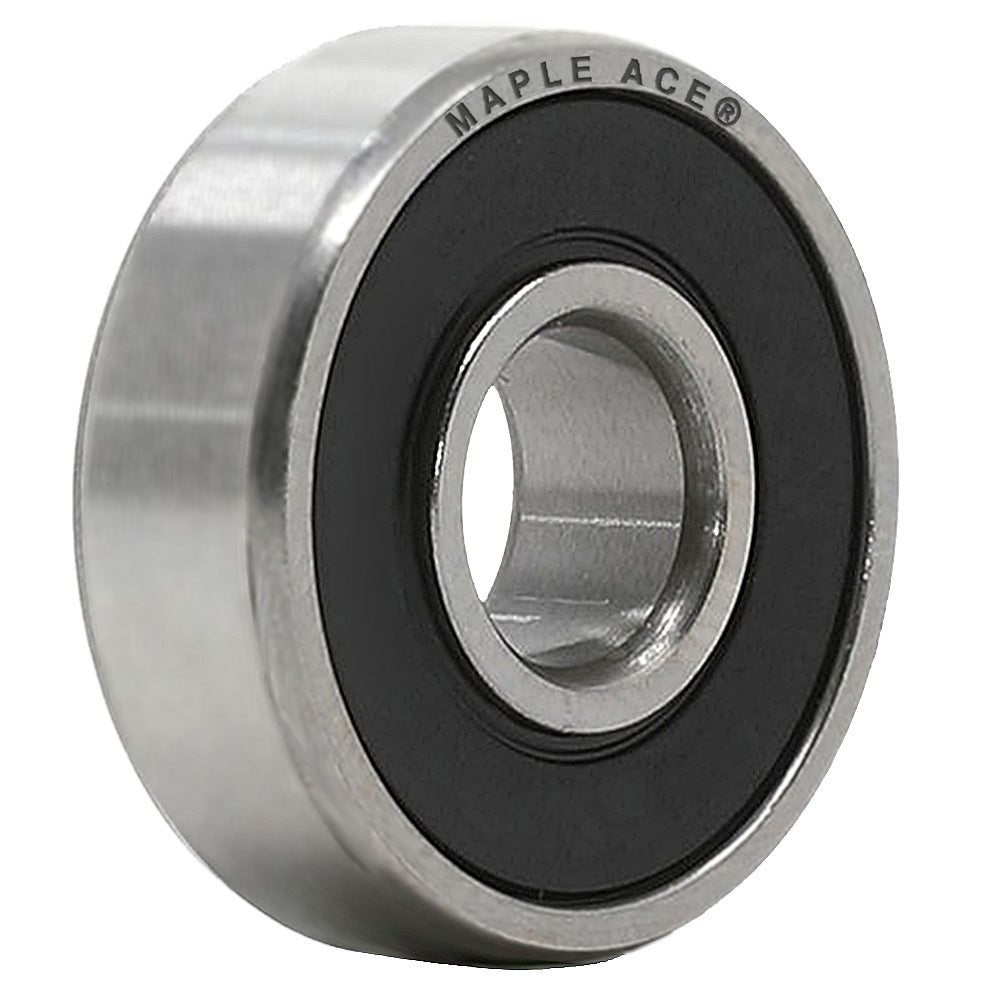

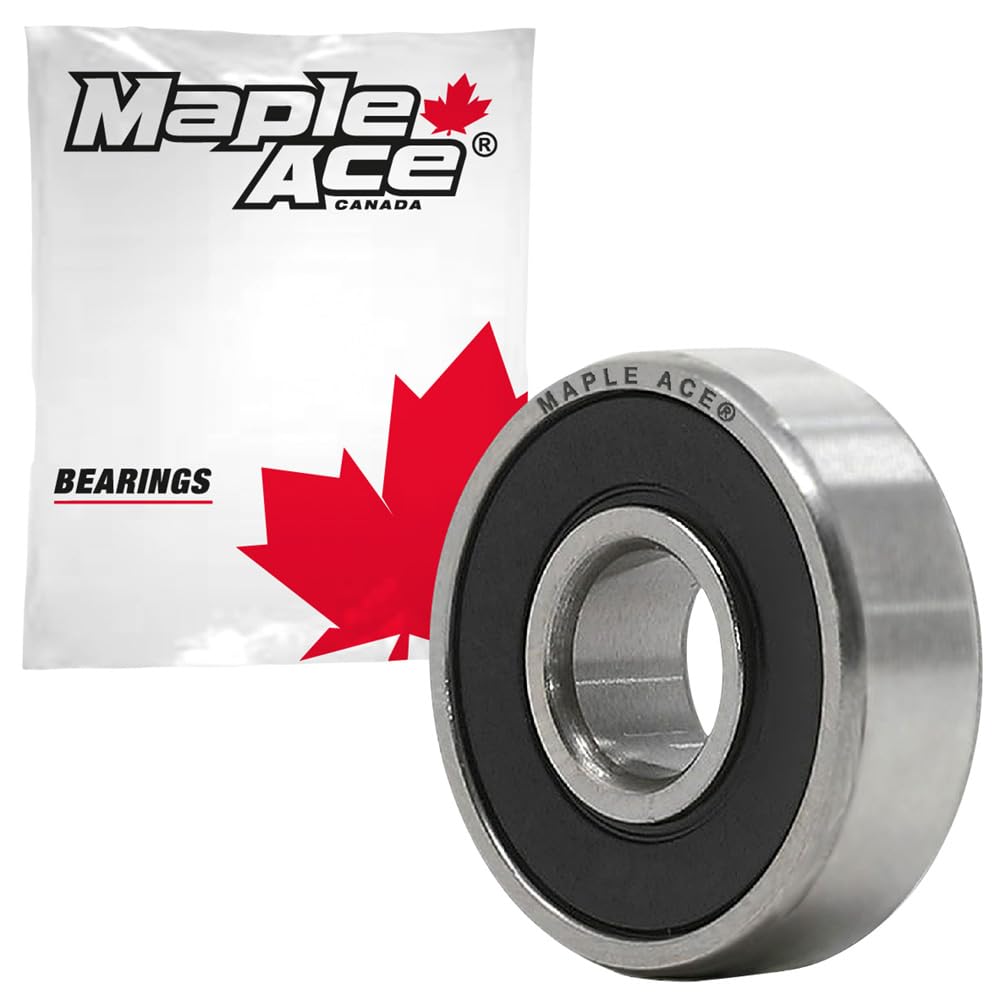

626-2RS Ball Bearing 6x19x6mm 626 2RS Rubber Sealed
Regular price $1.05 USD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- 626 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 6mm, Outside Diameter 19mm, Width 6mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to 626, 626 RS, 626 RSR, 626 2RSR, 626 RSH, 626 2RSH, 626 2RSJEM, 626 LU, 626 LLU, 626 DU, 626 DDU, 626 2NSL, 626 2NSE, 626 EE
- This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: 3D Printer, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Dimensions
| Item | 626-2RS |
| Inner Diameter | 6 mm |
| Outside Diameter | 19 mm |
| Width | 6 mm |
| Width Inner Ring | 6 mm |
| Width Outer Ring | 6 mm |
Performance
| Dynamic Load Rating (Cr) | 2340 |
| Static Load Rating (Cor) | 950 |
| Load Measurement Unit | N |
| Limiting Speed | 24000 |
| Speed Measurement Unit | r/min |
| Product Weight | 8.1 |
| Weight Unit | GR |
Properties
| Rolling Element Indicator | Ball |
| Number of rows | 1 |
| Locating feature, outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Material, bearing | Gcr15 |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubrication | Grease |
| Relubrication feature | Without |
| FAG | 626-2RSR |
| INA | 626-2RSR |
| Koyo | 626-2RS |
| NACHI | 626-2NSE |
| NSK | 626-DDU |
| NTN | 626-LLU |
| SKF | 626-2RSH |
| SNR | 626 EE |
| TIMKEN | 626-2RS |
