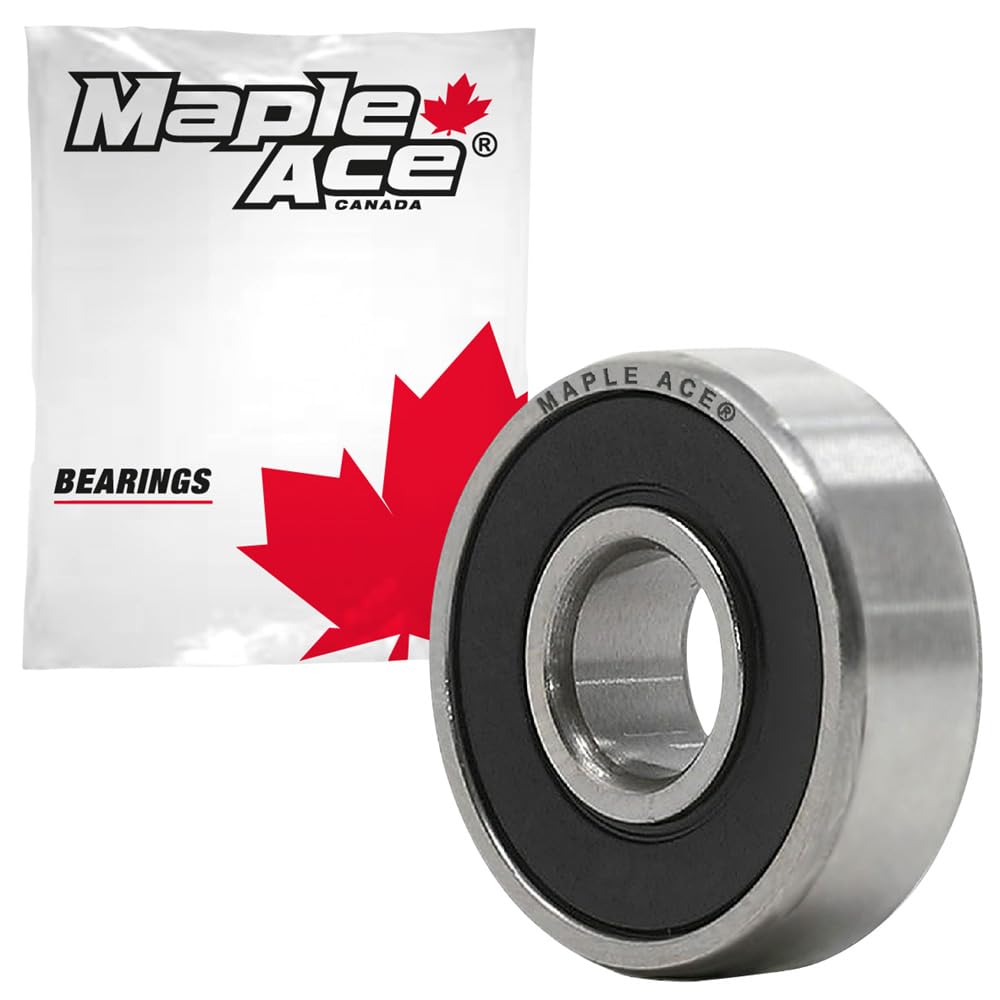

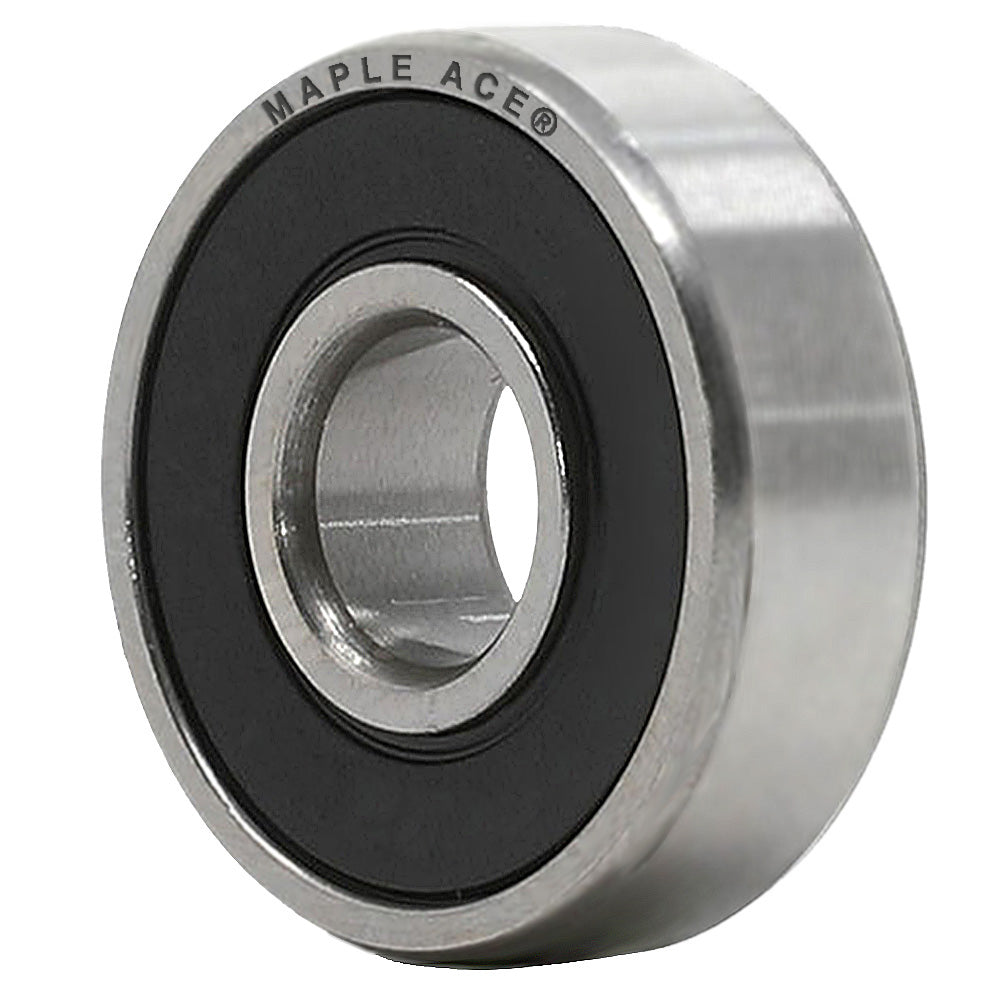

629-2RS Ball Bearing 9x26x8mm 629 2RS Rubber Sealed
Regular price $1.20 USD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- 629 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 9mm, Outside Diameter 26mm, Width 8mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to 629, 629 RS, 629 RSR, 629 2RSR, 629 RSH, 629 2RSH, 629 2RSJEM, 629 LU, 629 LLU, 629 DU, 629 DDU, 629 2NSL, 629 2NSE, 629 EE
- This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: 3D Printer, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Dimensions
| Item | 629-2RS |
| Inner Diameter | 9 mm |
| Outside Diameter | 26 mm |
| Width | 8 mm |
| Width Inner Ring | 8 mm |
| Width Outer Ring | 8 mm |
Performance
| Dynamic Load Rating (Cr) | 4750 |
| Static Load Rating (Cor) | 1960 |
| Load Measurement Unit | N |
| Limiting Speed | 19000 |
| Speed Measurement Unit | r/min |
| Product Weight | 19.4 |
| Weight Unit | GR |
Properties
| Rolling Element Indicator | Ball |
| Number of rows | 1 |
| Locating feature, outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Material, bearing | Gcr15 |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubrication | Grease |
| Relubrication feature | Without |
| FAG | 629-2RSR |
| INA | 629-2RSR |
| Koyo | 629-2RS |
| NACHI | 629-2NSE |
| NSK | 629-DDU |
| NTN | 629-LLU |
| SKF | 629-2RSH |
| SNR | 629 EE |
| TIMKEN | 629-2RS |
