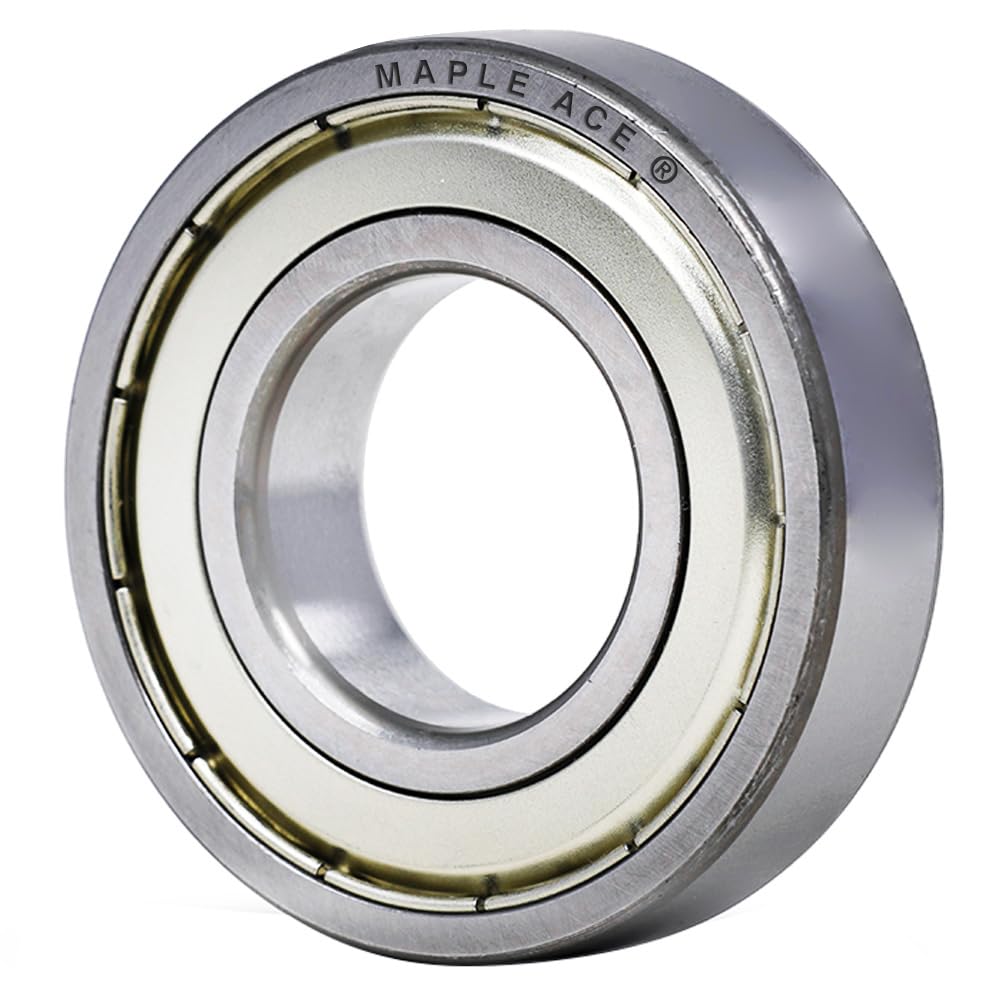

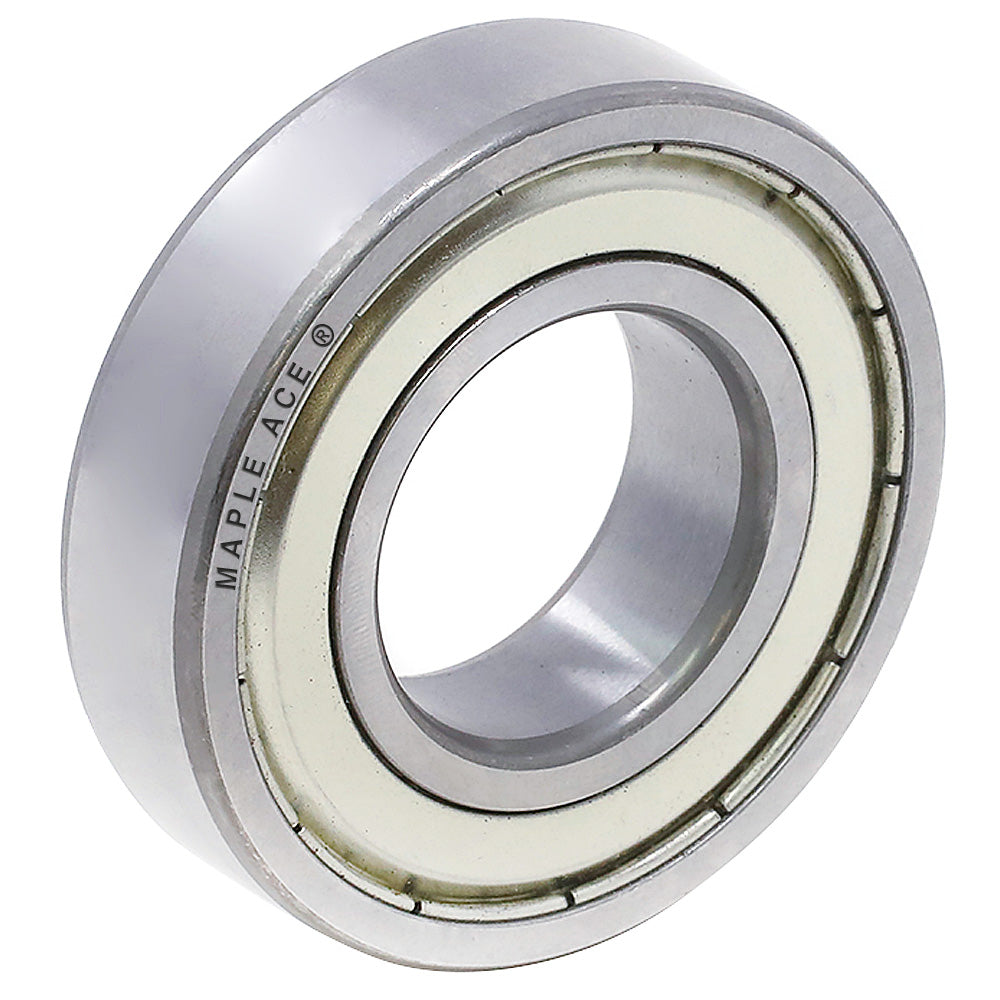

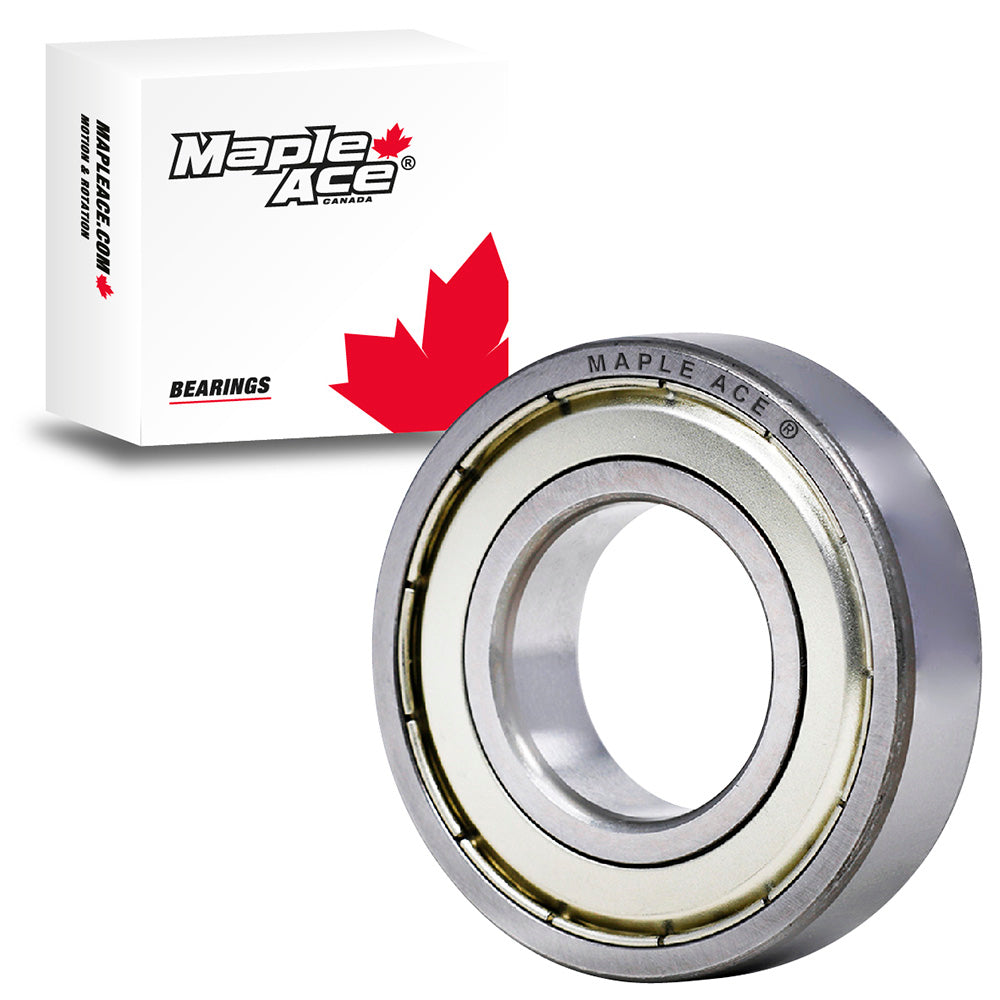

6314-ZZ Ball Bearing 70x150x35mm 6314 ZZ Metal Shielded

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $43.95 USD

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...

  • 6314 ZZ C3 Deep Groove Ball Bearing dimensions: Bore Diameter 70mm, Outside Diameter 150mm, Width 35mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
  • Interchange to 6314, 6314 Z, 6314 ZZ, 6314 ZR, 6314 2ZR, 6314 2Z
  • This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item  6314-ZZ C3
Bearing Type  Deep groove ball bearing
Bore Diameter  70.00mm
Outside Diameter  150.00mm
Width  35.00mm
Width Inner Ring  35.00mm
Width Outer Ring  35.00mm
Dynamic Load Rating Cr  111000 N
Static Load Rating Cor  68000 N
Limiting Speed  5000 r/min
Clearance  C3
Tolerance Classes  P5
Cage  Metal
Closures  Shield on both sides
Lubrication Type  Grease Chevron
Lubrication Temperature  -30°C to +180°C
Rolling Element Indicator  Ball
Material  Gcr15
Product Weight  2.650 KG
FAG 6314-2Z C3
Koyo 6314 ZZ C3
NACHI 6314 ZZE C3
NSK 6314 ZZ C3
NTN 6314 ZZ C3
SKF 6314-2Z C3
SNR 6314-ZZ C3
TIMKEN 6314-ZZ C3
