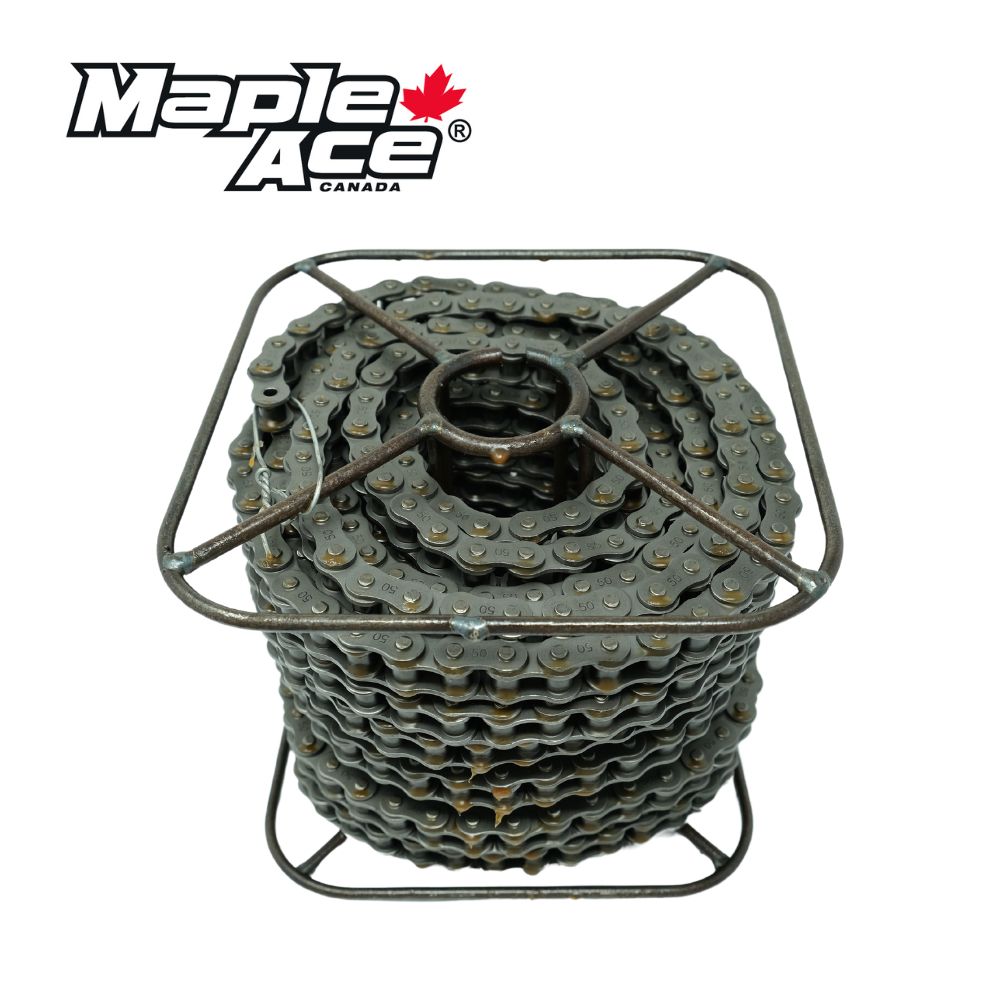

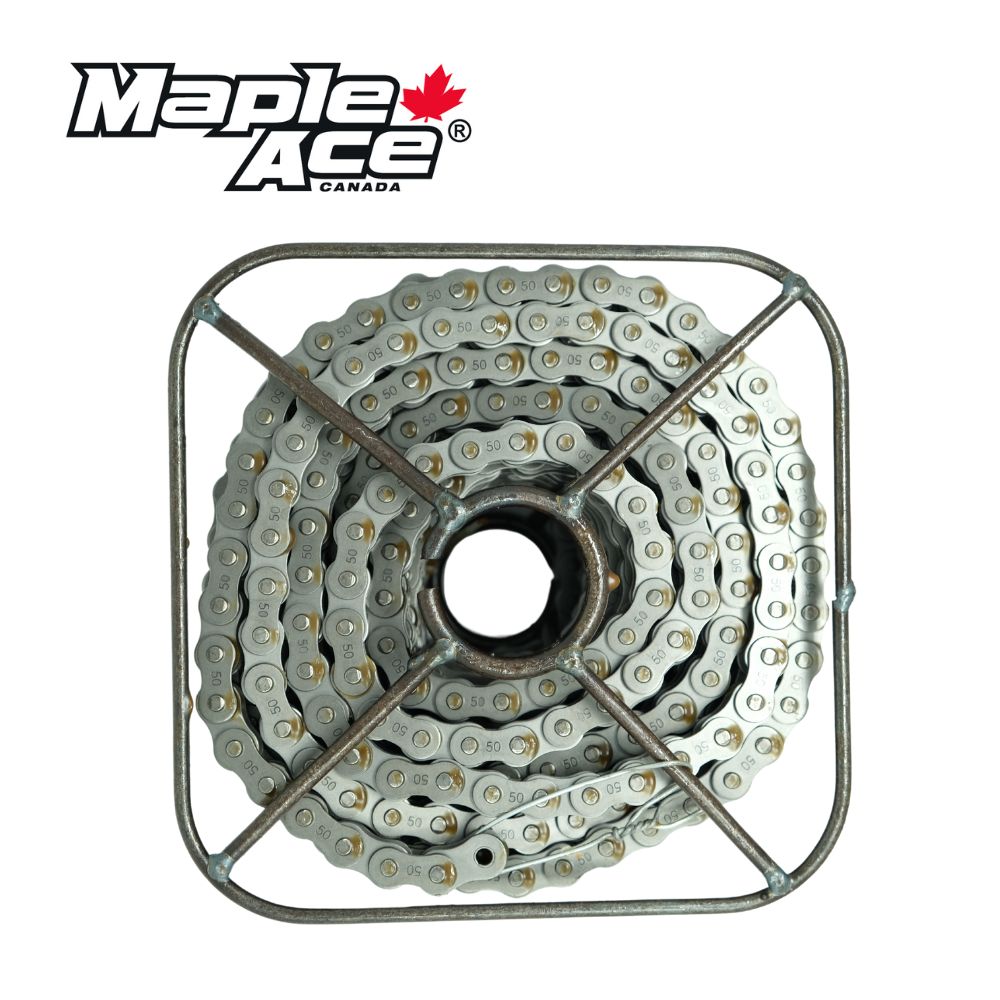

80H Heavy Duty Roller Chain 50 Feet plus 5 Connecting Master Links

: In stock

: Chain

: MAPLE ACE

Regular price $413.95 USD

H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads,...

  • 80H Heavy Duty Roller Chain is a 1 inch pitch ANSI Standard Roller Chain Single Strand
  • Interchange to ANSI Chain No. 80H-1, BS/ISO No. 80AH-1, RS80H-1, PHC80H-1
  • Heavy Duty Roller Chain Shot-peened, Pre-loaded, Pre-lubricated, Fatigue Resistant.
  • Application: Industrial Machinery, Conveyor Systems, Packaging Equipment, Agricultural Equipment, Construction Equipment, Material Handling Equipment, Food and Beverage Industry, Textile Industry,Power Transmission Systems
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

  • H series chain is designed for heavy-duty applications, with thicker plates than and BS/DIN chains to withstand approximately 10% higher shock loads, and is suitable for lower operating speeds
  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

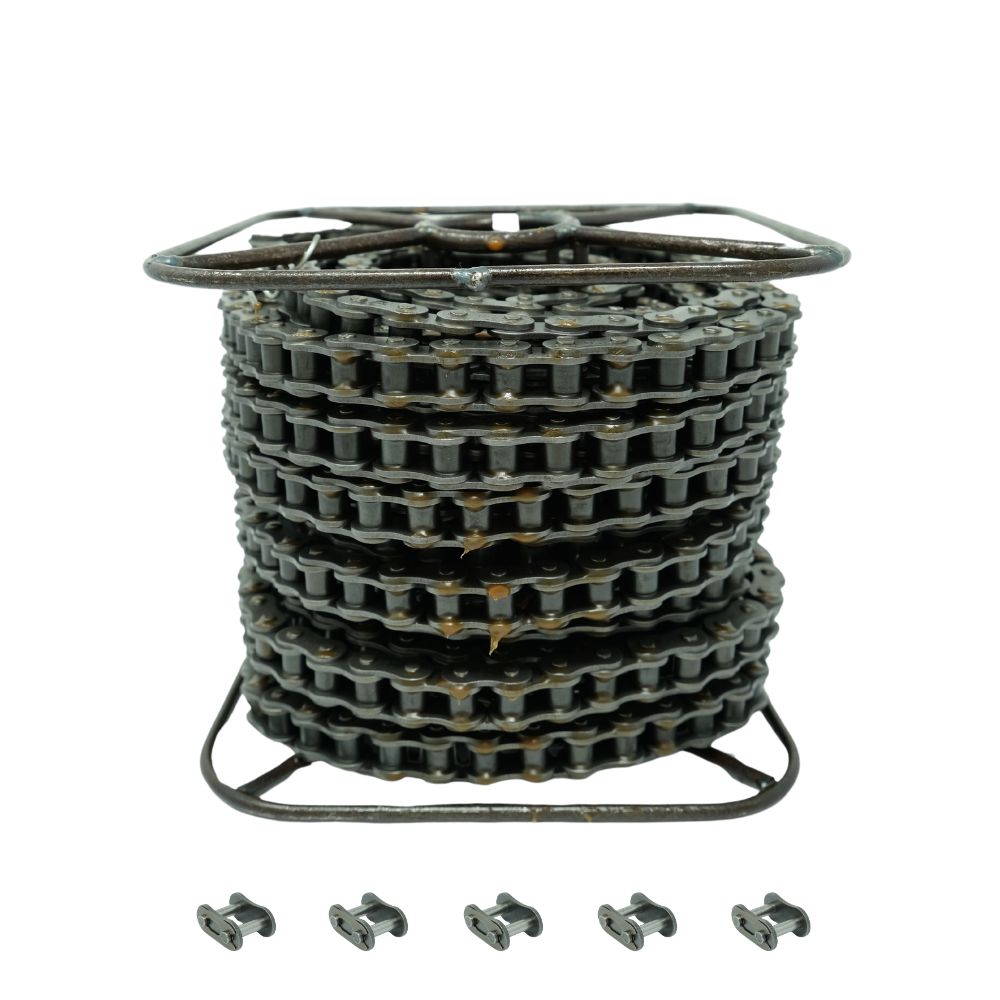

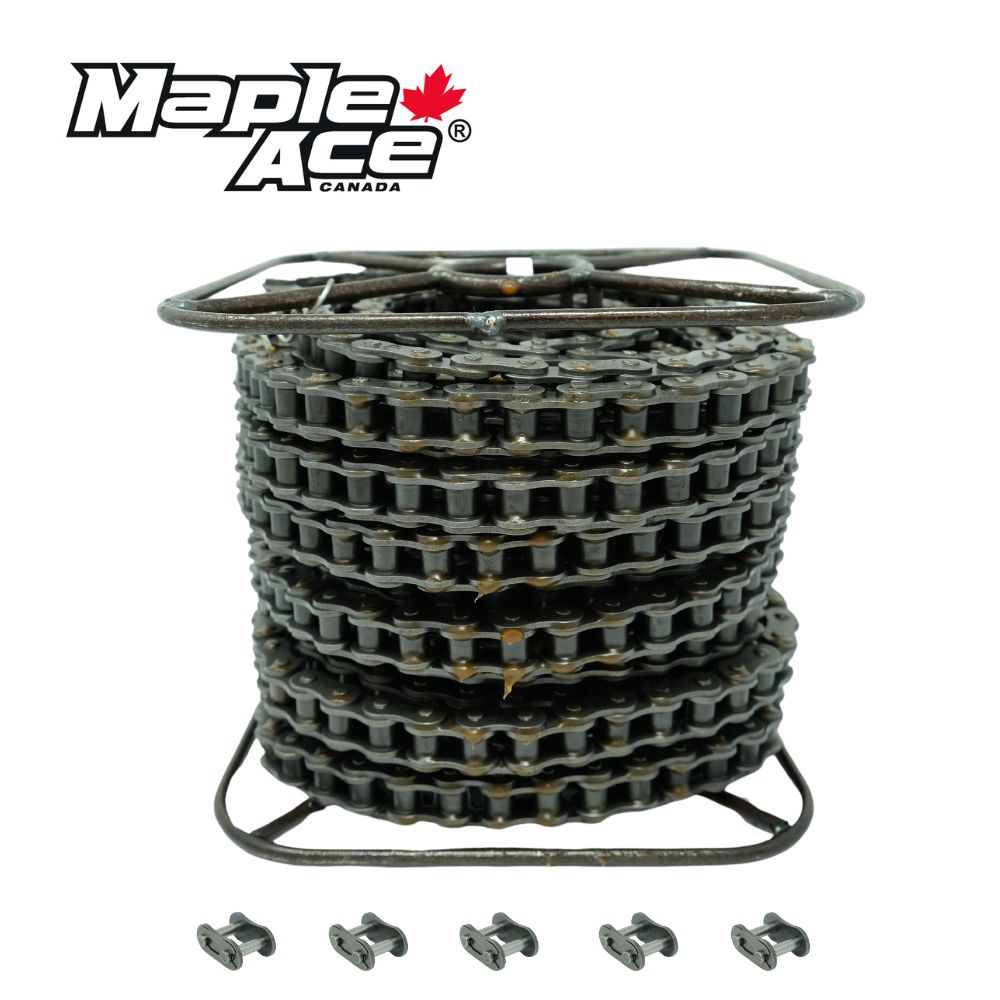

  • Every package contains a 50-feet chain and 5 connecting links. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  80H-1
ANSI Chain number  80H-1
BS/ISO Chain number  16AH-1
Number of Strands
Chain Pitch Metric  25.4 mm
Chain Pitch Inch  1 in
Roller diameter d1 max Metric  15.88 mm
Roller diameter d1 max Inch  0.63 in
Width between inner plates b1 min Metric  15.75 mm
Width between inner plates b1 min Inch 0.62 in
Pin diameter d2 max Metric  7.92 mm
Pin diameter d2 max Inch  0.31 in
Pin length L max Metric  36.20 mm
Pin length L max Inch  1.43 in
Pin length Lc max Metric  37.70 mm
Pin length Lc max Inch  1.49 in
Plate height h2 max Metric  24 mm
Plate height h2 max Inch  0.94 in
Plate thickness T max Metric  4 mm
Plate thickness T max Inch  0.13 in
Ultimate Tensile Strength Q min  56.7 kN
Average Tensile Strength Q0  71.4 kN
Weight (kg/m)  3.10 kg
Weight (lbs/ft)  2.08 lbs
Material  Carbon/Alloy Steel
  • Industrial Machinery
  • Conveyor Systems
  • Packaging Equipment
  • Agricultural Equipment
  • Construction and Mining Equipment
  • Material Handling Equipment
  • Food and Beverage Industry
  • Textile Industry
  • Power Transmission Systems
  • Automated Manufacturing Systems
