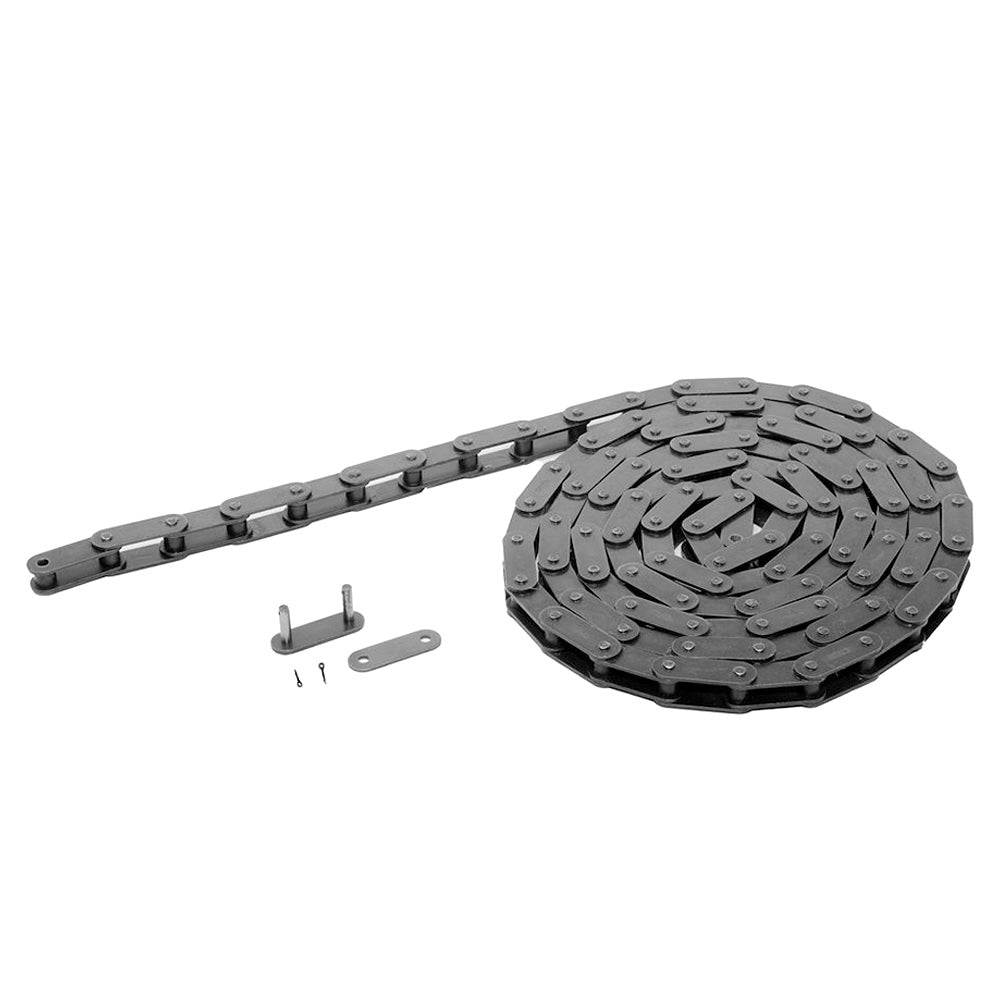

CA620 Agricultural Roller Chain 10 Feet plus Connecting Master Link

: In stock

: Chain

: MAPLE ACE

Regular price $89.85 USD

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

  • CA620 Agricultural Roller Chain is a 1-21/32 inch pitch
  • Interchange to CA620, CA620D
  • Agricultural Roller Chain is characterized by its durability, resistance to wear, and ability to withstand the harsh conditions often encountered in agricultural environments, such as exposure to dirt, debris, and varying weather conditions.
  • Application: Combine Harvesters, Balers, Forage Harvesters, Manure Spreaders, Planters and Seeders, Grain Handling Equipment, Crop Processing Equipment, Conveyor and Elevators Systems in Agriculture
  • Specializing in the Exclusive Production of Chains with High Performance and Long Life.

Description

  • All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
  • Higher tensile strength for superior impact resistance
  • Heat treatment to achieve ideal hardness

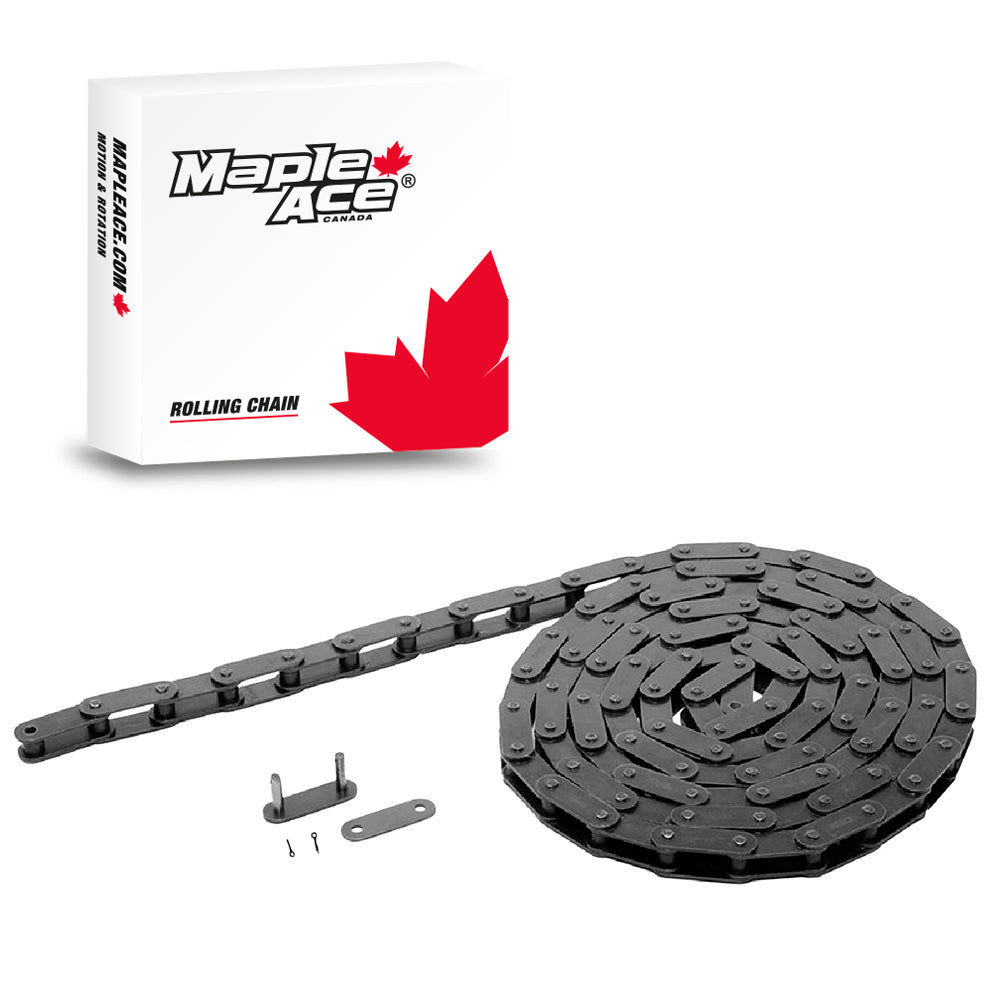

  • Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store
  • The chain can be cut to desired length using a Chain Breaker

Item  CA620
Number of Strands
Chain Pitch Metric  42.01 mm
Chain Pitch Inch  1.6539 in
Roller diameter d1 max Metric  17.91 mm
Roller diameter d1 max Inch  0.705 in
Width between inner plates b1 min Metric  24.51 mm
Width between inner plates b1 min Inch  0.965 in
Pin diameter d2 max Metric  7.19 mm
Pin diameter d2 max Inch  0.283 in
Pin length L max Metric  41.8 mm
Pin length L max Inch  1.645 in
Pin length Lc max Metric  45.2 mm
Pin length Lc max Inch  1.78 in
Plate height h2 max Metric  20.20 mm
Plate height h2 max Inch  0.795 in
Plate thickness T max Metric  3.25 mm
Plate thickness T max Inch  0.128 in
Ultimate Tensile Strength Q min  39.10/8.886 kN/LB
Average Tensile Strength Q0  55.10 kN
Weight (kg/m)  2.350 kg
Weight (lbs/ft)  1.58 lbs
Material  Carbon/Alloy Steel
  • Combine Harvesters
  • Grain and Corn Harvesters
  • Threshing and Separation
  • Balers, Round and Square Balers
  • Forage Harvesters
  • Manure Spreaders
  • Planters and Seeders
  • Grain Handling Equipment
  • Crop Processing Equipment
  • Conveyor Systems in Agriculture
  • Tillage and Soil Preparation Equipment
  • Conveyor and Elevators Systems in Agriculture
