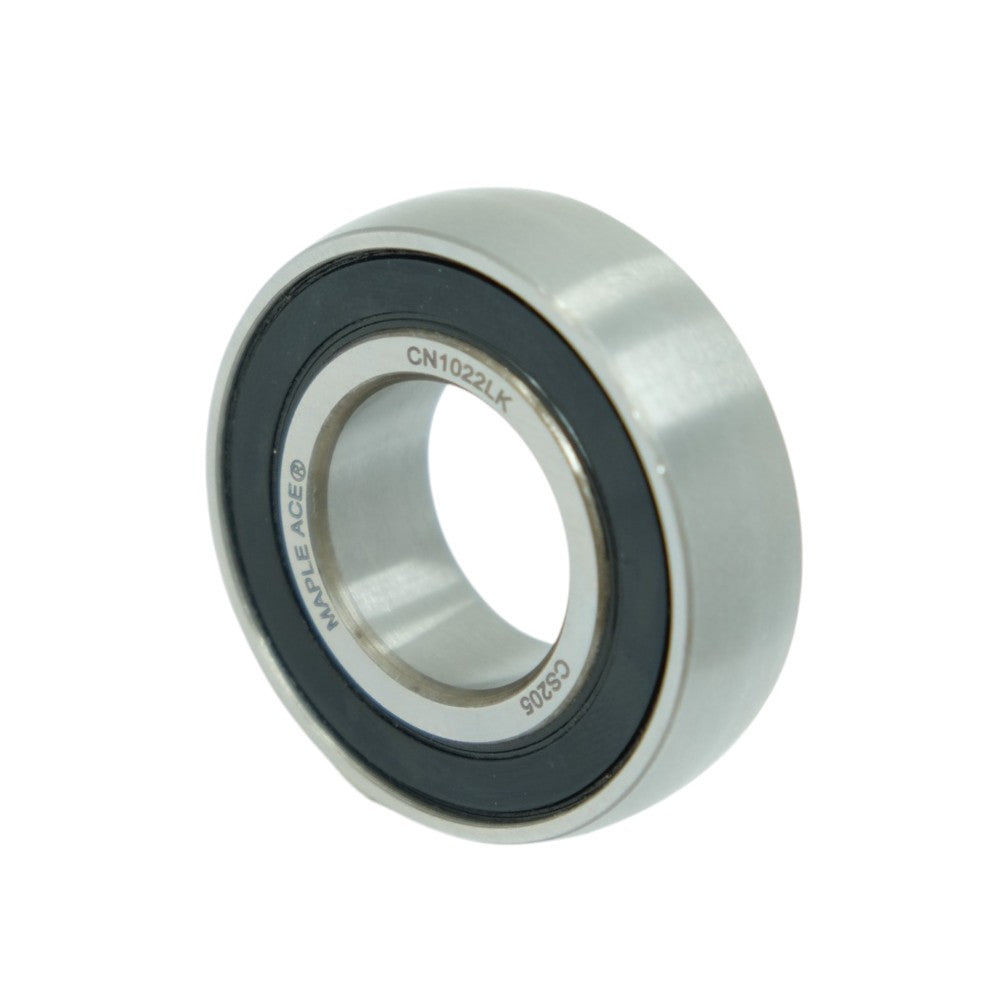

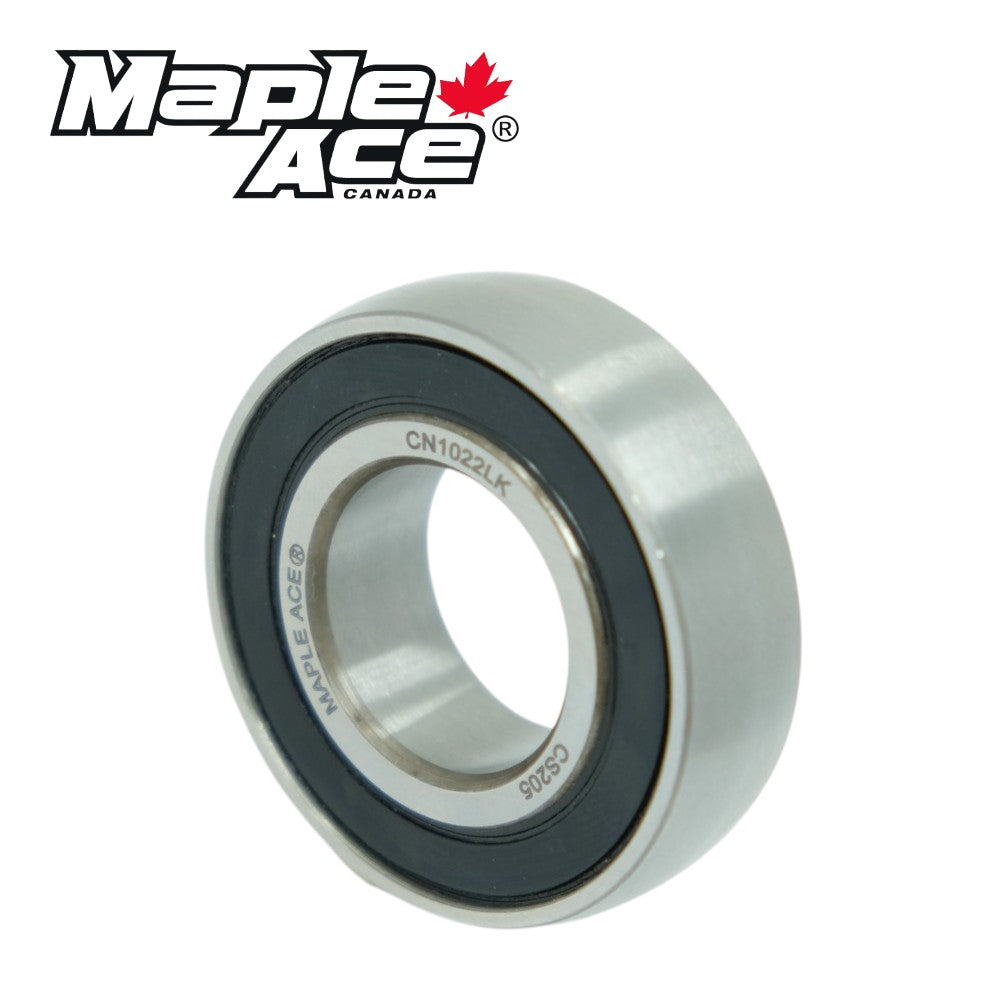

CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR
CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR
CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR
CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR
CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR
CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR

CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR

: In stock

: Ball Bearings

: MAPLE ACE

$5.95 USD

This INSERT BEARING has a Spherical Surface Seal on both sides to Protect the Bearing from Dust or any Possible Contamination Bearing...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This INSERT BEARING has a Spherical Surface
  • Seal on both sides to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Doesn't Have Groove and Oil Hole to Relubricate

Item  CS205
Series  CS200
Outer ring type  Spherical
Inner Diameter Metric  25.00 mm
Inner Diameter Inch  0.984 in
Outside Diameter Matric  52.00 mm
Outside Diameter Inch 1.22 in
Width Inner Ring Matric  15.00 mm
Width Inner Ring Inch  1.220 in
Width Outer Ring Matric  15.00 mm
Width Outer Ring Inch 0.590 in
Dynamic Load Rating Cr  14000 N
Static Load Rating Cor 7800 N
Limiting Speed  7000 r/min
Clearance  Normal
Closures  Shield on both sides
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Relubrication feature  Without
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Eccentric Locking Collar
Weight  0.120 KG
ManufacturerPart Number
FAG76205-2RS
FYHCB205
INA76205-2RS
KoyoCB205
NSKCS205DDU
NTNCS205LLU
SKF1726205-2RS1
SNR6205SEE
TIMKEN205PPB

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper

CS205 1726205-2RS Insert Bearing 25mm Bore, Spherical OD, with standard IR

$5.95
