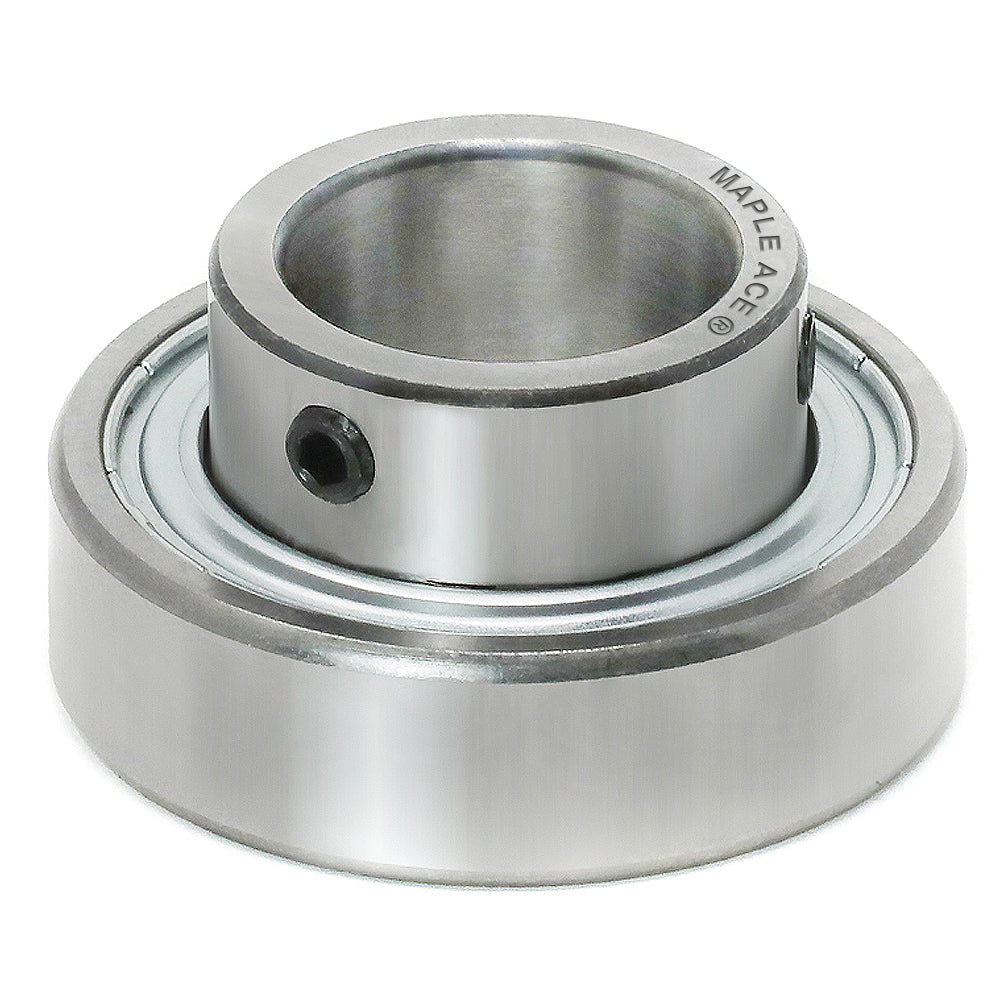

CSB205-16 Insert Bearing 1" Bore, Cylindrical OD, Set Screws

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $10.39 USD

This INSERT BEARING has a Cylindrical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

  • CSB205-16 Insert bearing with set screws locking and narrow inner ring, Outer ring type Cylindrical, Bore Diameter Metric 25.4 mm, Bore Diameter Inch 1 in, Outside Diameter Matric 52.00 mm, Outside Diameter Inch 2.0472 in, Width Inner Ring Matric 31.00 mm, Width Inner Ring Inch 1.220 in, Width Outer Ring Matric 15.00 mm, Width Outer Ring Inch 0.590 in, Dynamic Load Rating Cr 14000 N, Static Load Rating Cor 7800 N, Limiting Speed 7000 r/min, Lubrication Temperature -20°C to +160°C, Material Gcr15.
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

  • This INSERT BEARING has a Cylindrical Surface
  • Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Doesn't Have Groove and Oil Hole to Relubricate
  • Has a Set Screw Lock on its surface for securing the shaft

Item  CSB205-16
Series  CSB200
Outer ring type  Cylindrical
Inner Diameter Metric  25.4 mm
Inner Diameter Inch  1 in
Outside Diameter Matric  52.00 mm
Outside Diameter Inch 2.0472 in
Width Inner Ring Matric  31.00 mm
Width Inner Ring Inch  1.220 in
Width Outer Ring Matric  15.00 mm
Width Outer Ring Inch 0.590 in
Dynamic Load Rating Cr  14000 N
Static Load Rating Cor 7800 N
Limiting Speed  7000 r/min
Clearance  Normal
Closures  Shield on both sides
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Relubrication feature  Without
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Eccentric Locking Collar
Weight  0.160 KG
ASAHI BR5-16
FYH SBB205-16
Koyo SBB205-16
NACHI BR5-16
NSK UBR205-16S
NTN ASS205-100
RHP 1325-1
SKF YAT205-100 CW
SNR CUS205-16
TIMKEN  YA100RR

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
