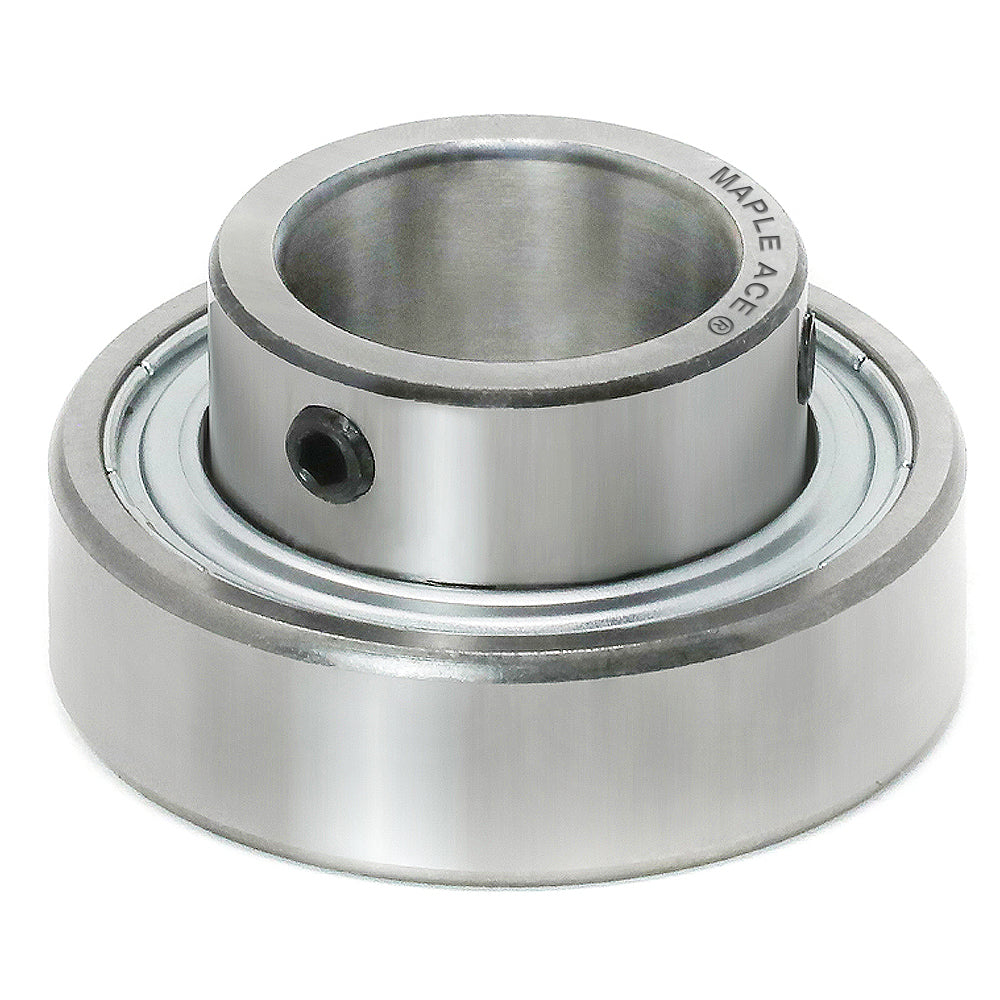

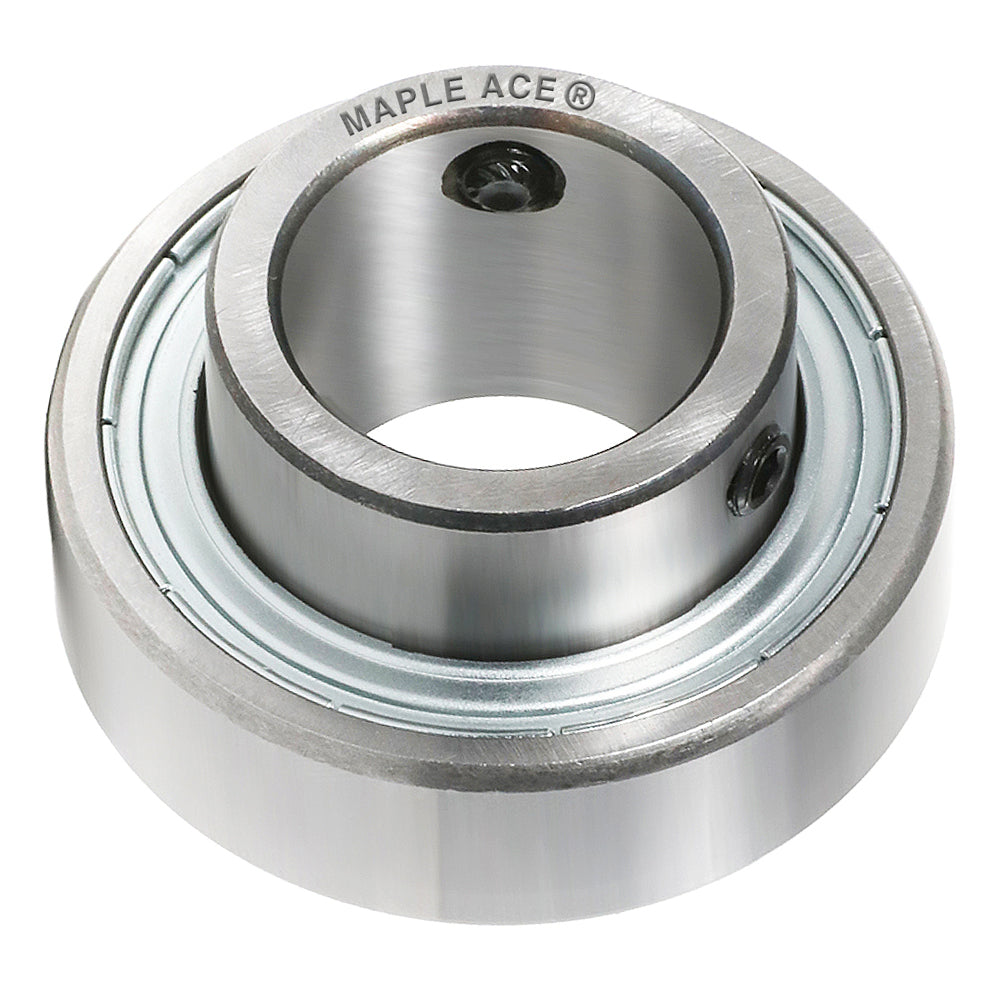

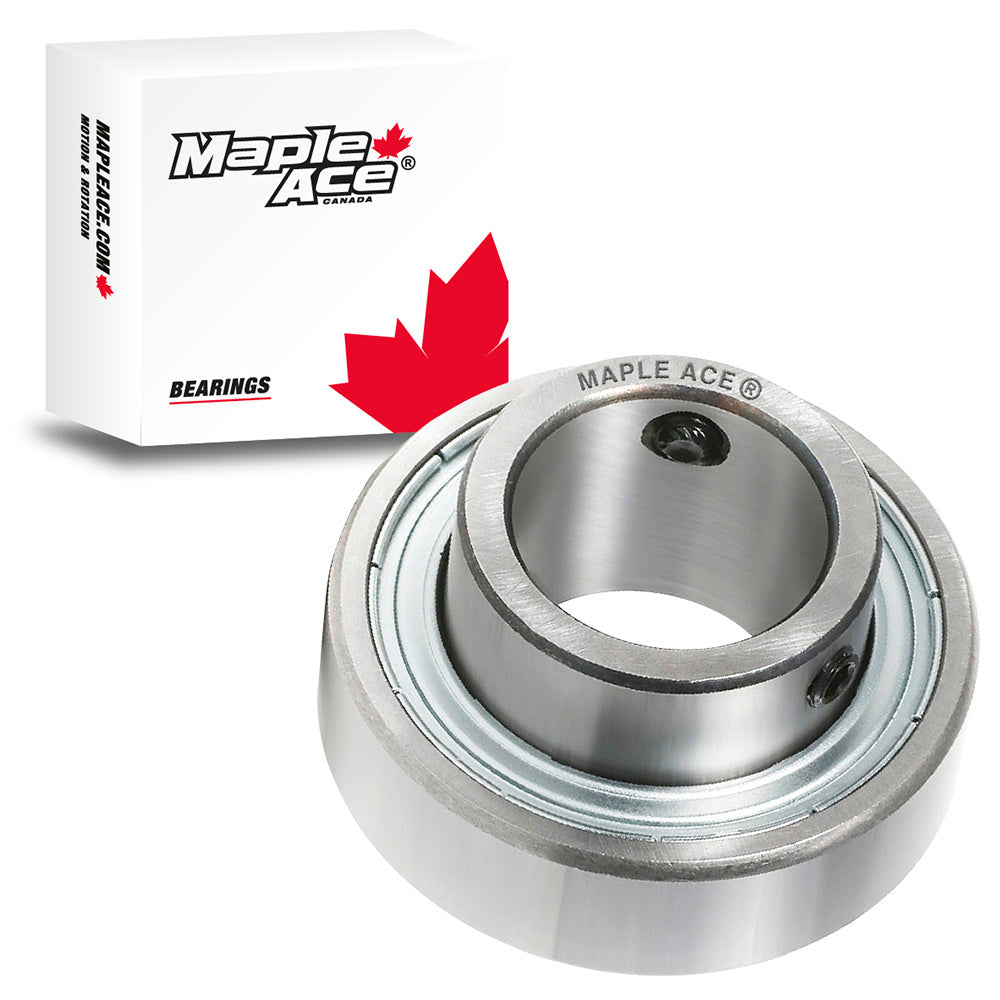

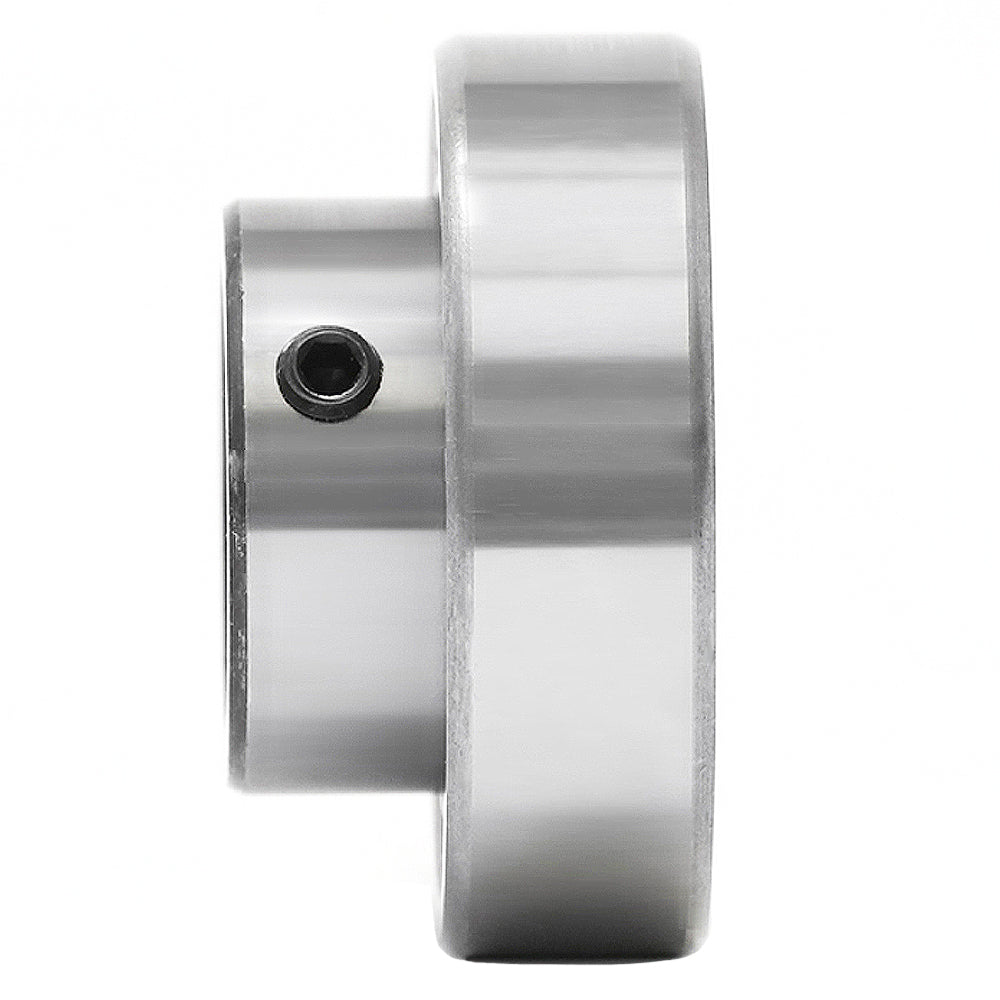

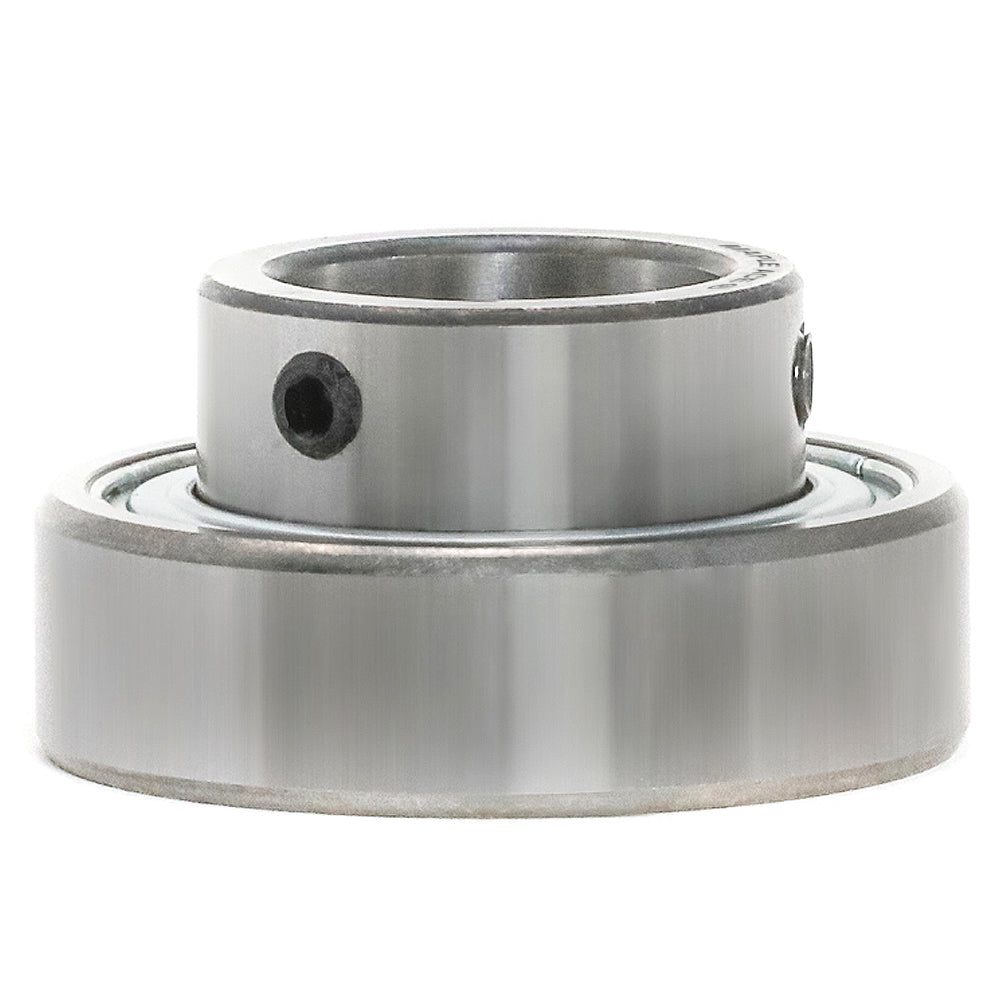

CSB206-20 Insert Bearing 1-1/4" Bore, Cylindrical OD, Set Screws

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $15.99 USD

This INSERT BEARING has a Cylindrical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

  • CSB206-20 Insert bearing with set screws locking and narrow inner ring, Outer ring type Cylindrical, Bore Diameter Metric 31.75 mm, Bore Diameter Inch 1-1/4 in, Outside Diameter Matric 62.00 mm, Outside Diameter Inch 2.4409 in, Width Inner Ring Matric 30.20 mm, Width Inner Ring Inch 1.189 in, Width Outer Ring Matric 18.00 mm, Lubrication Temperature -20°C to +160°C Rolling Element Indicator Ball, Material Gcr15.
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

  • This INSERT BEARING has a Cylindrical Surface
  • Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Doesn't Have Groove and Oil Hole to Relubricate
  • Has a Set Screw Lock on its surface for securing the shaft

Item  CSB206-20
Series  CSB200
Outer ring type Cylindrical
Inner Diameter Metric  31.75 mm
Inner Diameter Inch  1-1/4 in
Outside Diameter Matric 62.00 mm
Outside Diameter Inch  2.4409 in
Width Inner Ring Matric  30.20 mm
Width Inner Ring Inch  1.189 in
Width Outer Ring Matric  18.00 mm
Width Outer Ring Inch  0.709 in
Dynamic Load Rating Cr  19500 N
Static Load Rating Cor  11200 N
Limiting Speed  6300 r/min
Clearance  Normal
Closures  Shield on both sides
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Relubrication feature  Without
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Set Screw
Weight  0.240 KG
ASAHI BR6-20
FYH SBB206-20
Koyo SBB206-20
NACHI BR6-20
NSK UBR206-20S
NTN ASS206-104
RHP 1330-1-1/4
SKF YAT206-103 CW
SNR CUS206-20
TIMKEN  YA103RR2

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
