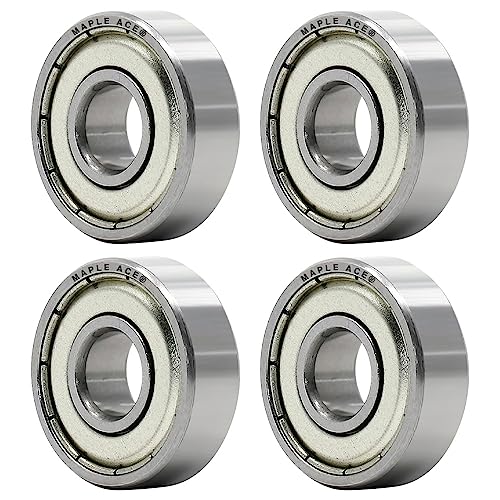

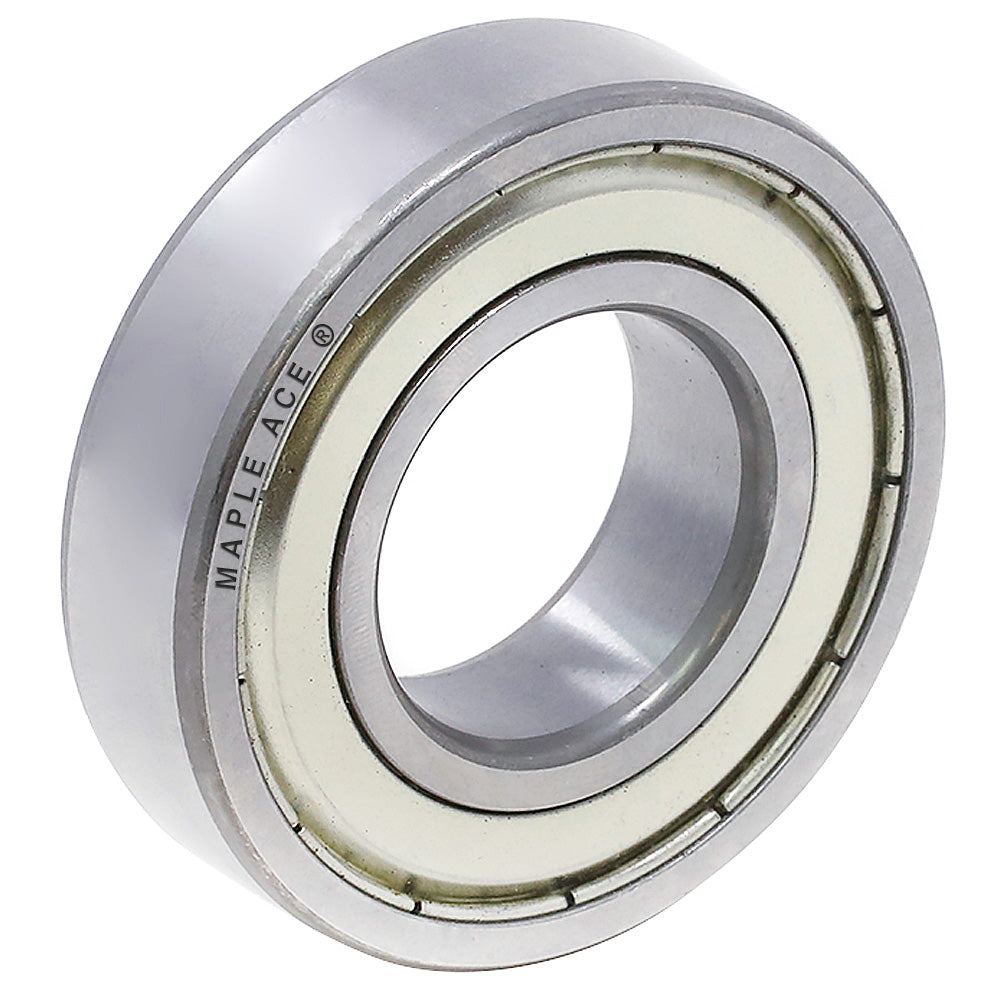

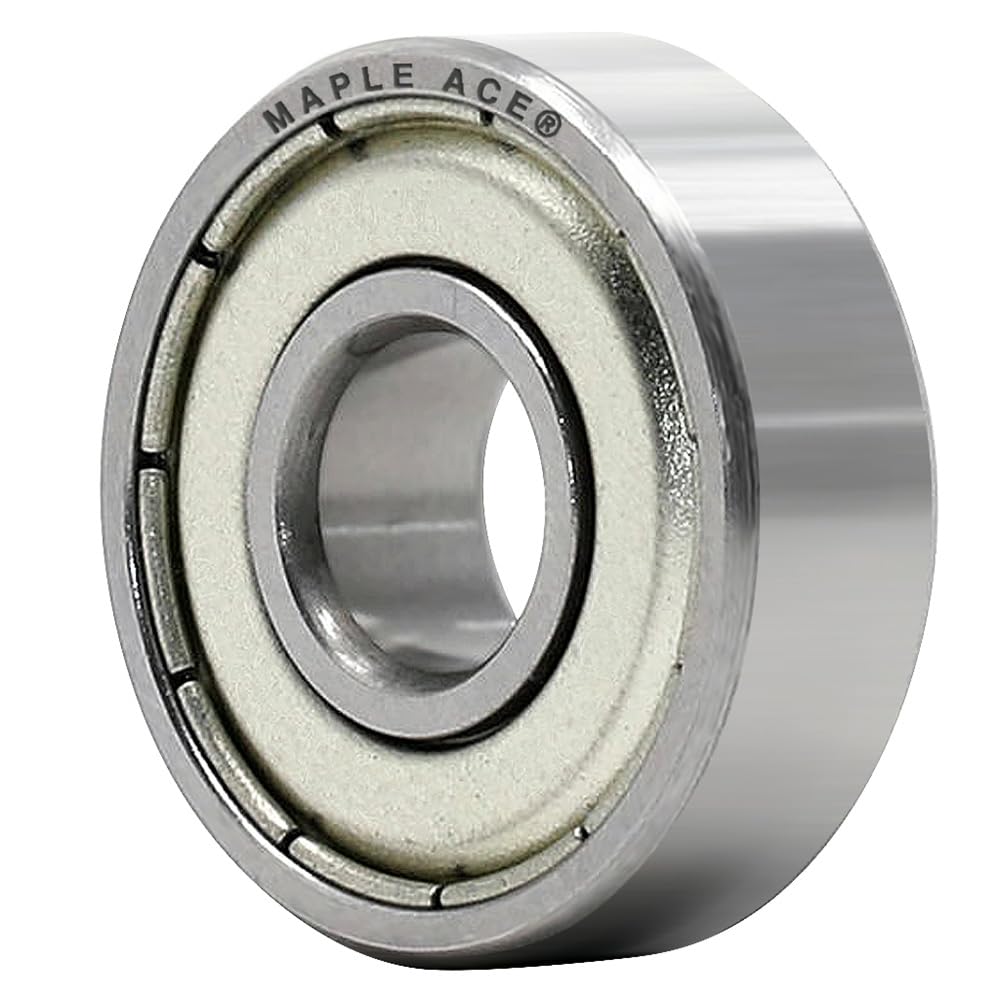

R4-ZZ Ball Bearing 1/4" x 5/8" x 0.196" R4 ZZ Metal Shielded
Regular price $0.00 USD
Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile. They feature low friction and...
- R4 ZZ Deep Groove Ball Bearing dimensions: Bore Diameter 1/4 in, Outside Diameter 5/8 in, Width 0.196 in. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
- Interchange to R4, R4 Z, R4 ZR, R4 2ZR, R4 2Z, R4 ZZE, 77R4, R4FF, S1KDD7, RI4-ZZ, RI-4ZZ, R4CHH, R4SS, RF8020X, R4PP, R4.2Z, R4SS
- This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to protect the bearing from dust or contamination. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
- Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
Description
- Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
- They feature low friction and are optimized for:
- Low noise
- Low vibration
- High rotational speeds
- Capable of accommodating both radial and axial loads in both directions.
- Easy to mount, requiring less maintenance compared to other bearing types.
-
The integral sealing system prolongs bearing service life by:
- Keeping lubricant inside the bearing
- Preventing contaminants from entering the bearing
Item | R4-ZZ |
Bearing Type | R |
Bore Diameter | 6.35 mm |
Outside Diameter | 15.875 mm |
Width | 4.978 mm |
Width Inner Ring | 4.978 mm |
Width Outer Ring | 4.978 mm |
Dynamic Load Rating Cr | 852 N |
Static Load Rating Cor | 315 N |
Limiting Speed | 48000 r/min |
Clearance | Normal |
Tolerance Inner Ring | 0 to -7 μm |
Tolerance Outer Ring | 0 to -8 μm |
Tolerance Classes | P5 |
Cage | Metal |
Closures | Shield on both sides |
Lubrication Type | Grease Chevron |
Lubrication Temperature | -30°C to +180°C |
Rolling Element Indicator | Ball |
Material | Gcr15 |
Product Weight | 4 GR |
FAFNIR | S1KDD7 |
FAG | R4-2ZR |
INA | R4-2ZR |
Koyo | EE1.1/2-ZZ |
NACHI | R4-ZZ |
NSK | R4ZZ |
NTN | R4ZZ |
RHP | KLNJ1/4-ZZ |
SKF | R4-ZZ-W64, D/W R4-ZZ |
TIMKEN | R4-ZZ |
You can use this MINIATURE DEEP GROOVE BALL BEARING as a Replacement Part for:
