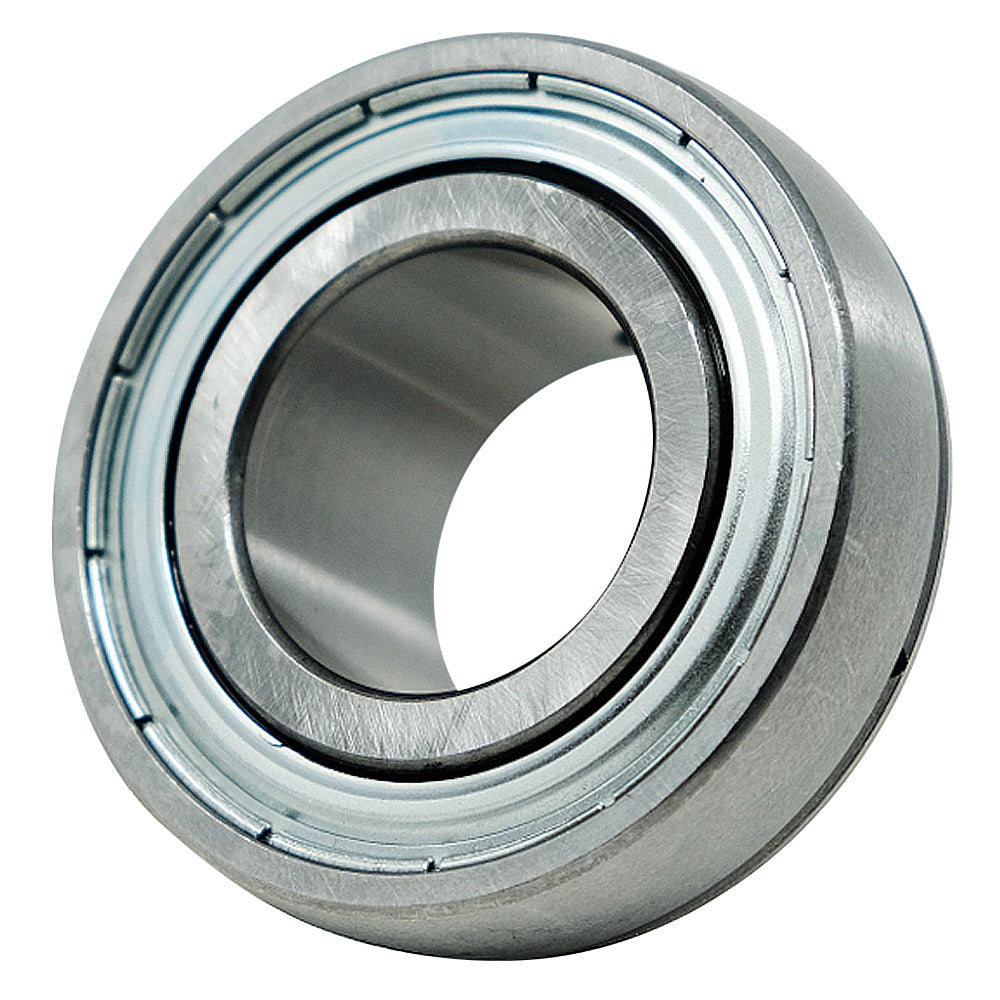

SB202-10 Insert Bearing 5/8" Bore, Spherical OD, Set Screws

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $8.81 USD

This INSERT BEARING has a Spherical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

  • SB202-10 Insert bearing with set screws locking and narrow inner ring, Outer ring type Spherical, Bore Diameter Metric 15.875 mm, Bore Diameter Inch 5/8 in, Outside Diameter Matric 40.00 mm, Outside Diameter Inch 1.575 in, Width Inner Ring Matric 22.00 mm, Width Inner Ring Inch 0.866 in, Width Outer Ring Matric 12.00 mm, Width Outer Ring Inch 0.472 in, Dynamic Load Rating Cr 10100 N, Static Load Rating Cor 4750 N, Limiting Speed 22300 r/min, Lubrication Temperature -20°C to +160°C, Material Gcr15.
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

  • This INSERT BEARING has a Spherical Surface
  • Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Has a Groove and Oil Hole to Relubricate

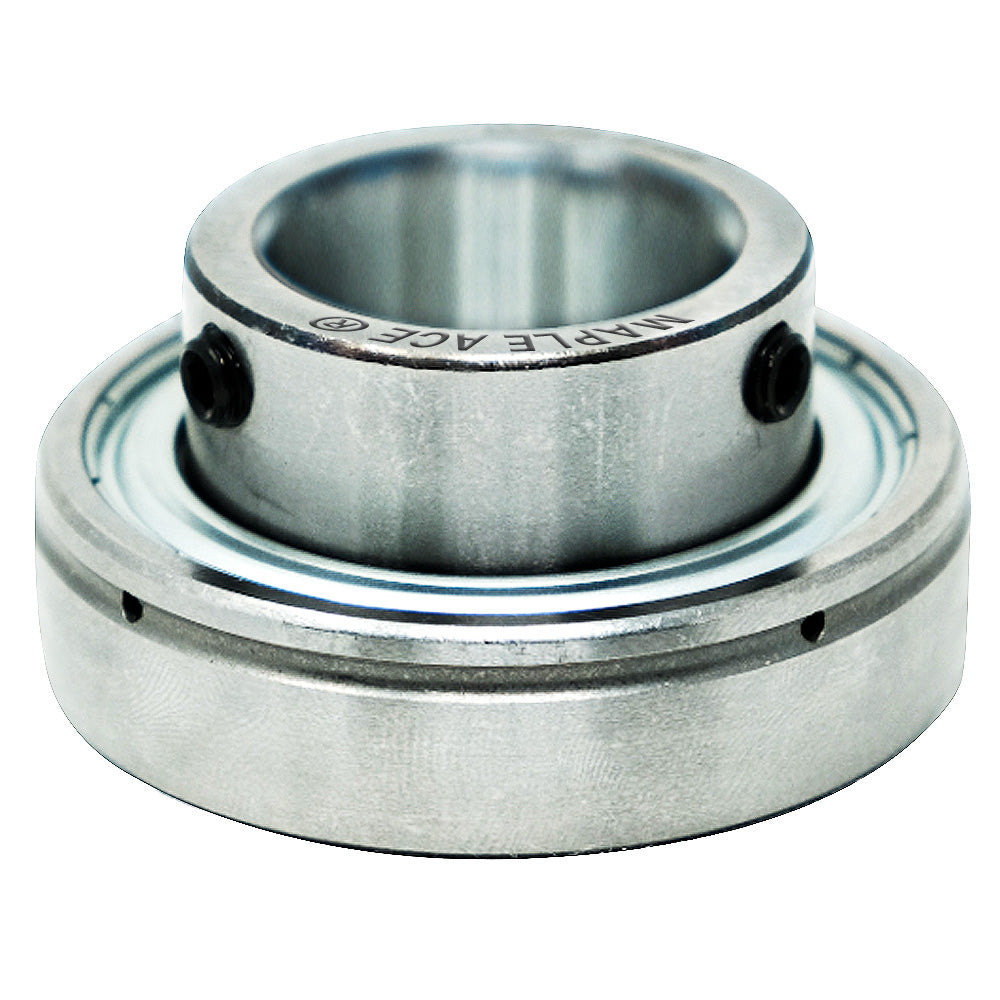

  • Has a Set Screw Lock on its surface for securing the shaft

Item  SB202-10
Series  SB200
Outer ring type  Spherical
Inner Diameter Metric  15.875 mm
Inner Diameter Inch  5/8 in
Outside Diameter Matric 40.00 mm
Outside Diameter Inch  1.575 in
Width Inner Ring Matric  22.00 mm
Width Inner Ring Inch  0.866 in
Width Outer Ring Matric  12.00 mm
Width Outer Ring Inch  0.472 in
Dynamic Load Rating Cr  10100 N
Static Load Rating Cor  4750 N
Limiting Speed  22300 r/min
Clearance  Normal
Closures  Shield on both sides
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Set Screw
Weight  0.080 KG
ASAHI B2-10
FAG GAY010-NPPB
FYH SB202-10
INA GAY010-NPPB
Koyo SB202-10
NACHI B2-10
NSK UB202-10S
NTN AS202-010
SKF YAT-202-010
SNR US202-10G2
TIMKEN  GYA010RRB

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
