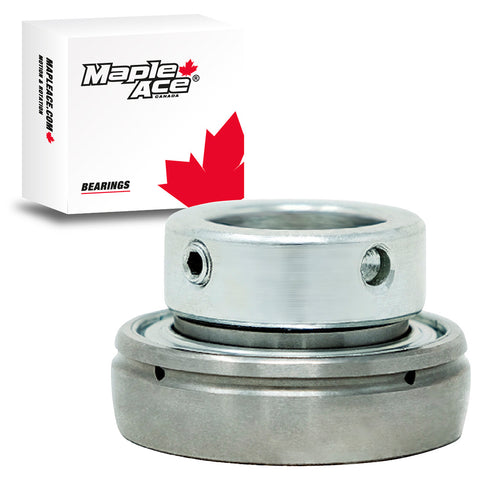

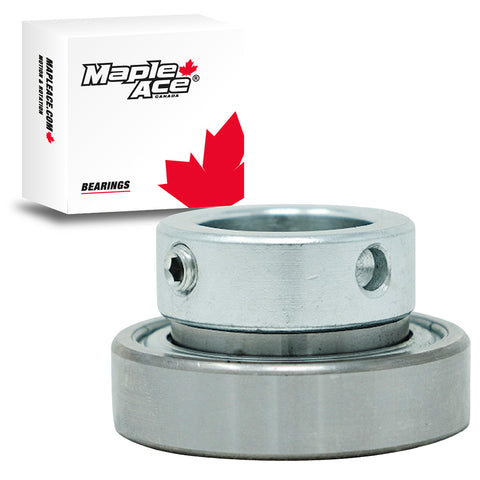

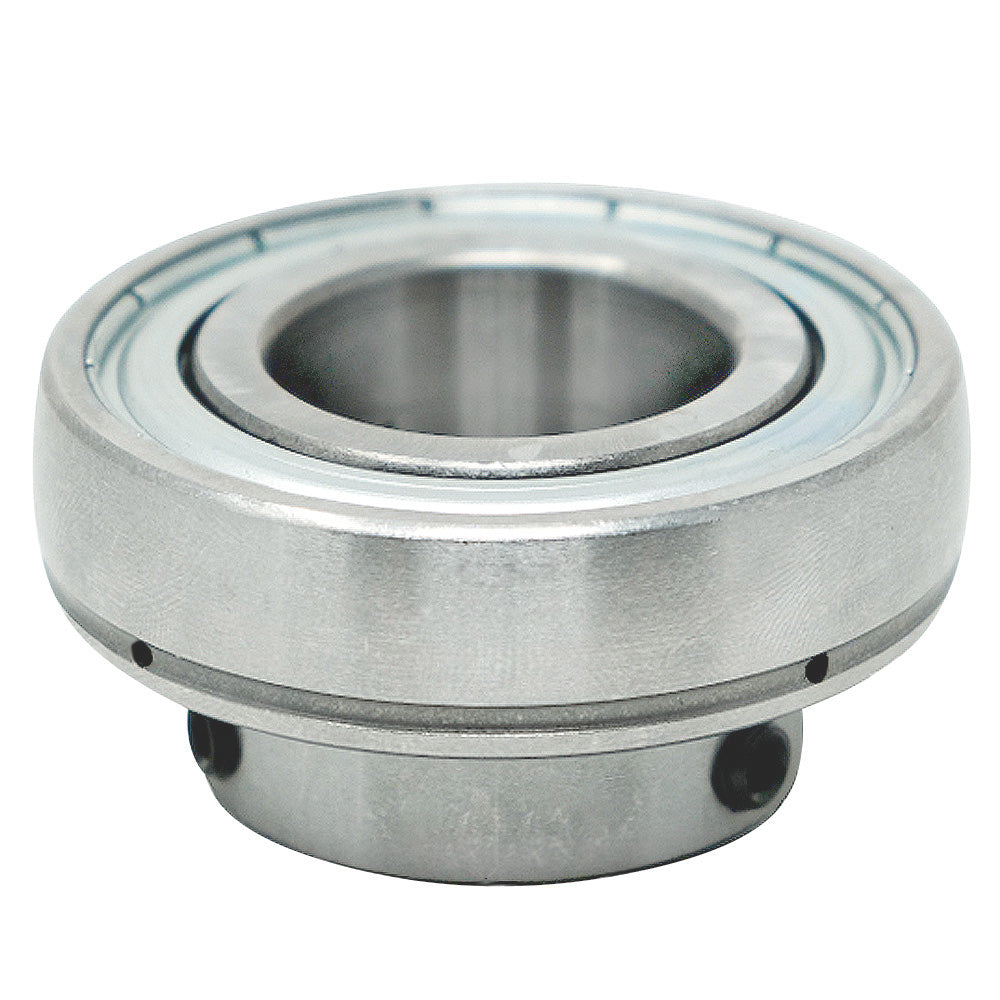

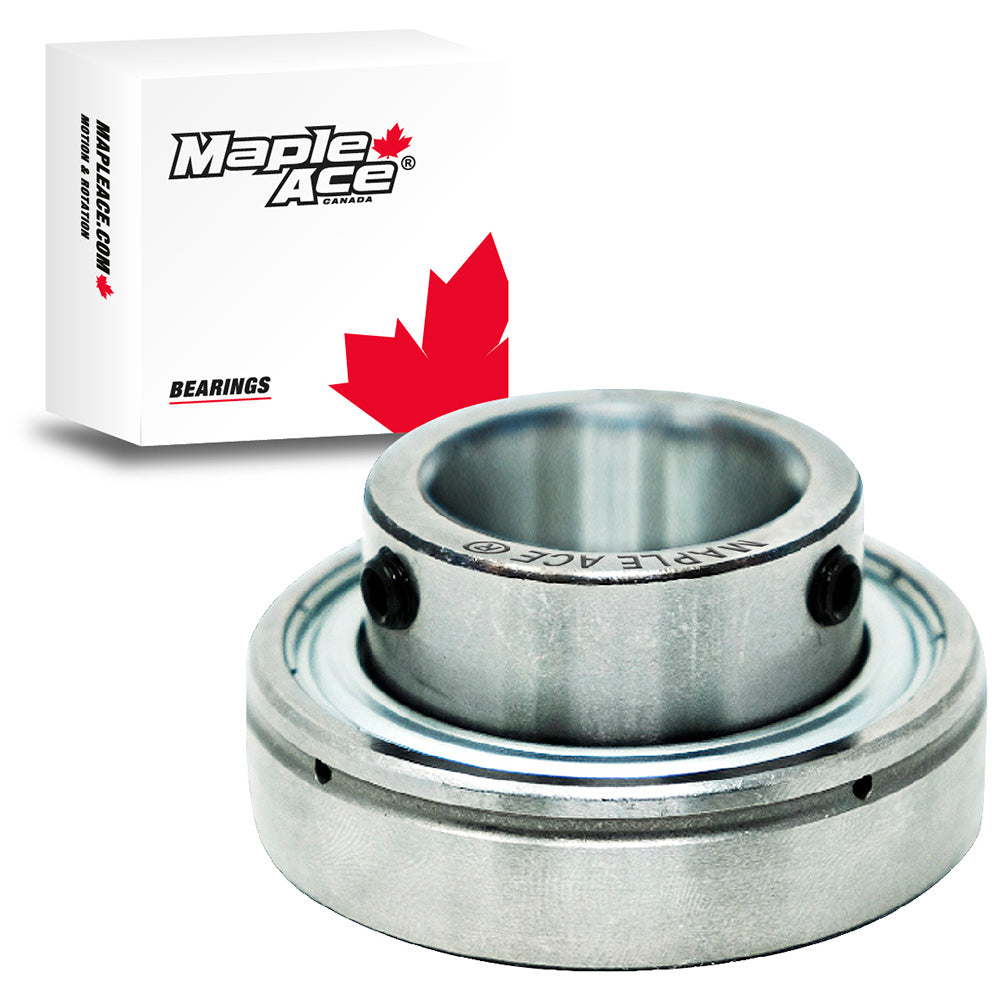

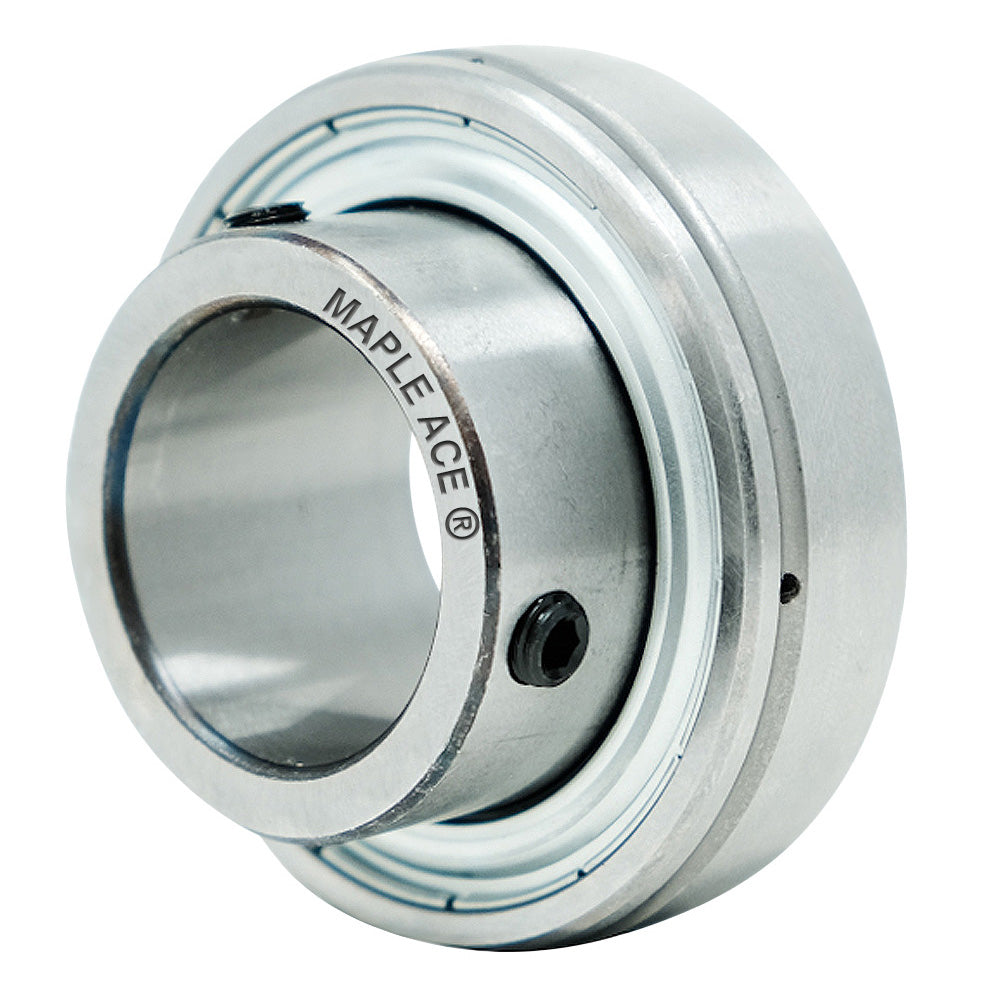

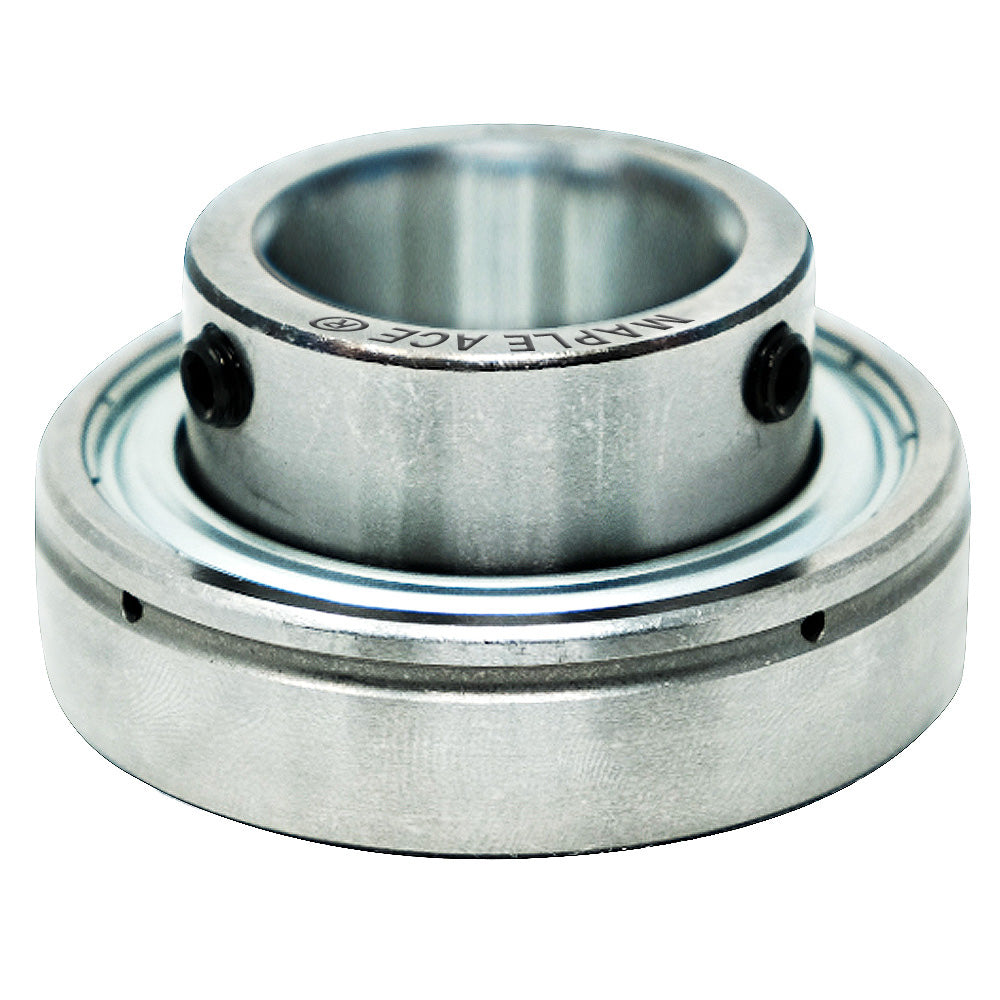

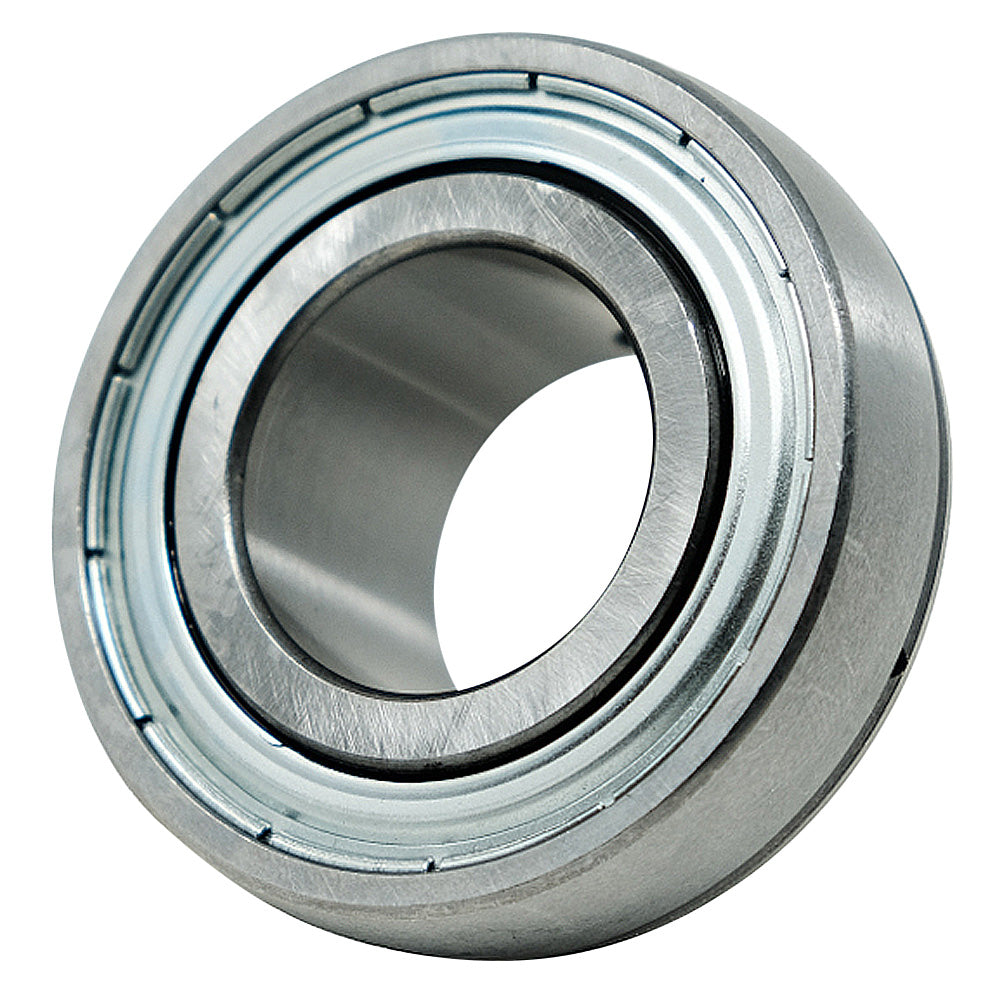

SB205 Insert Bearing 25mm Bore, Spherical OD, Set Screws

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $9.83 USD

This INSERT BEARING has a Spherical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

  • SB205 25mm Insert bearing with set screws locking and narrow inner ring, Outer ring type Spherical, Bore Diameter Metric 25.00 mm, Bore Diameter Inch 0.984, in Outside Diameter Matric 52.00 mm, Outside Diameter Inch 2.0472 in, Width Inner Ring Matric 27.20 mm, Width Inner Ring Inch 1.071 in, Width Outer Ring Matric 15.00 mm, Width Outer Ring Inch 0.5906 in, Dynamic Load Rating Cr 14000 N, Static Load Rating Cor 7800 N, Limiting Speed 7000 r/min, Lubrication Temperature -20°C to +160°C, Material Gcr15.
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED

Description

  • This INSERT BEARING has a Spherical Surface
  • Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
  • Has a Groove and Oil Hole to Relubricate
  • Has a Set Screw Lock on its surface for securing the shaft

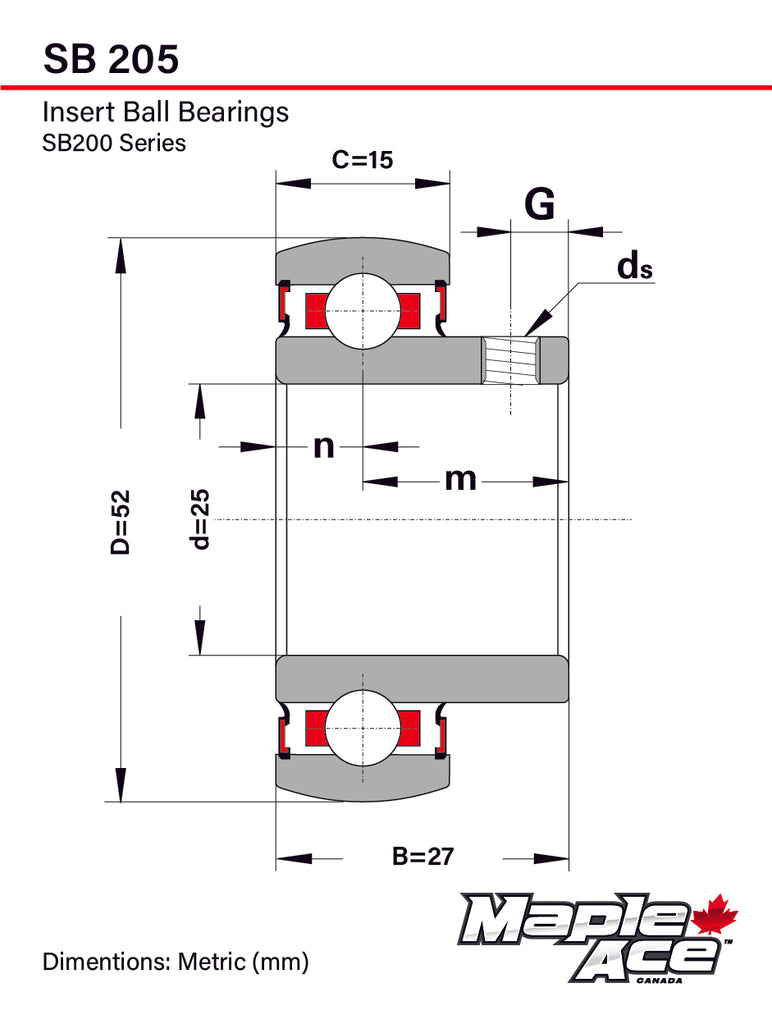

Item  SB205
Series  SB200
Outer ring type Spherical
Inner Diameter Metric  25.00 mm
Inner Diameter Inch  0.984 in
Outside Diameter Matric   52.00 mm
Outside Diameter Inch  2.0472 in
Width Inner Ring Matric  27.20 mm
Width Inner Ring Inch  1.071 in
Width Outer Ring Matric  15.00 mm
Width Outer Ring Inch  0.5906 in
Dynamic Load Rating Cr  14000 N
Static Load Rating Cor  7800 N
Limiting Speed  7000 r/min
Clearance  Normal
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Set Screw
Weight  0.140 KG
ASAHI B5
FAG GAY25-NPPB
FYH SB205
INA GAY25-NPPB
Koyo SB205
NACHI B5
NSK UB205S
NTN AS205
RHP 1225-25G
SKF YAT205
SNR US205G2
TIMKEN  GYAE25RRB

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
