SB208-24 Insert Bearing 1-1/2in Bore, Spherical OD, Set Screws

SB208-24 Insert Bearing 1-1/2" Bore, Spherical OD, Set Screws

Availability: In stock

Product type: Ball Bearings

Vendor: MAPLE ACE

Regular price $19.95 USD

This INSERT BEARING has a Spherical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is Pre-Lubricated...

Exclusively Produced by High Standard Factories
Ideal for Replacement and OEM Applications
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
100% SATISFACTION GUARANTEED

Description

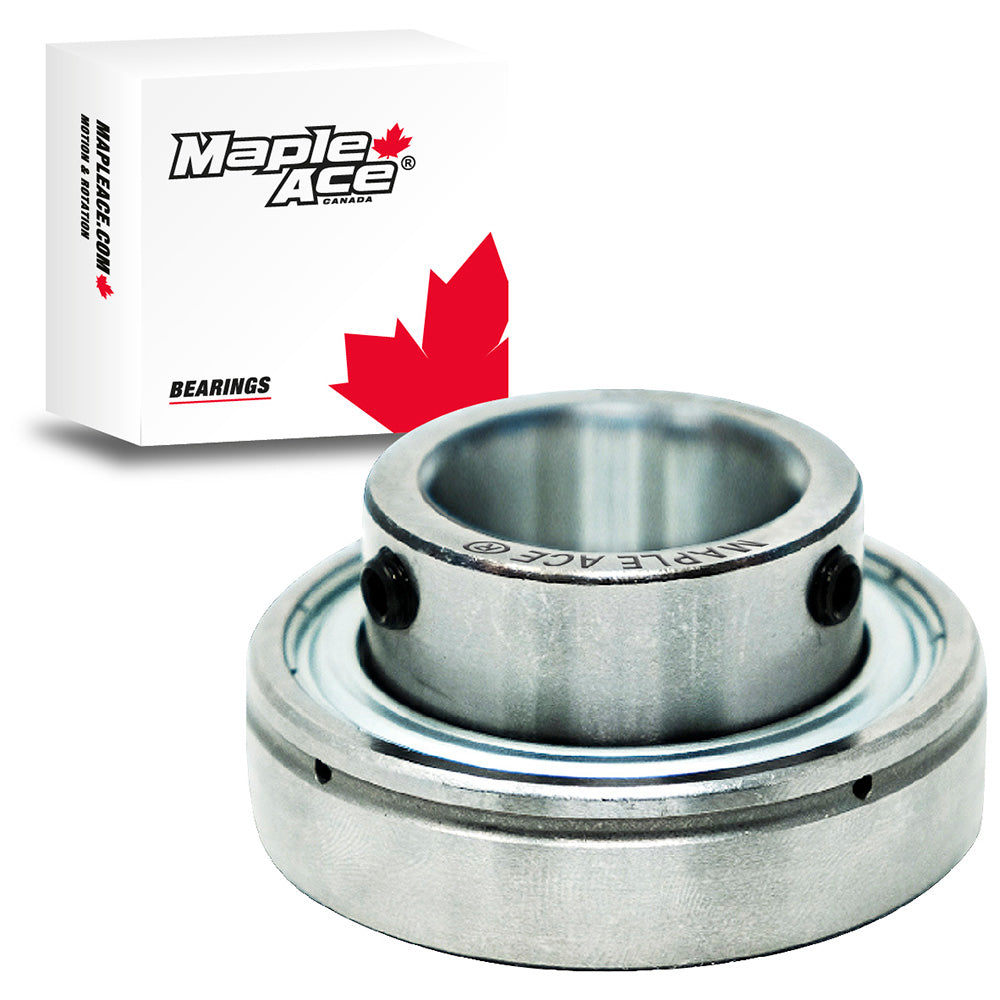

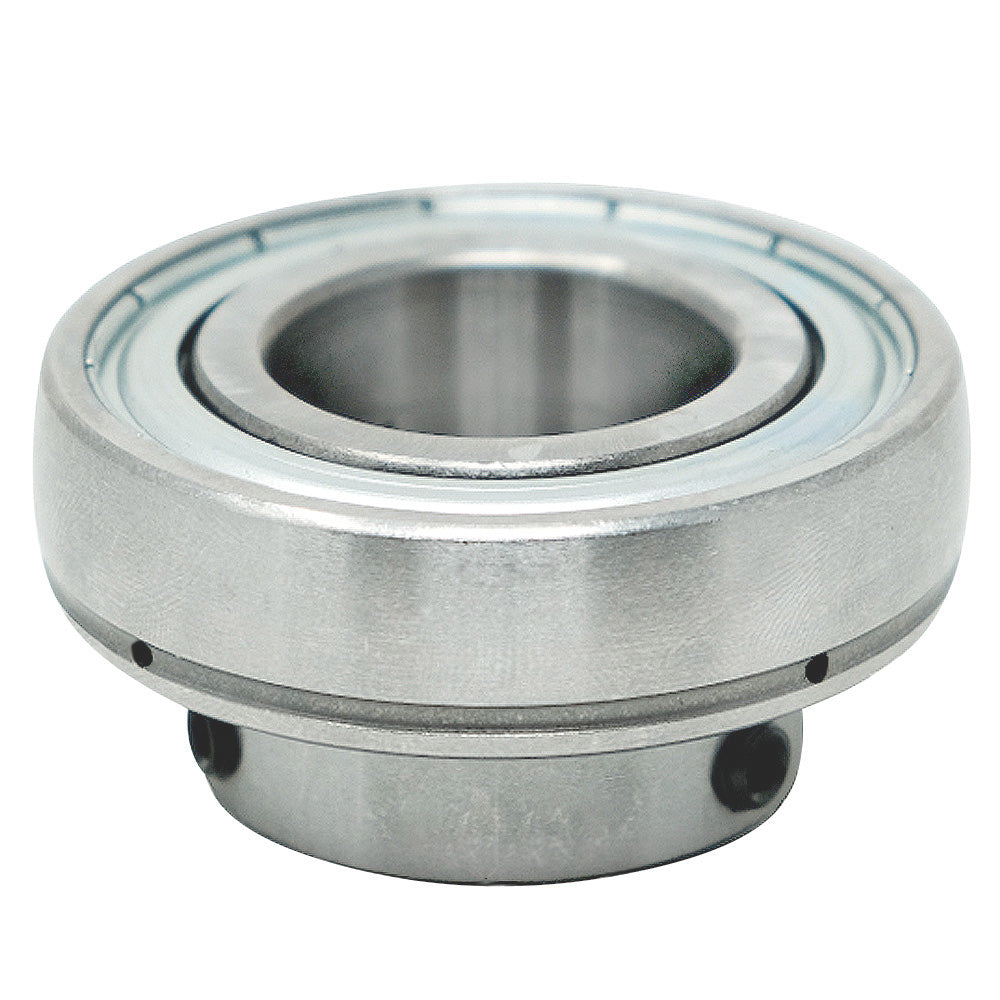

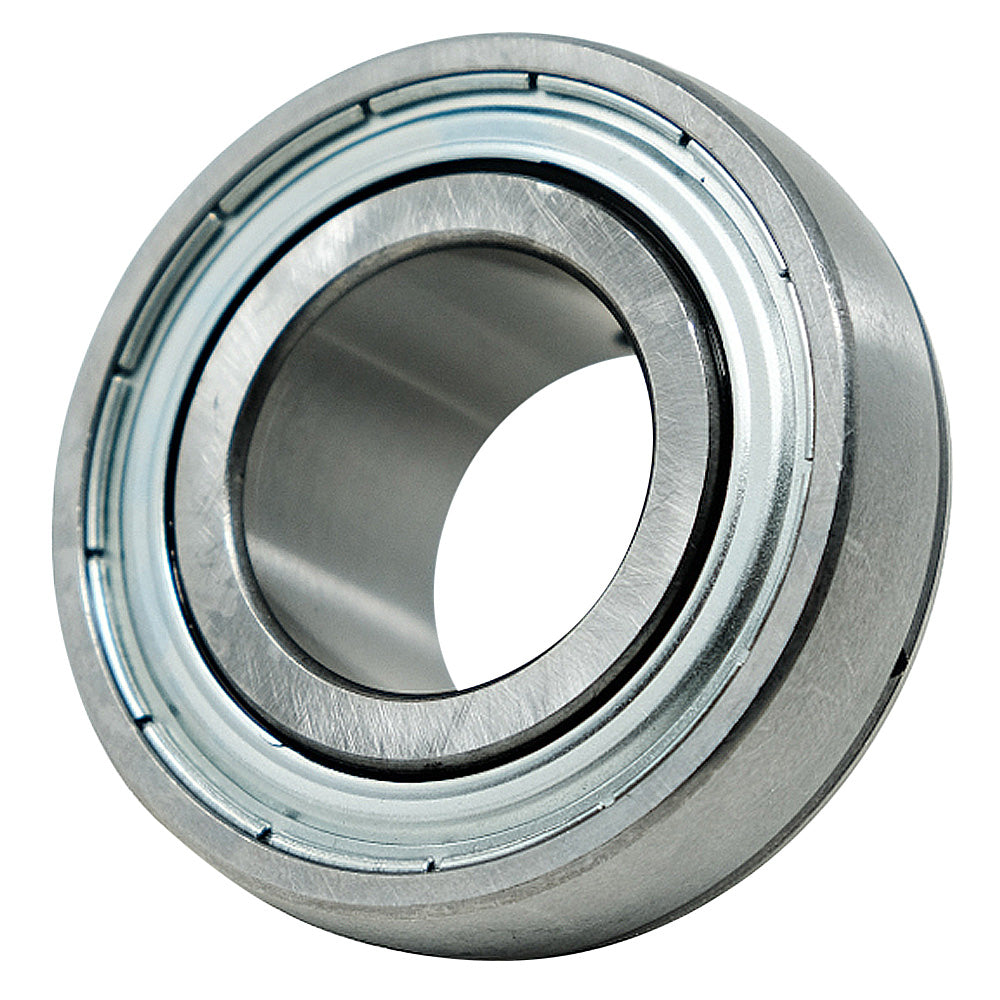

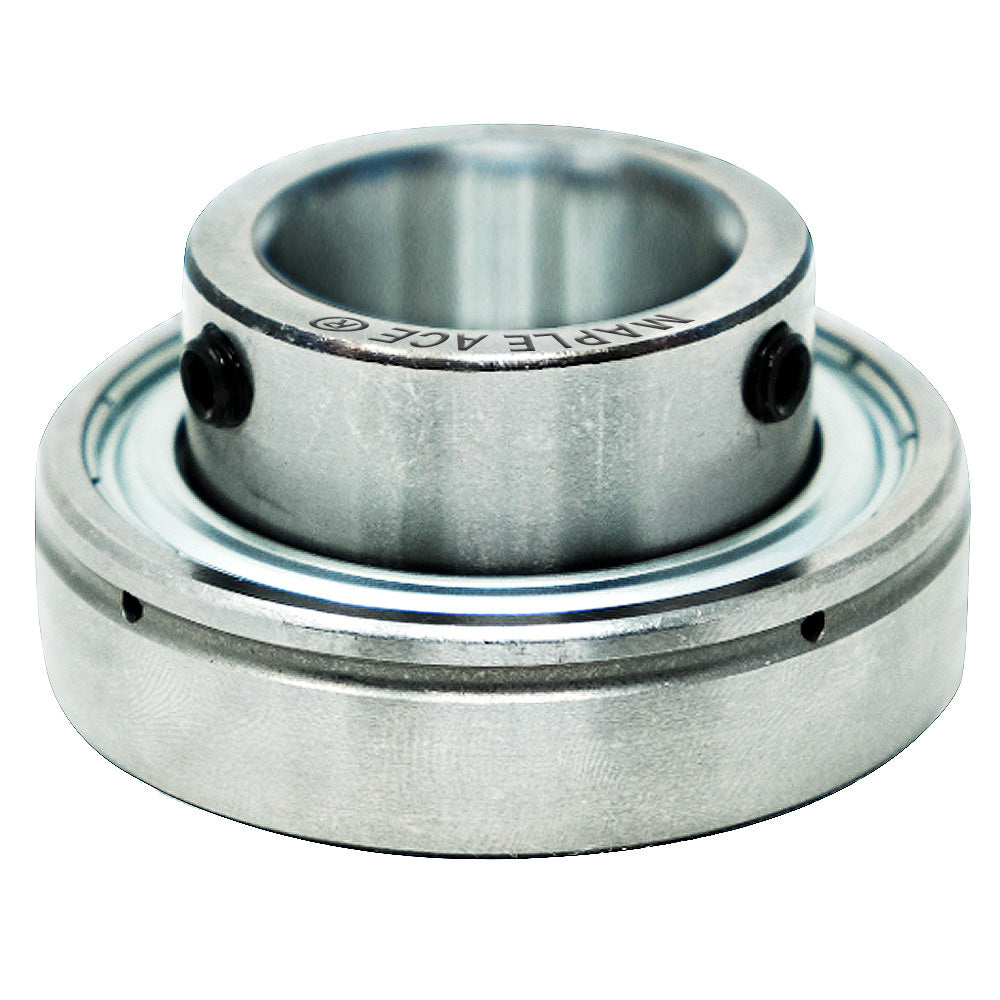

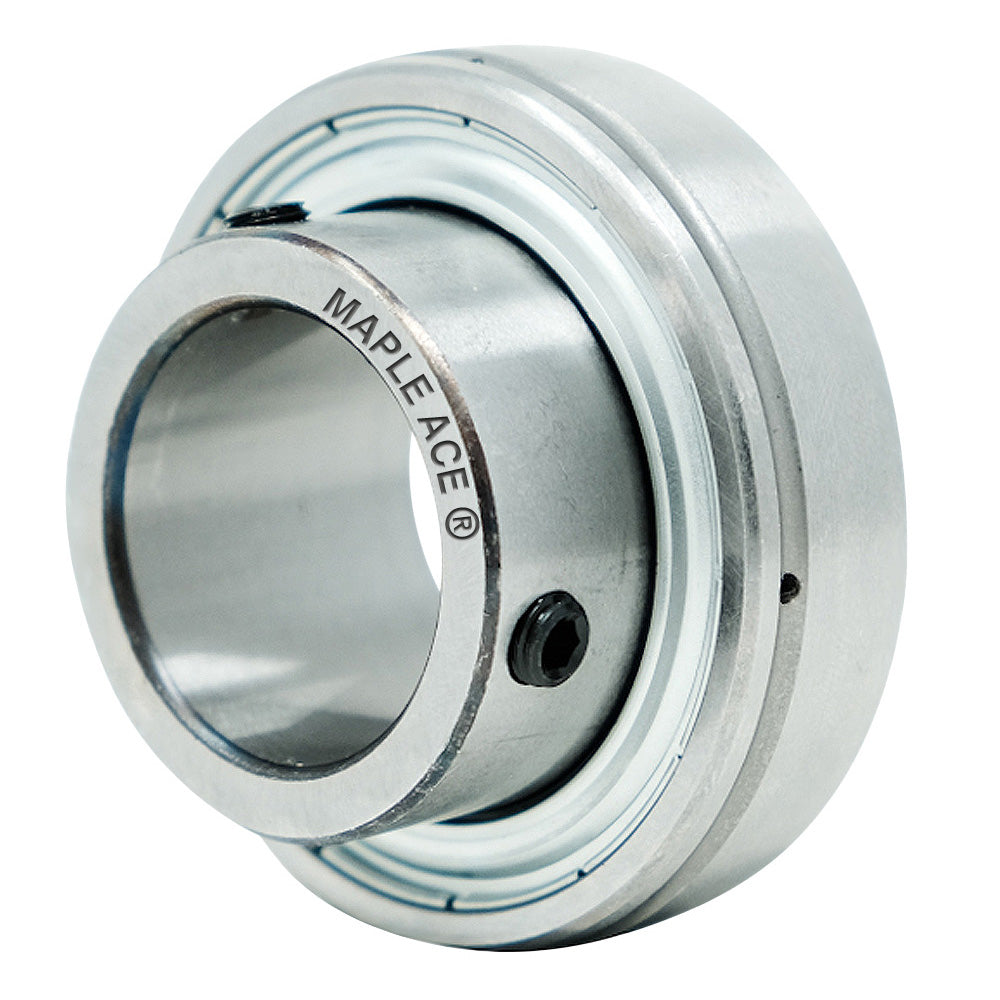

This INSERT BEARING has a Spherical Surface
Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings
Has a Groove and Oil Hole to Relubricate
Has a Set Screw Lock on its surface for securing the shaft

Item	SB208-24
Series	SB200
Outer ring type	Spherical
Inner Diameter Metric	38.10 mm
Inner Diameter Inch	1-1/2 in
Outside Diameter Matric	80.00 mm
Outside Diameter Inch	3.150 in
Width Inner Ring Matric	36.00 mm
Width Inner Ring Inch	1.417 in
Width Outer Ring Matric	21.00 mm
Width Outer Ring Inch	0.866 in
Dynamic Load Rating Cr	30700 N
Static Load Rating Cor	19000 N
Limiting Speed	4800 r/min
Clearance	Normal
Closures	Shield on both sides
Sealing type	Contact, standard
Lubrication Type	Grease Shell RL2
Lubrication Temperature	-20°C to +160°C
Rolling Element Indicator	Ball
Material	Gcr15
Locking Type	Set Screw
Weight	0.530 KG
