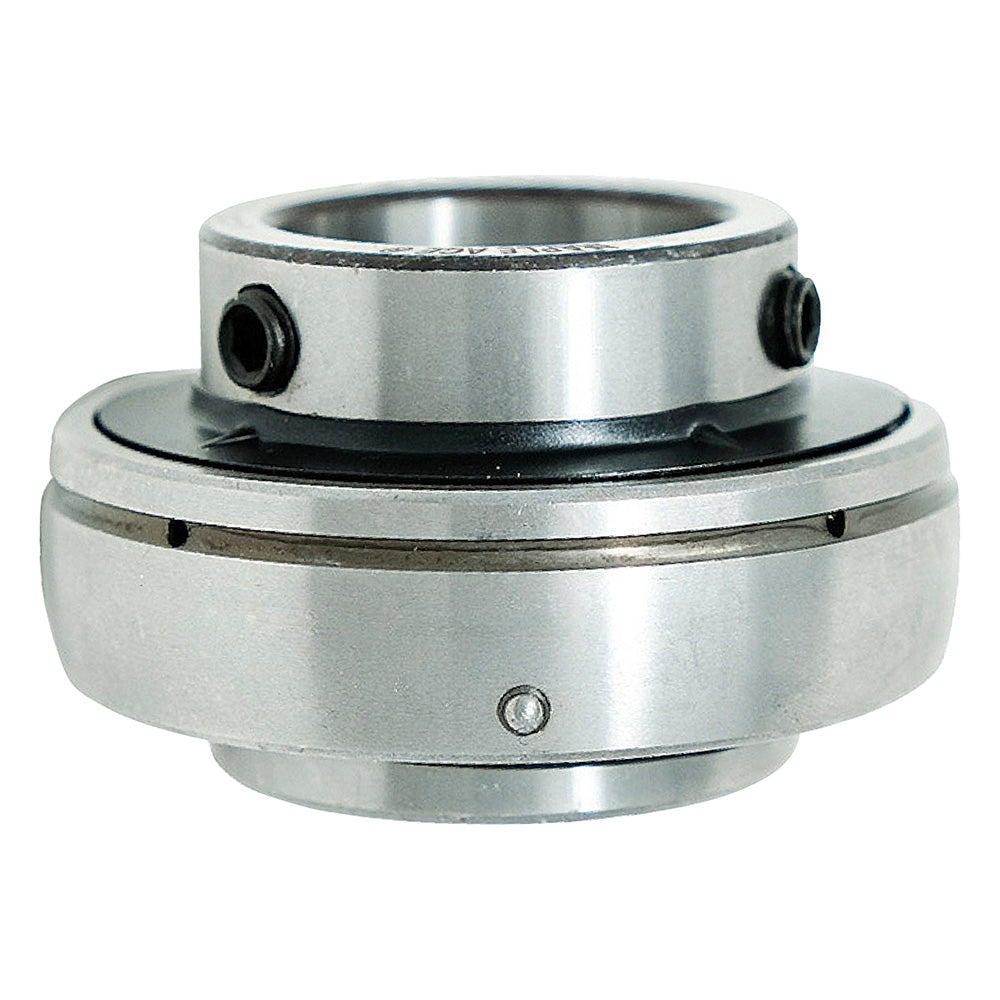

UC205 Insert Bearing 25mm Bore, Spherical OD, Set Screws, Lube Hole

Availability: In stock

Product type: Ball Bearings

Regular price $10.49 USD

This INSERT BEARING has a Spherical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is...

Exclusively Produced by High Standard Factories
Ideal for Replacement and OEM Applications
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
100% SATISFACTION GUARANTEED

This INSERT BEARING has a Spherical Surface
Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings
Has an Oil Hole to Relubricate
Has a Set Screw Lock on its surface for securing the shaft

Item	UC205
Series	UC200
Outer ring type	Spherical
Inner Diameter Metric	25.00 mm
Inner Diameter Inch	0.984 in
Outside Diameter Matric	52.00 mm
Outside Diameter Inch	2.0472 in
Width Inner Ring Matric	34.00 mm
Width Inner Ring Inch	1.3390 in
Width Outer Ring Matric	17.00 mm
Width Outer Ring Inch	0.669 in
Dynamic Load Rating Cr	14000 N
Static Load Rating Cor	7800 N
Limiting Speed	5850 r/min
Clearance	Normal
Closures	Seal and flinger on both sides
Sealing type	Contact, standard
Lubrication Type	Grease Shell RL2
Lubrication Temperature	-20°C to +160°C
Relubrication feature	With
Rolling Element Indicator	Ball
Material	Gcr15
Locking Type	Set Screw
Weight	0.190 KG
