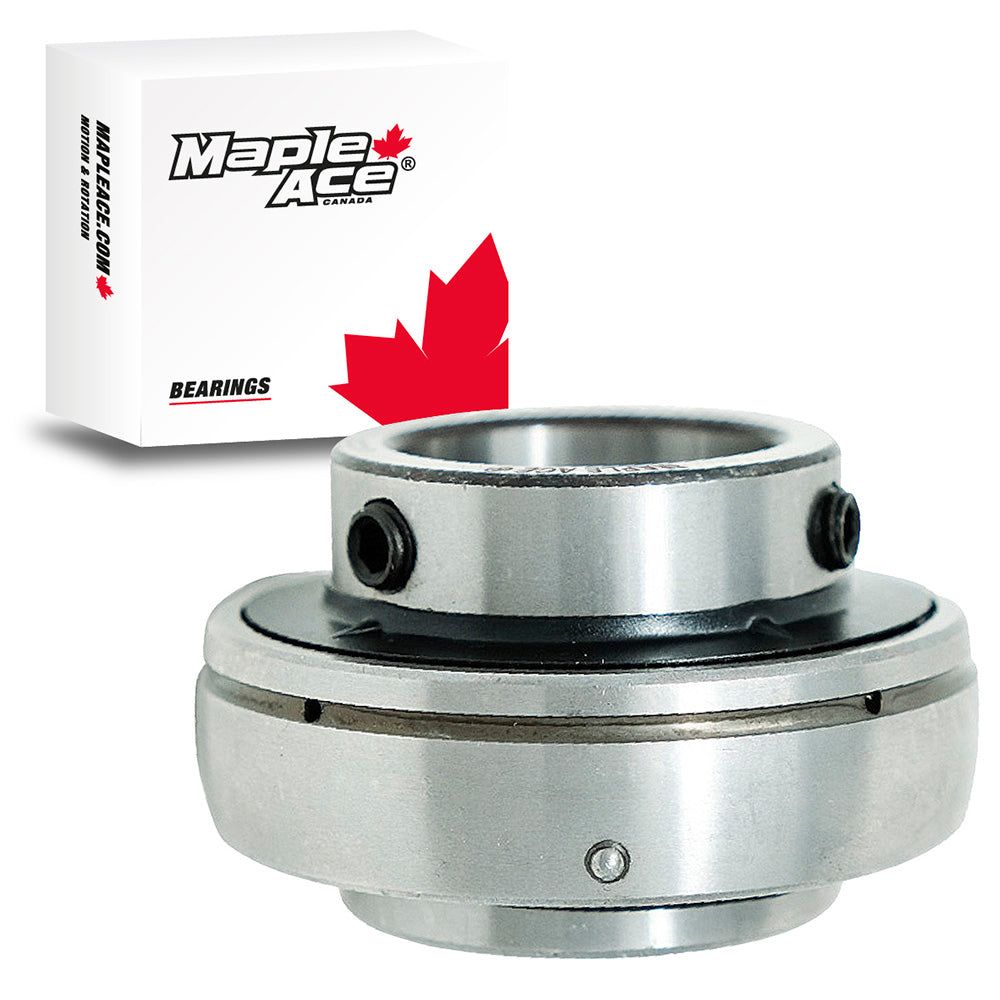

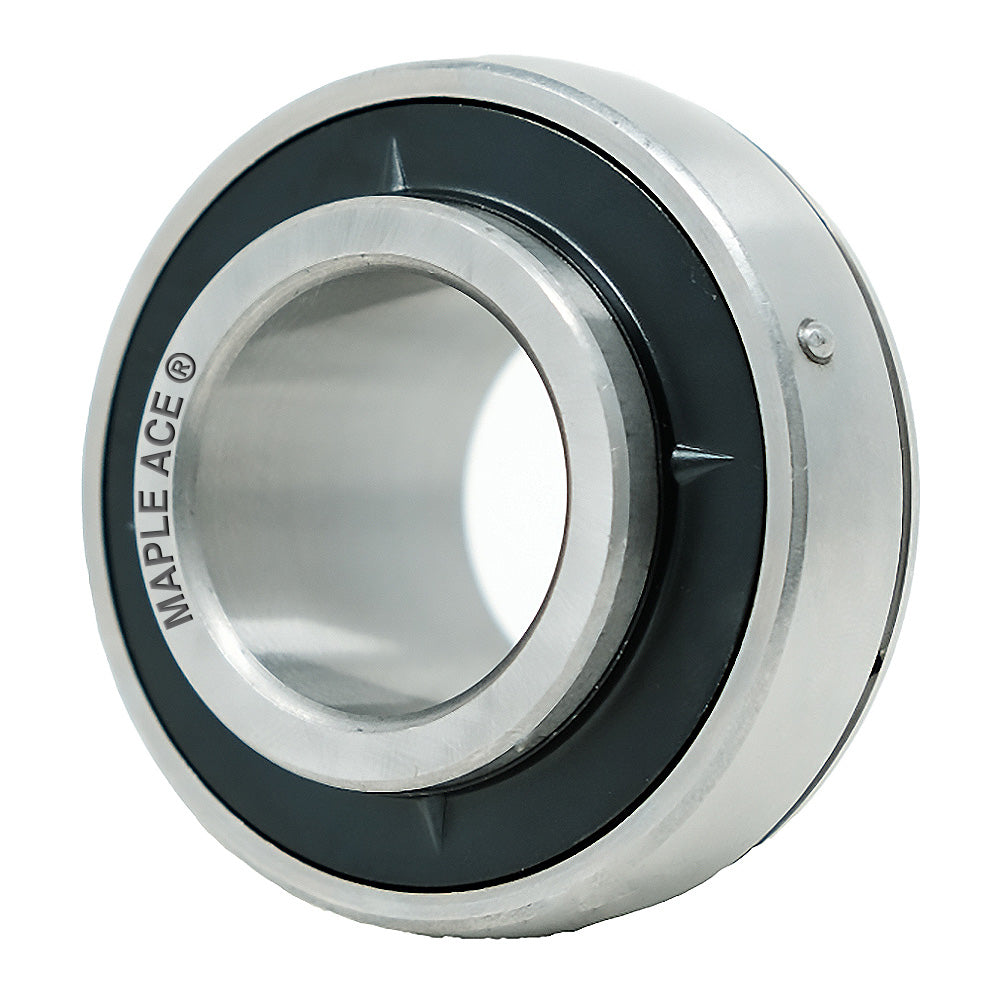

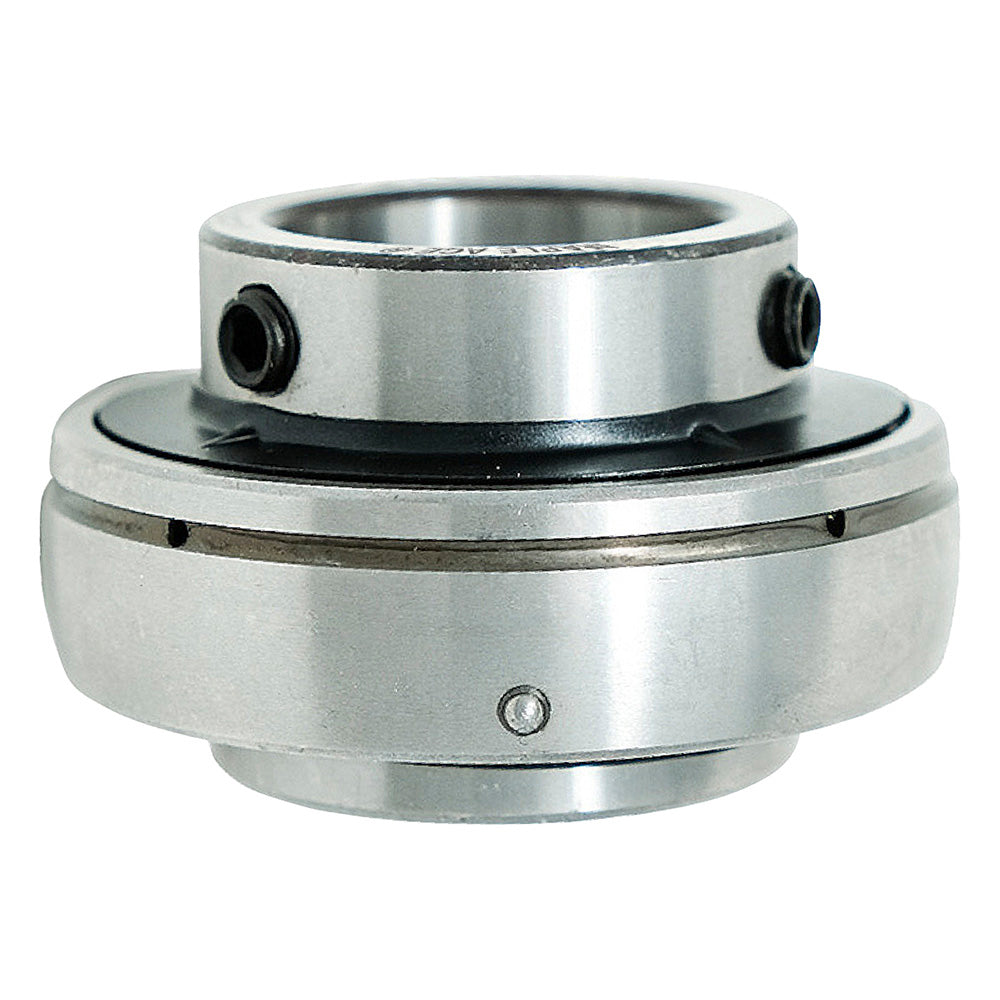

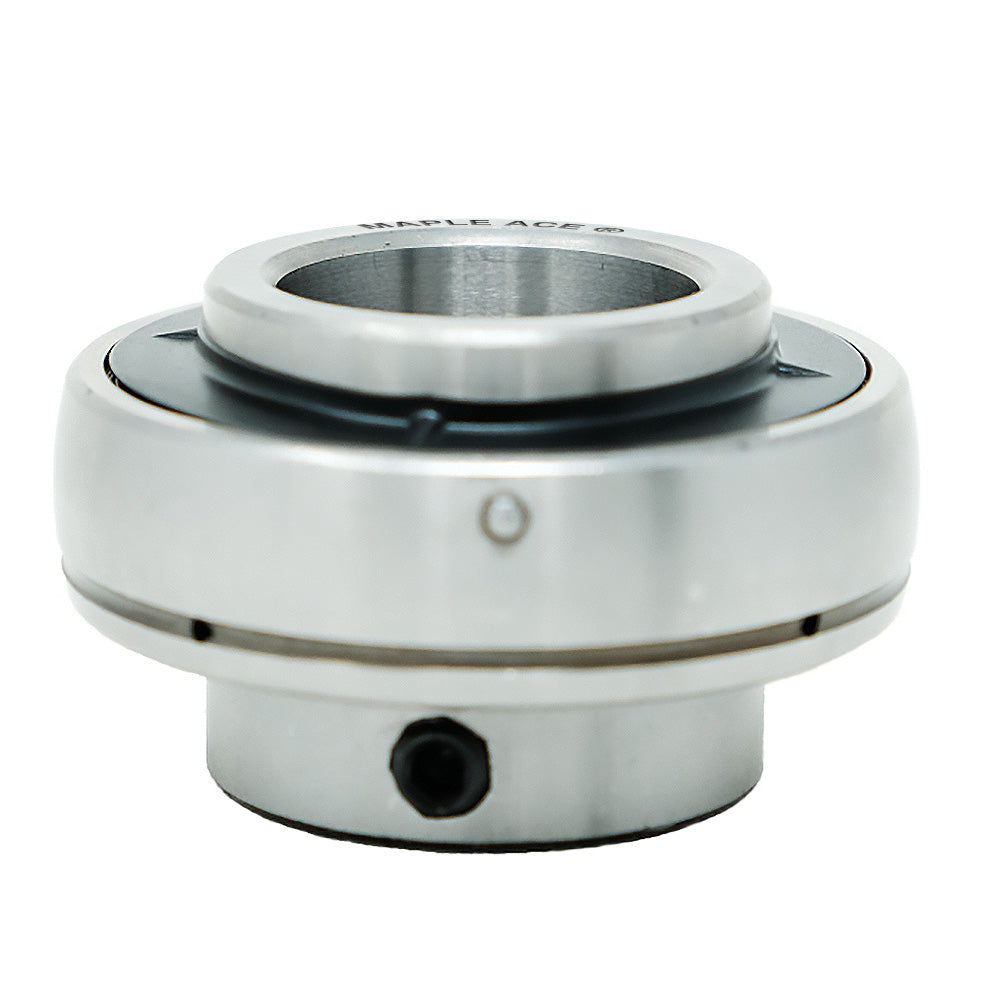

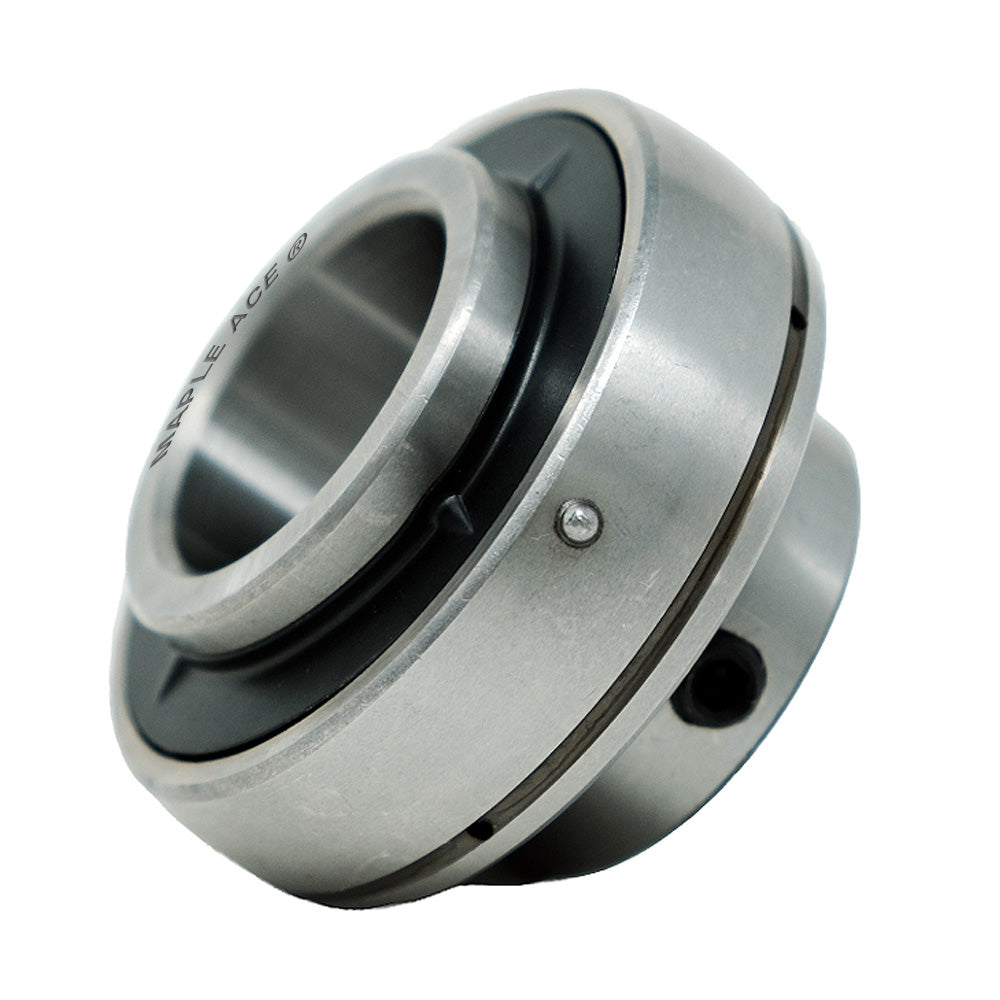

UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws
UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws
UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws
UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws
UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws
UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws

UC208 40mm Bore Insert Bearing Spherical OD Re-lube w/Set Screws

: In stock

: Ball Bearings

: MAPLE ACE

$19.39 USD

This INSERT BEARING has a Spherical Surface Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination Bearing is...

  • UC208 40mm Insert bearing with set screw locking and extended inner ring Outer ring type Spherical, Bore Diameter Metric 40.00 mm, Bore Diameter Inch 1.5748 in, Outside Diameter Matric 80.00 mm, Outside Diameter Inch 3.150 in, Width Inner Ring Matric 49.20 mm, Width Inner Ring Inch 1.937 in, Width Outer Ring Matric 21.00 mm, Width Outer Ring Inch 0.866 in, Dynamic Load Rating Cr 30700 N, Static Load Rating Cor 19000 N, Limiting Speed 4800 r/min, Lubrication Temperature -20°C to +160°C, Material Gcr15.
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This INSERT BEARING has a Spherical Surface
  • Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings
  • Has an Oil Hole to Relubricate
  • Has a Set Screw Lock on its surface for securing the shaft

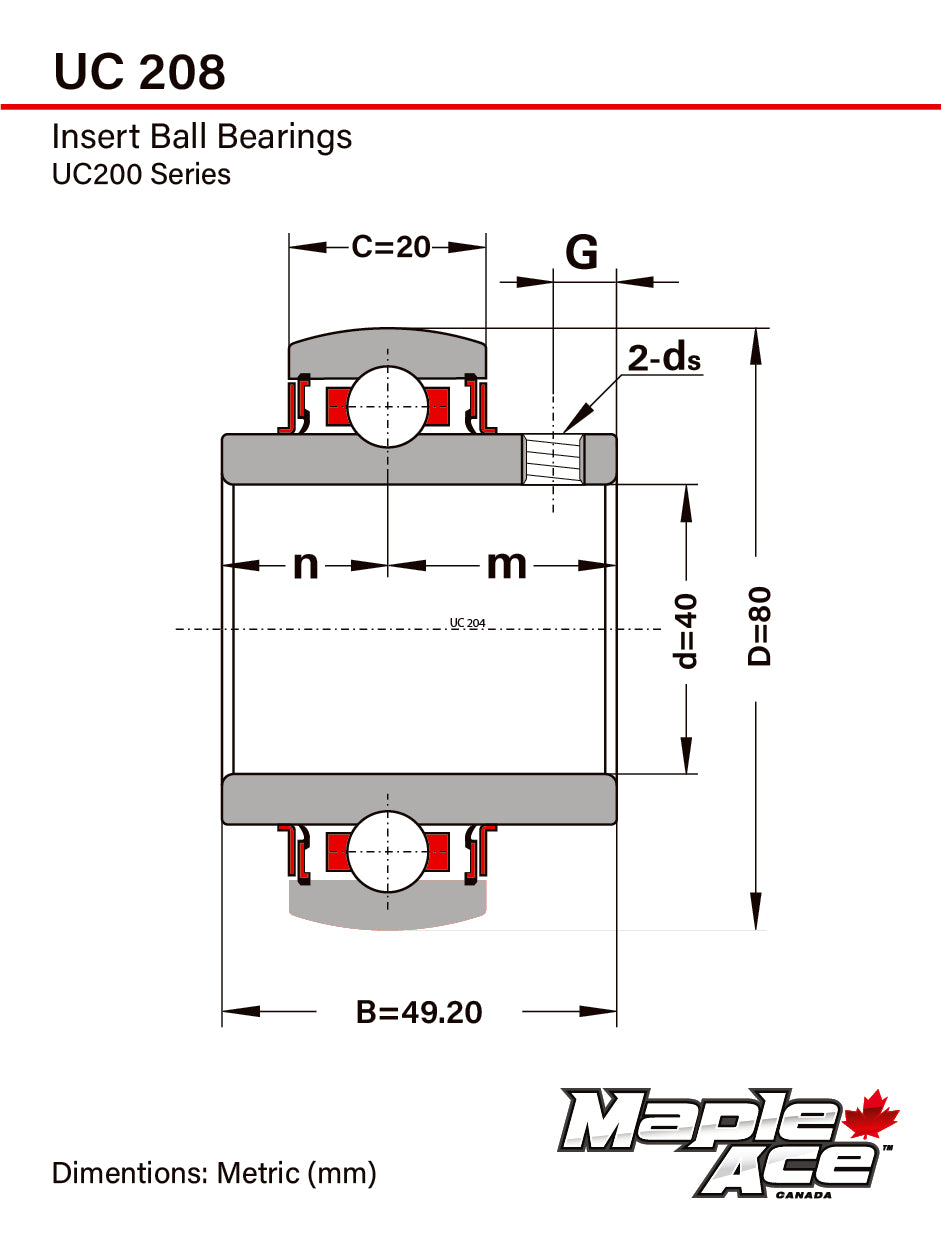

Item  UC208
Series  UC200
Outer ring type  Spherical
Inner Diameter Metric  40.00 mm
Inner Diameter Inch  1.5748 in
Outside Diameter Matric   80.00 mm
Outside Diameter Inch  3.150 in
Width Inner Ring Matric  49.20 mm
Width Inner Ring Inch  1.937 in
Width Outer Ring Matric  21.00 mm
Width Outer Ring Inch  0.866 in
Dynamic Load Rating Cr  30700 N
Static Load Rating Cor  19000 N
Limiting Speed  4800 r/min
Clearance  Normal
Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Material  Gcr15
Locking Type  Set Screw
Weight  0.650 KG
ASAHI UC208
FAG GYE40-KRRB
FYH UC208L2
INA GYE40-KRRB
Koyo UC208L2
NACHI UC208
NSK UC208S
NTN UC208
RHP 1040-40G
SKF YAR208-2F
SNR UC208.G2
TIMKEN  GYE40KRRB SGT

You can use this INSERT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
