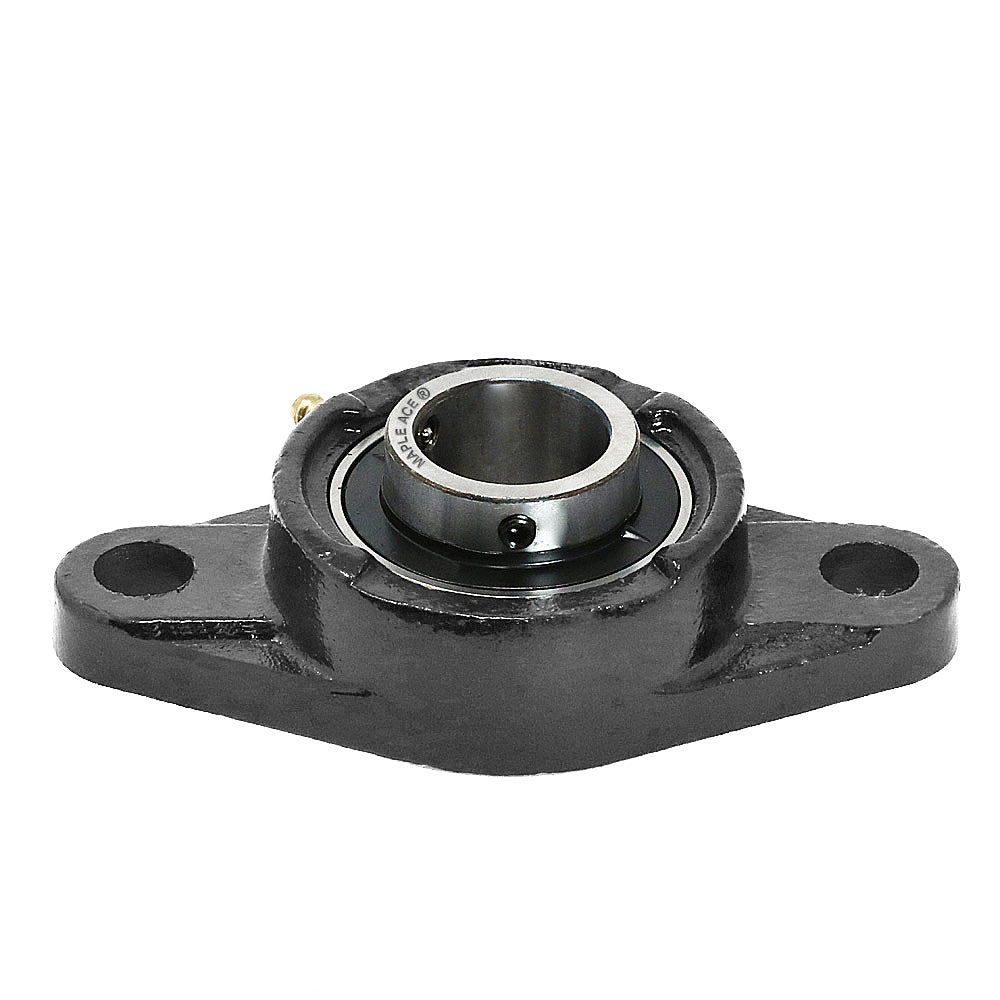

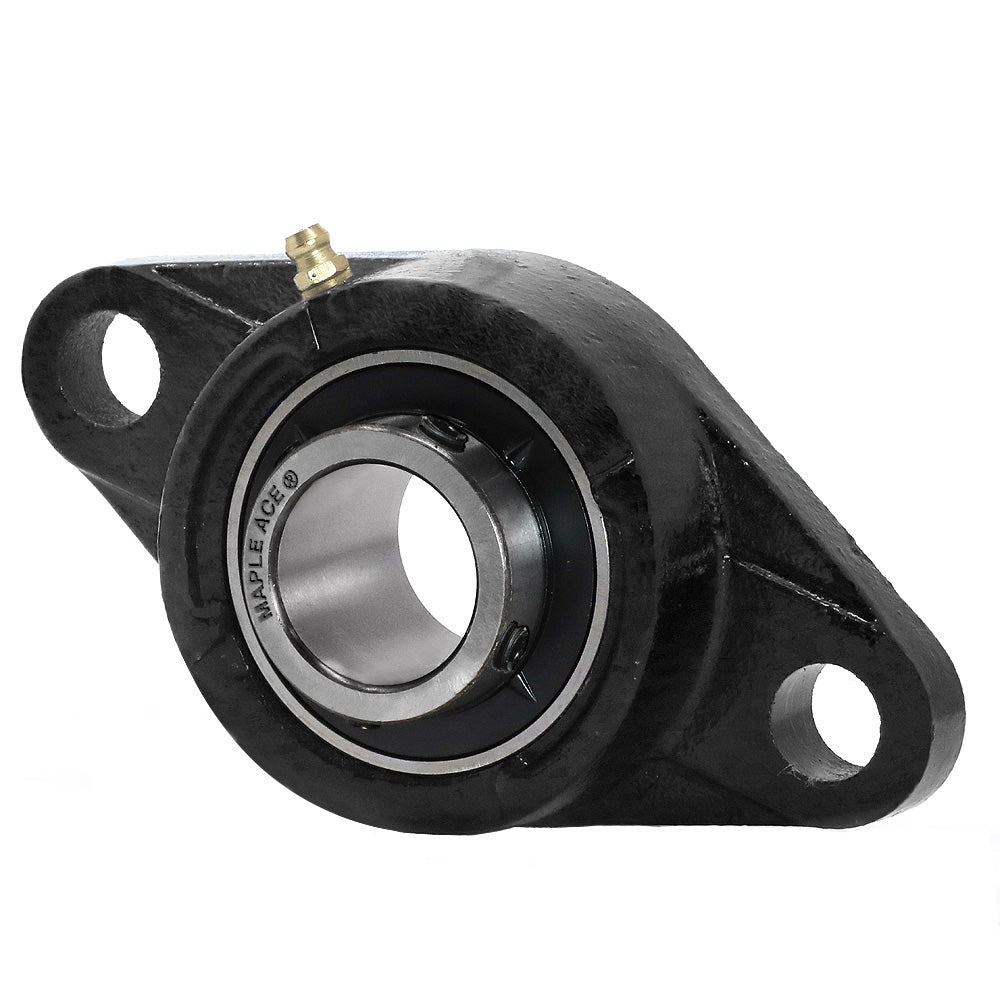

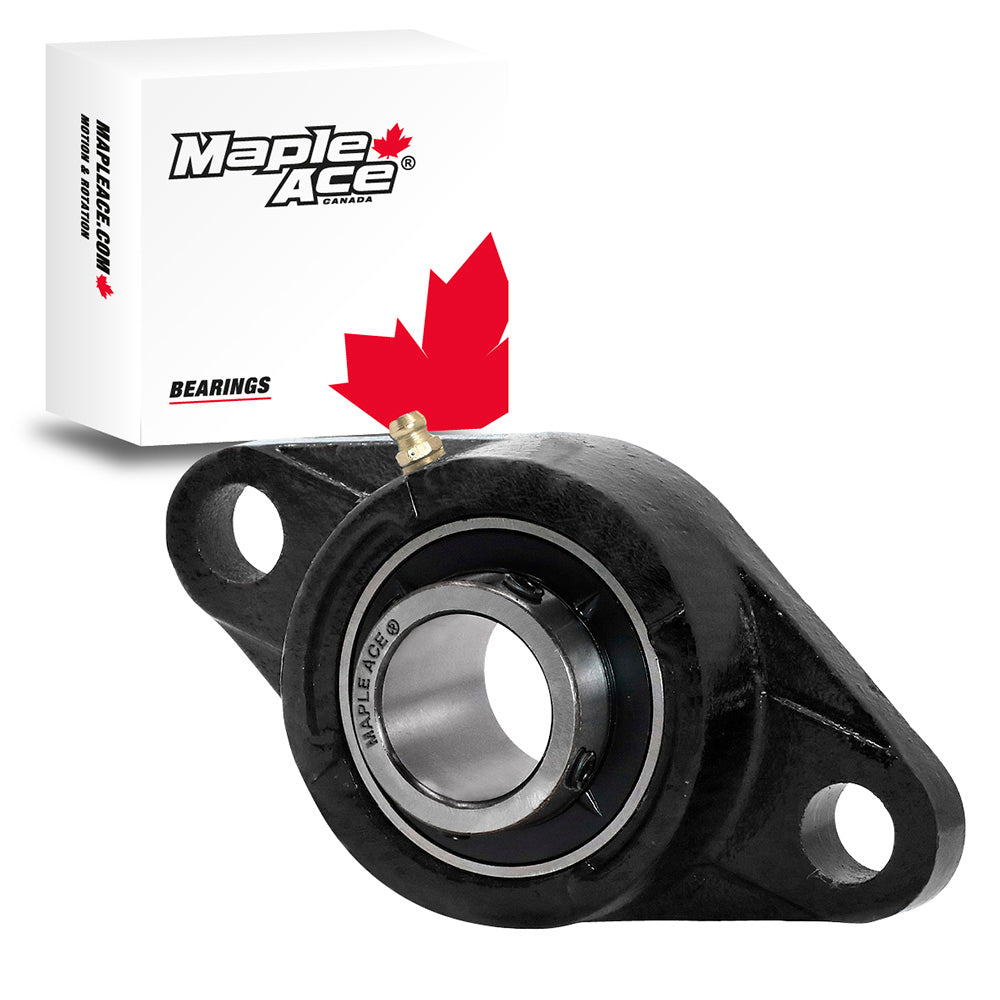

UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL202-10 Flange Bearing 5/8in Bore, Oval 2-Bolt Self-Aligning, Solid Base

UCFL202-10 Flange Bearing 5/8" Bore, Oval 2-Bolt Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$0.00 USD

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The OVAL FLANGED-MOUNT BEARING can be mounted on levelled...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface for securing the shaft

Item  UCFL202-10
Series  UCFL200
Bearing Number  UC202-10
Housing Number  FL203
Number of Bolts  2
Bolt Size (S)  3/8 in
Bearing Inner Diameter (d) Metric  15.875 mm
Bearing Inner Diameter (d) Inch  5/8 in
Bearing Width Inner Ring (Bi) Matric  31.00 mm
Bearing Width Inner Ring (Bi) Inch  1.220 in
Bolt Hole Center to Center (e) Matric  90 mm
Bolt Hole Center to Center (e) Inch  3.543 in
Flange width (a) Matric  113 mm
Flange width (a) Inch  4.448 in
Overall Height (Z) Matric  33.3 mm
Overall Height (Z) Inch  1.311 in
Dynamic Load Rating Cr  9560 N
Static Load Rating Cor  4750 N
Limiting Speed  9500 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  0.410 KG
Koyo UCFL202-10
NACHI UCFL202-10
RHP SFT5⁄8
NTN UCFL202-010D1
SKF FYT 5/8 TF
SNR UCFL202-10
TIMKEN UCFL202-10

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper

UCFL202-10 Flange Bearing 5/8" Bore, Oval 2-Bolt Self-Aligning, Solid Base
