UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL205-16 Flange Bearing 1in Bore, Oval 2-Bolt Self-Aligning, Solid Base

UCFL205-16 Flange Bearing 1" Bore, Oval 2-Bolt Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$15.95 USD

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The OVAL FLANGED-MOUNT BEARING can be mounted on levelled...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

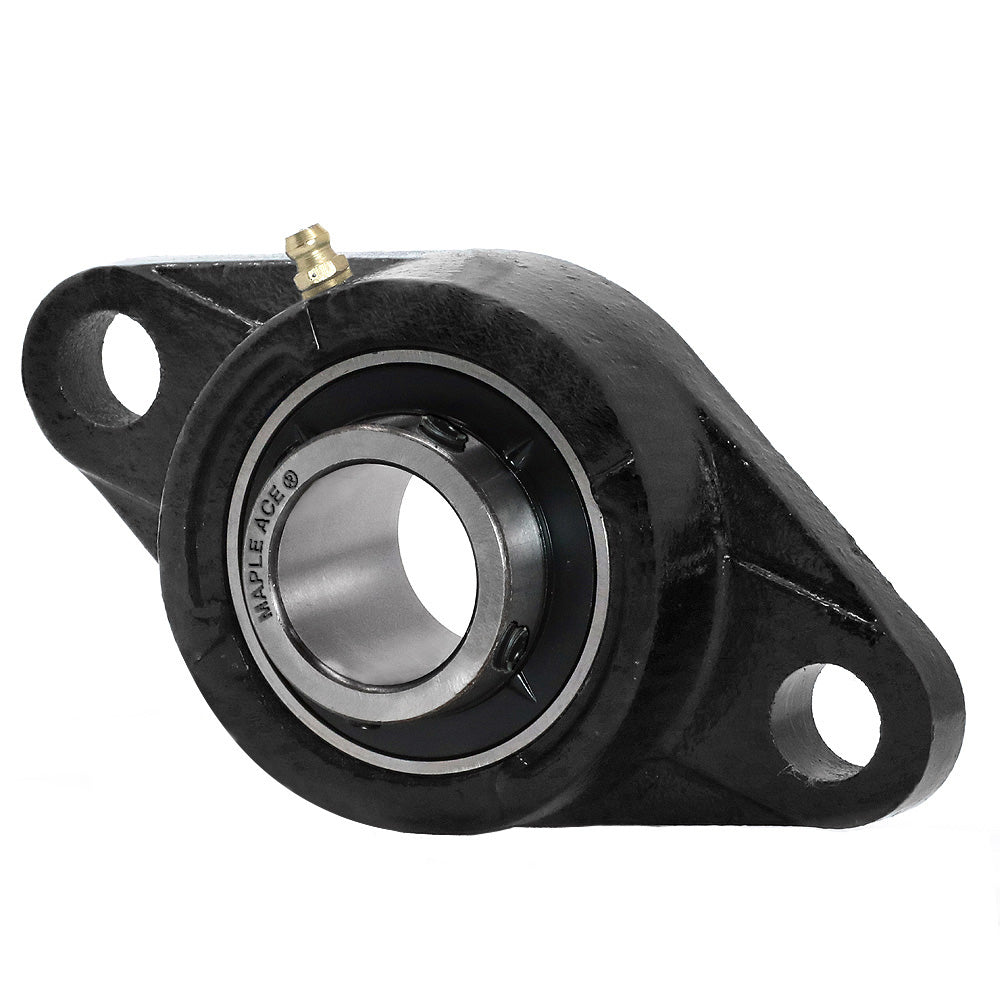

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface for securing the shaft

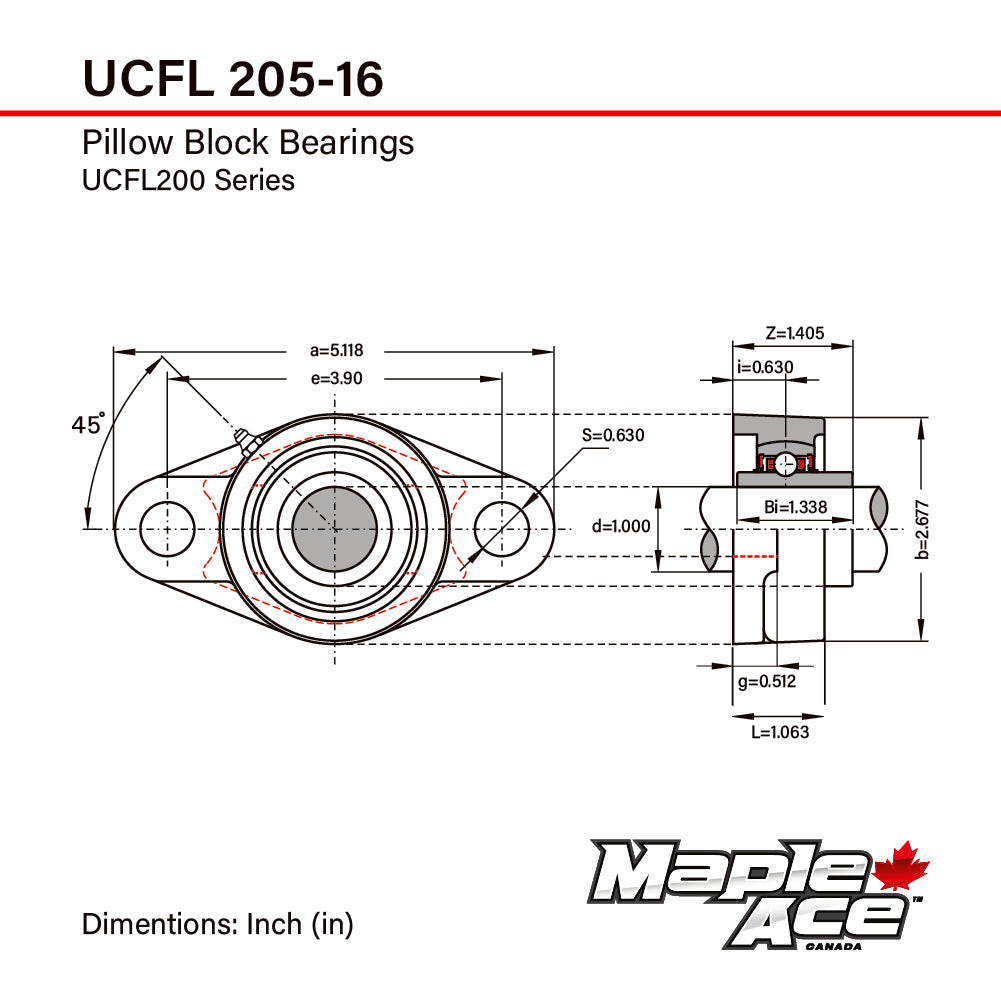

Item  UCFL205-16
Series  UCFL200
Bearing Number  UC205-16
Housing Number  FL205
Number of Bolts  2
Bolt Size (S)  5/8 in
Bearing Inner Diameter (d) Metric  25.4 mm
Bearing Inner Diameter (d) Inch  1 in
Bearing Width Inner Ring (Bi) Matric  34.00 mm
Bearing Width Inner Ring (Bi) Inch  1.338 in
Bolt Hole Center to Center (e) Matric  99 mm
Bolt Hole Center to Center (e) Inch  3.90 in
Flange width (a) Matric  130 mm
Flange width (a) Inch  5.118 in
Overall Height (Z) Matric  35.7 mm
Overall Height (Z) Inch  1.405 in
Dynamic Load Rating Cr  14000 N
Static Load Rating Cor  7800 N
Limiting Speed  7000 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  0.560 KG
Koyo UCFL205-16
NACHI UCFL205-16
RHP SFT1
NTN UCFL205-100D1
SKF FYT 1. TF
SNR UCFL205-16
TIMKEN UCFL205-16

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper

UCFL205-16 Flange Bearing 1" Bore, Oval 2-Bolt Self-Aligning, Solid Base
