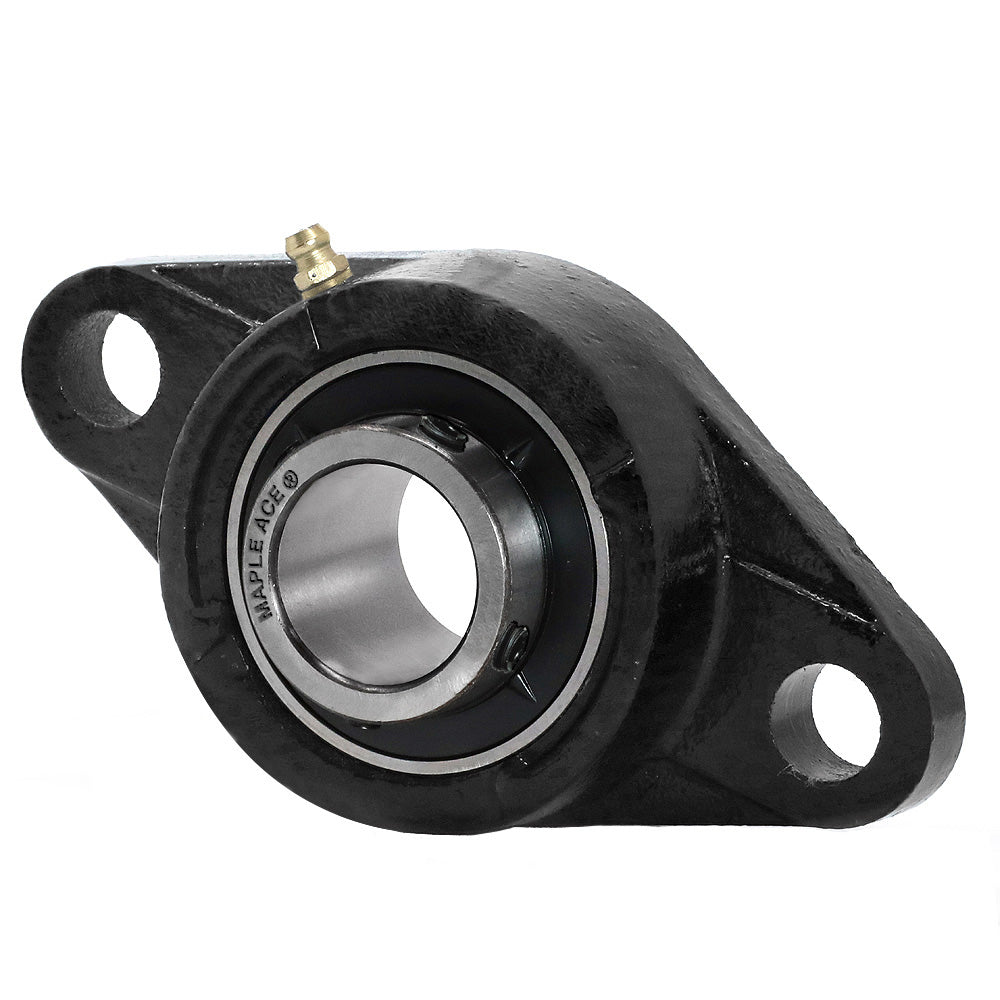

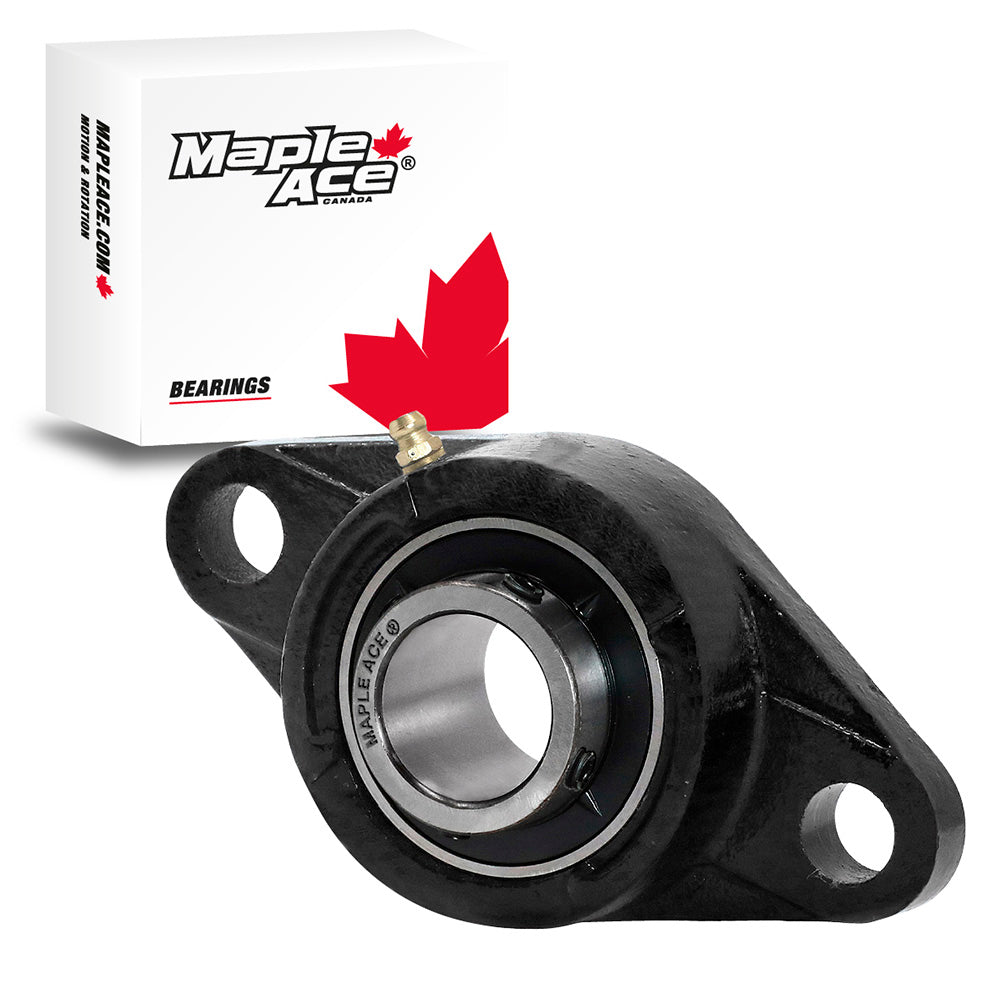

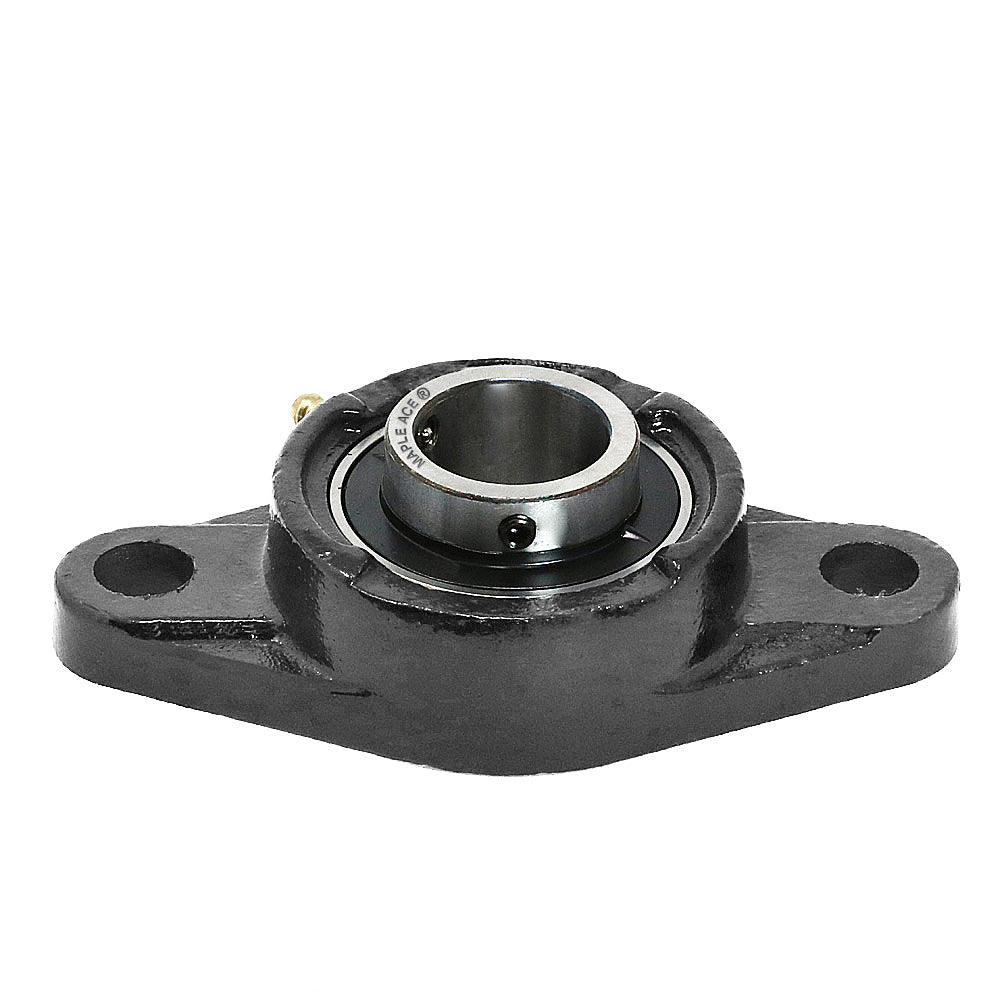

UCFL206-20 Flange Bearing 1-1/4" Bore, Oval 2-Bolt Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$17.95 USD

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The OVAL FLANGED-MOUNT BEARING can be mounted on levelled...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface for securing the shaft

Item  UCFL206-20
Series  UCFL200
Bearing Number  UC206-20
Housing Number  FL206
Number of Bolts  2
Bolt Size (S)  3/8 in
Bearing Inner Diameter (d) Metric  31.75 mm
Bearing Inner Diameter (d) Inch  1-1/4 in
Bearing Width Inner Ring (Bi) Matric  38.1 mm
Bearing Width Inner Ring (Bi) Inch  1.5 in
Bolt Hole Center to Center (e) Matric  117 mm
Bolt Hole Center to Center (e) Inch  4.6 in
Flange width (a) Matric  147 mm
Flange width (a) Inch  5.826 in
Overall Height (Z) Matric  40.2 mm
Overall Height (Z) Inch  1.582 in
Dynamic Load Rating Cr  19500 N
Static Load Rating Cor  11200 N
Limiting Speed  6300 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  0.800 KG
Koyo UCFL206-20
NACHI UCFL206-20
RHP SFT11⁄4R
NTN UCFL206-104D1
SNR UCFL206-20
TIMKEN UCFL206-20

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
