UCFL206 Flange Bearing 30mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
Regular price $21.95 USD
This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The INSERT BEARING has Triple-Lip Seal: Unmatched protection in...
- Exclusively Produced by High Standard Factories
- Ideal for Replacement and OEM Applications
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
- DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
- 100% SATISFACTION GUARANTEED
Description

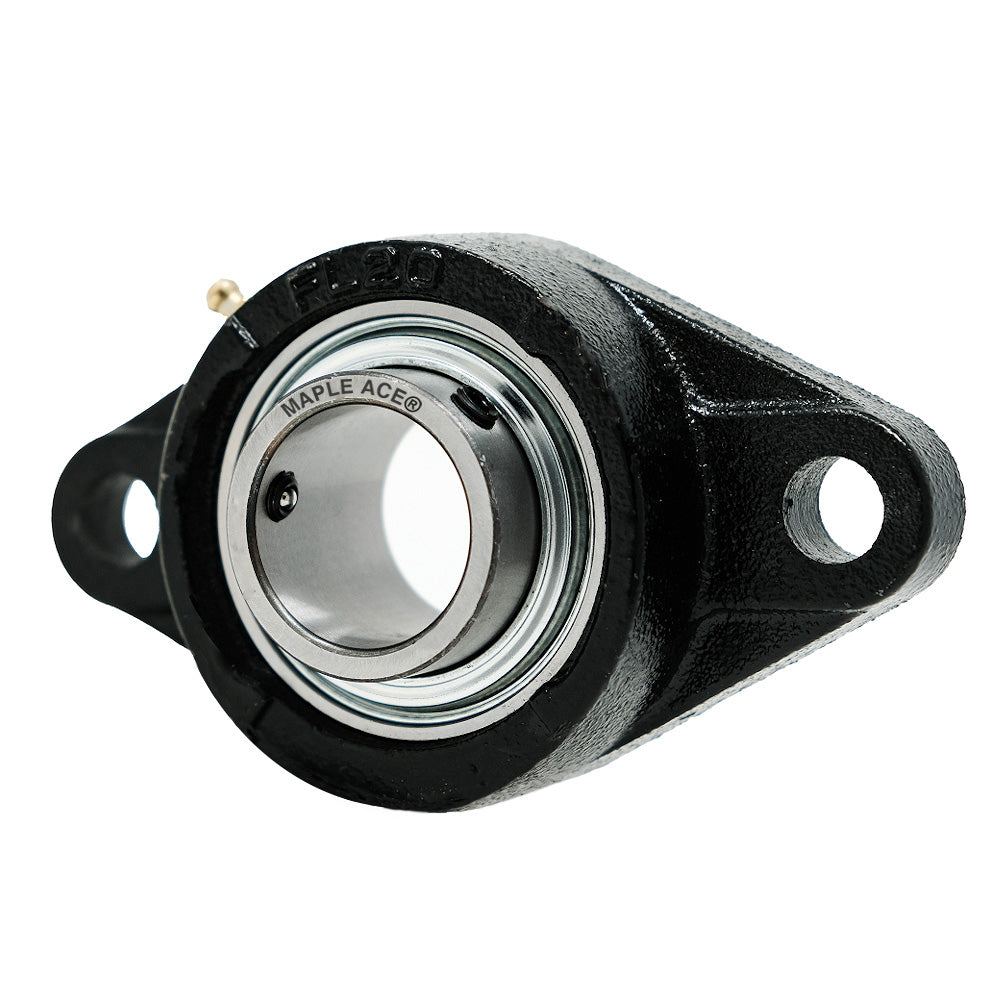

- This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing

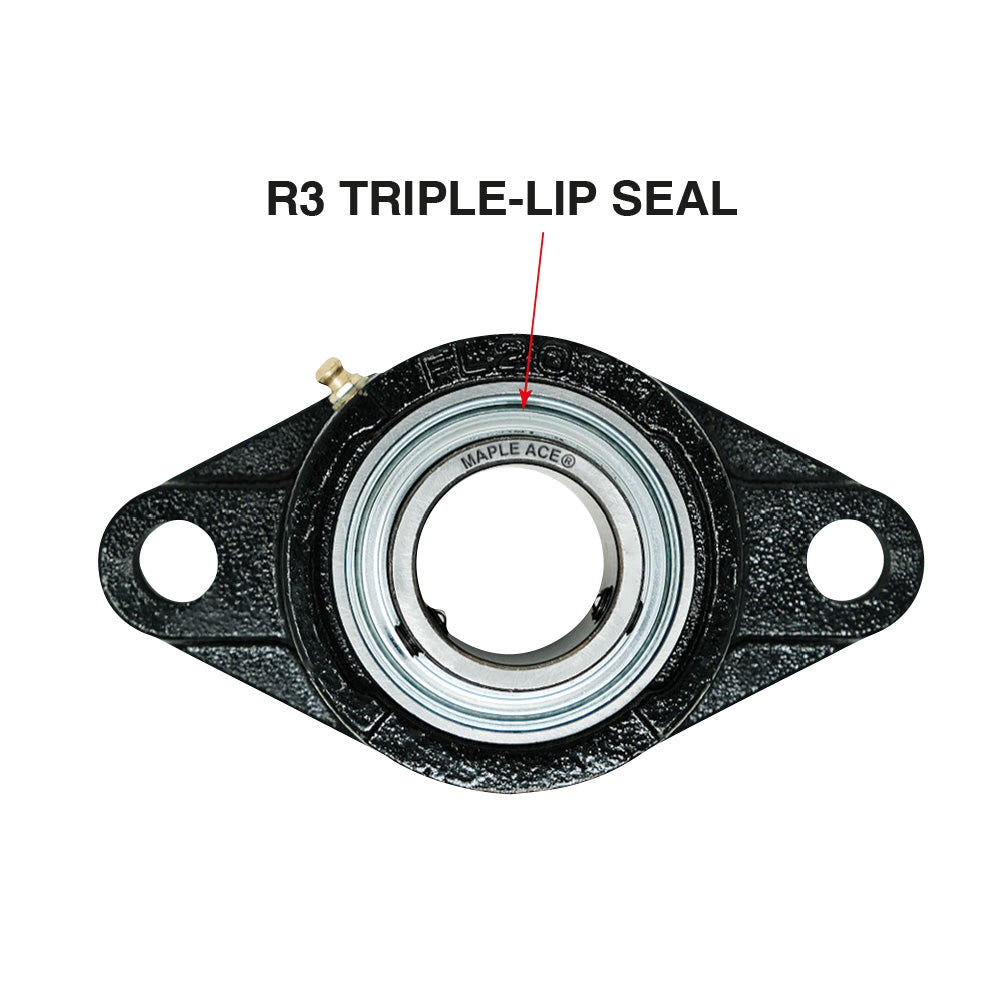

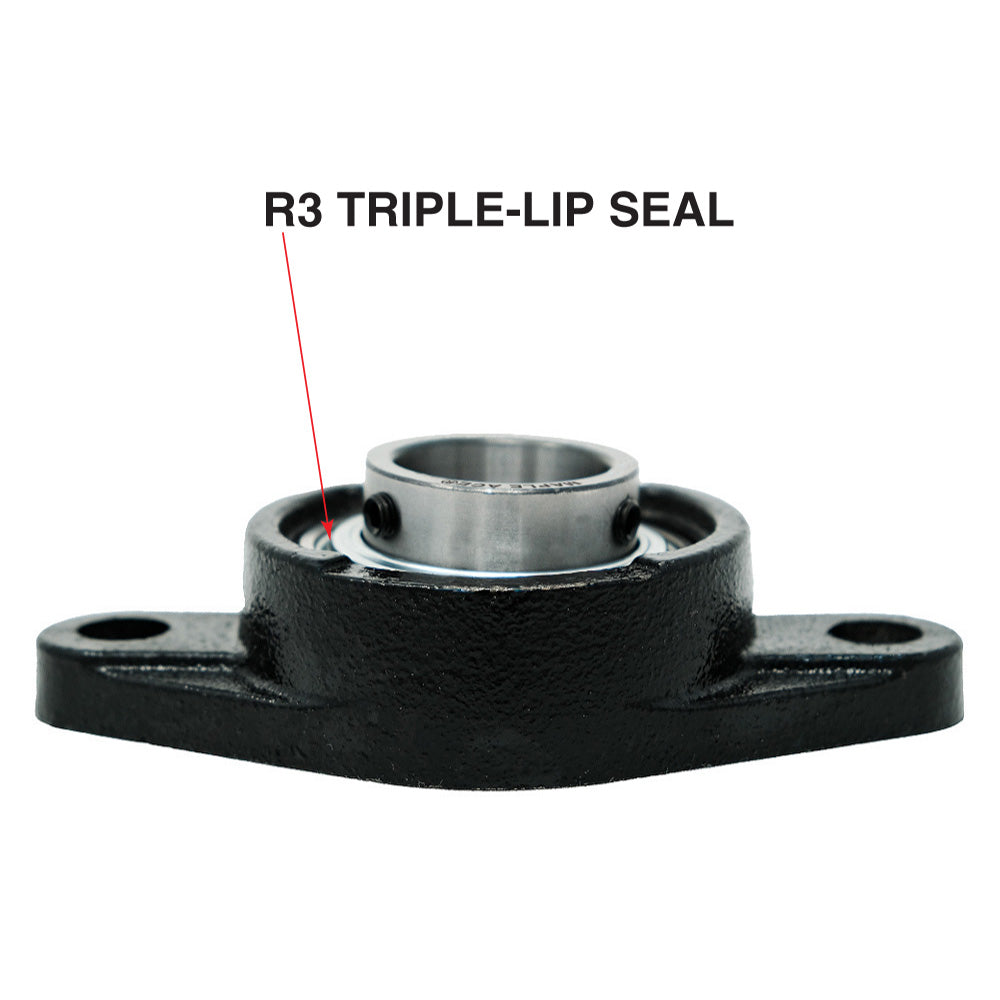

- The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
- Has a Set Screw Lock on its surface for securing the shaft
- The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
- Grease Fitting Offset on top to Relubricate the bearing

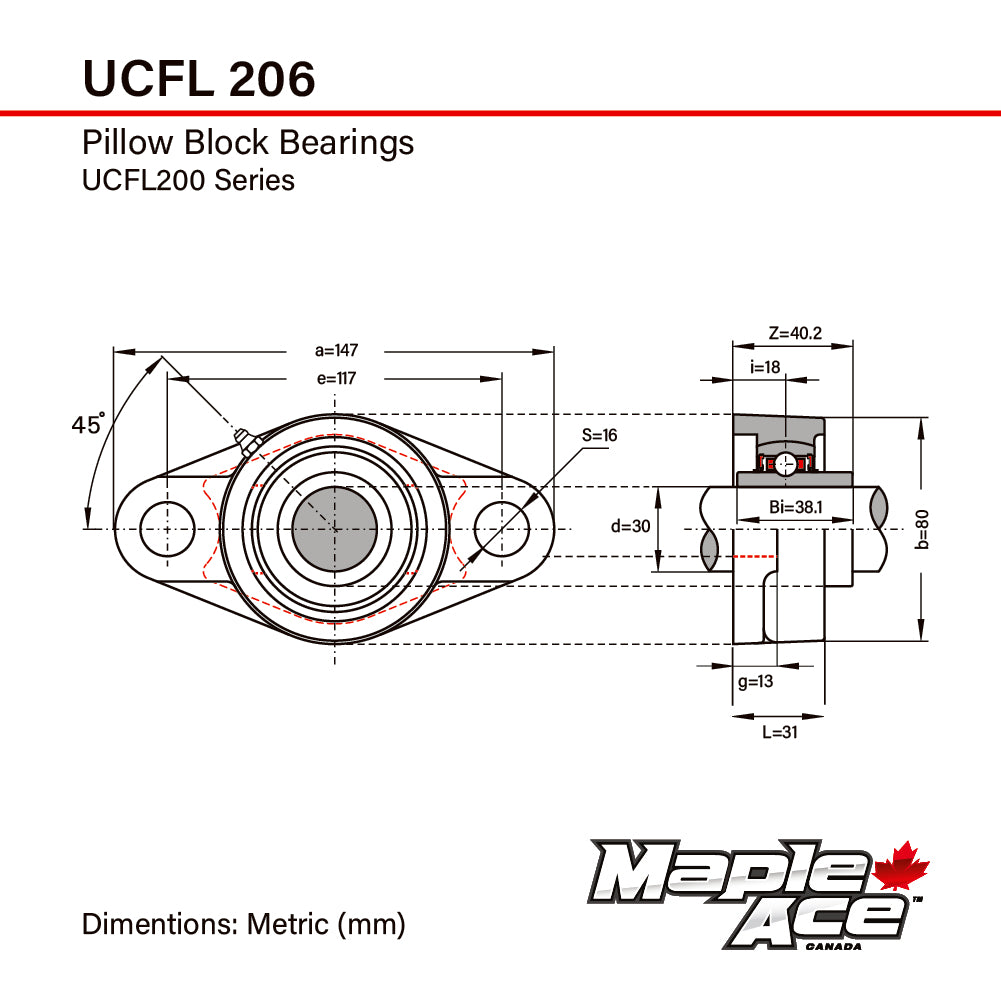

Item | UCFL206R3 |
Series | UCFL200 |
Bearing Number | UC206R3 |
Housing Number | FL206 |
Number of Bolts | 2 |
Bolt Size (S) | 3/8 in |
Bearing Inner Diameter (d) Metric | 30.00 mm |
Bearing Inner Diameter (d) Inch | 1.1811 in |
Bearing Width Inner Ring (Bi) Matric | 38.1 mm |
Bearing Width Inner Ring (Bi) Inch | 1.5 in |
Bolt Hole Center to Center (e) Matric | 117 mm |
Bolt Hole Center to Center (e) Inch | 4.6 in |
Flange width (a) Matric | 147 mm |
Flange width (a) Inch | 5.826 in |
Overall Height (Z) Matric | 40.2 mm |
Overall Height (Z) Inch | 1.582 in |
Dynamic Load Rating Cr | 19500 N |
Static Load Rating Cor | 11200 N |
Limiting Speed | 6300 r/min |
Clearance | Normal |
Bearing Sealing type | R3 Triple-Lip Seal |
Lubrication Type | Grease Shell RL2 |
Lubrication Temperature | -20°C to +160°C |
Rolling Element Indicator | Ball |
Bearing Material | Gcr15 |
Housing Material | H2000 Cast Iron |
Locking Type | Set Screws |
Weight | 0.800 KG |
You can use this FLANGE-MOUNT BEARING as a Replacement Part for:
- PowerSports
- Sporting Machines
- Go-KART
- Marine
- HVAC
- Furnaces
- Industrial Applications
- Transmissions
- Elevators
- Lifts and Hoists
- Cranes
- Rolling Mills
- Agriculture Machines
- Mining Construction Equipment
- Food & Beverage
- Energy
- Water Treatment
- Sawmills
- Lumber Grading Station
- Mixers
- Pulp and Paper
