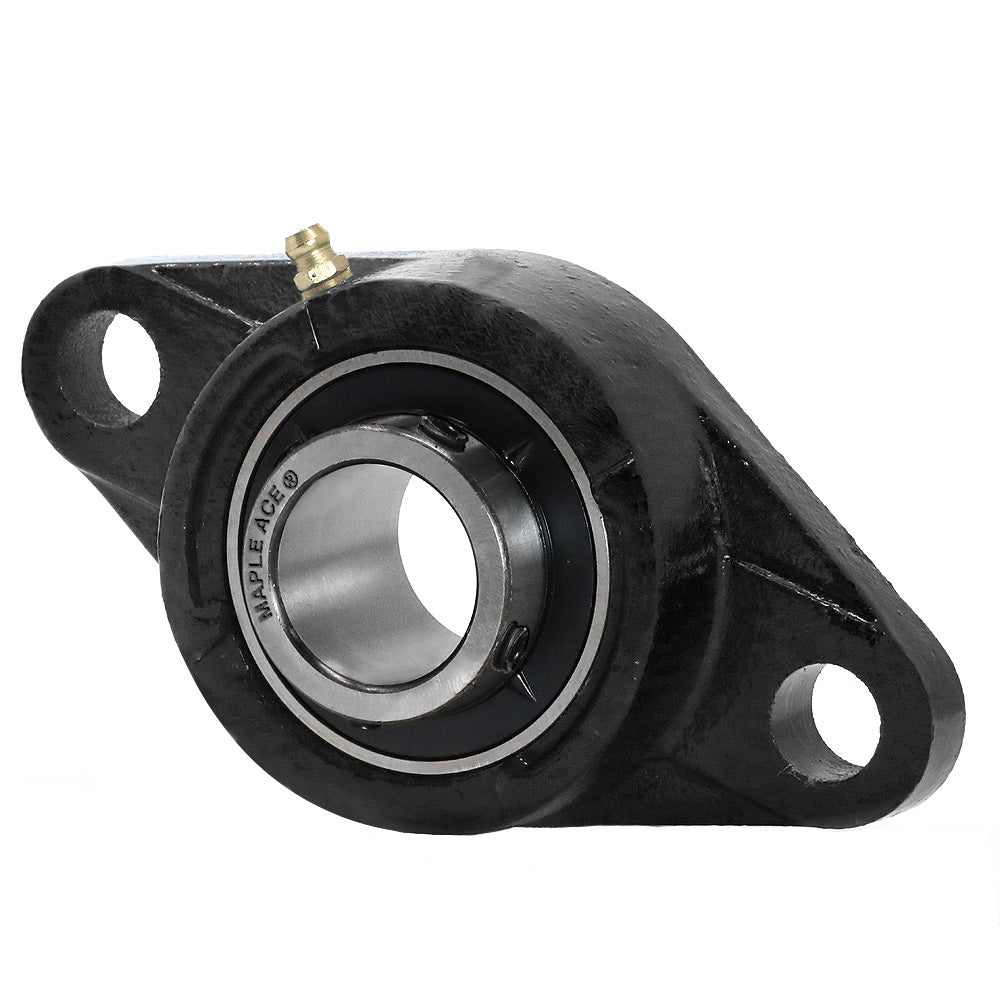

UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base
UCFL208-24 Flange Bearing 1/2in Bore, Oval 2-Bolt Self-Aligning, Solid Base

UCFL208-24 Flange Bearing 1/2" Bore, Oval 2-Bolt Self-Aligning, Solid Base

: In stock

: Mounted Bearings

: MAPLE ACE

$21.95 USD

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The OVAL FLANGED-MOUNT BEARING can be mounted on levelled...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing
  • The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination
  • Has a Set Screw Lock on its surface for securing the shaft

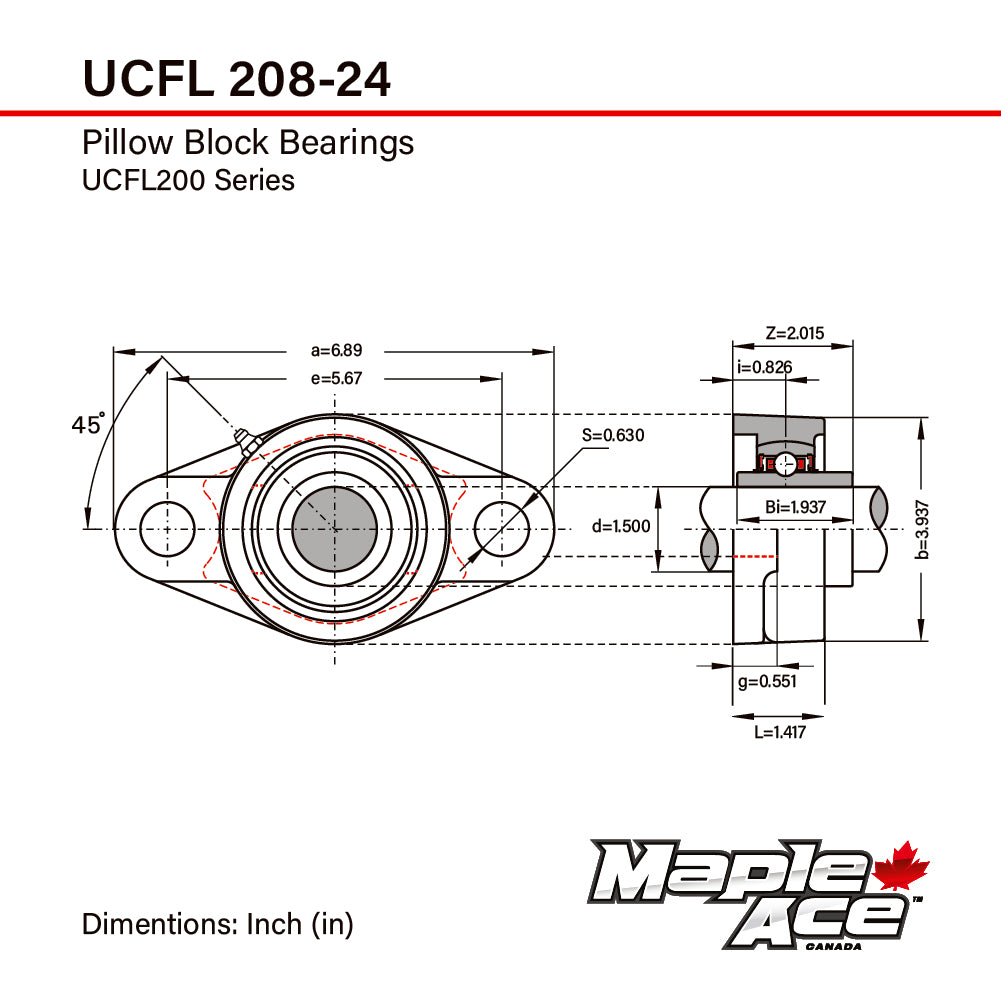

Item  UCFL208-24
Series  UCFL200
Bearing Number  UC208-24
Housing Number  FL208
Number of Bolts  2
Bolt Size (S)  1/2 in
Bearing Inner Diameter (d) Metric  38.1 mm
Bearing Inner Diameter (d) Inch  1-1/2 in
Bearing Width Inner Ring (Bi) Matric  49.2 mm
Bearing Width Inner Ring (Bi) Inch  1.937 in
Bolt Hole Center to Center (e) Matric  144 mm
Bolt Hole Center to Center (e) Inch  5.67 in
Flange width (a) Matric  175 mm
Flange width (a) Inch  6.89 in
Overall Height (Z) Matric  51.20 mm
Overall Height (Z) Inch  2.015 in
Dynamic Load Rating Cr  30700 N
Static Load Rating Cor  19000 N
Limiting Speed  4800 r/min
Clearance  Normal
Bearing Sealing type  Contact, standard
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H2000 Cast Iron
Locking Type  Set Screws
Weight  1.480 KG
Koyo UCFL208-24
NACHI UCFL208-24
RHP SFT11⁄2
NTN UCFL208-108D1
SKF FYT 1.1/2 TF
SNR UCFL208-24
TIMKEN UCFL208-24

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper
