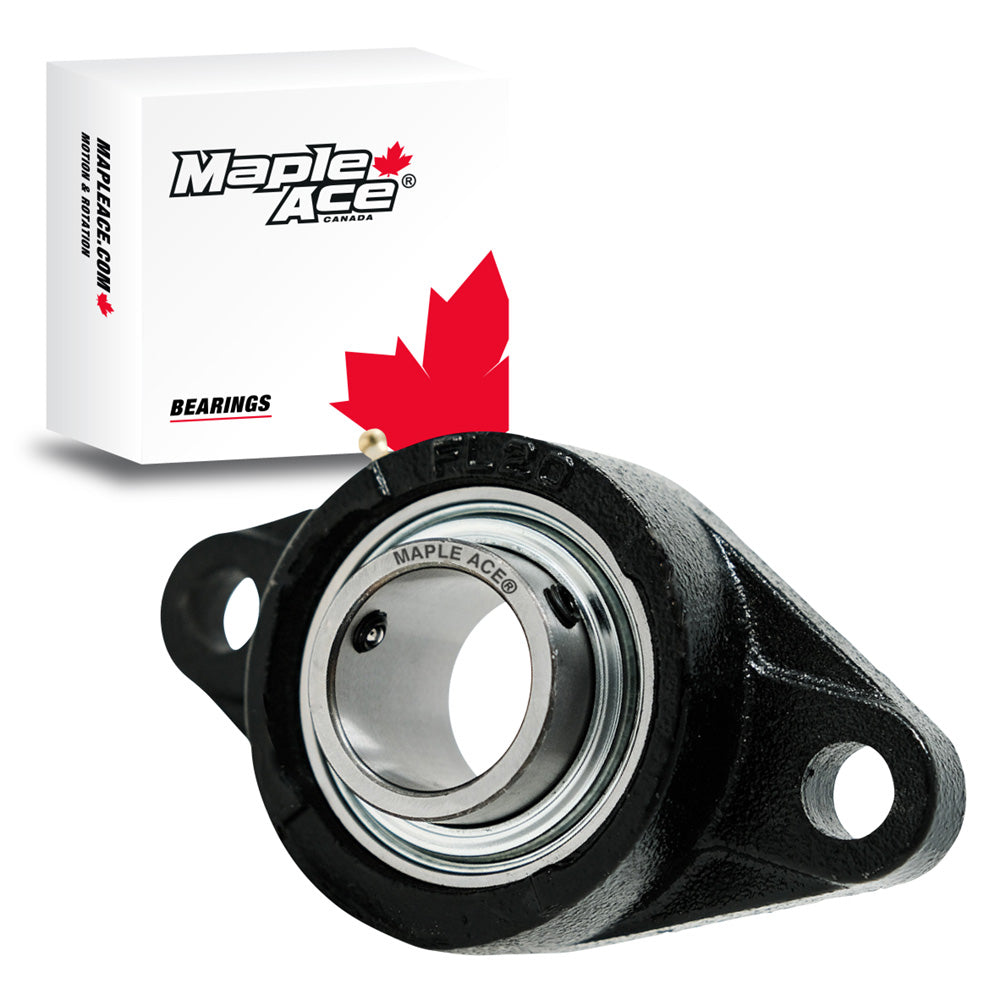

UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal
UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal

UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal

: In stock

: Mounted Bearings

: MAPLE ACE

$21.65 USD

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing The INSERT BEARING has Triple-Lip Seal: Unmatched protection in...

  • Exclusively Produced by High Standard Factories
  • Ideal for Replacement and OEM Applications
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
  • DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
  • 100% SATISFACTION GUARANTEED
Add to wishlist

Description

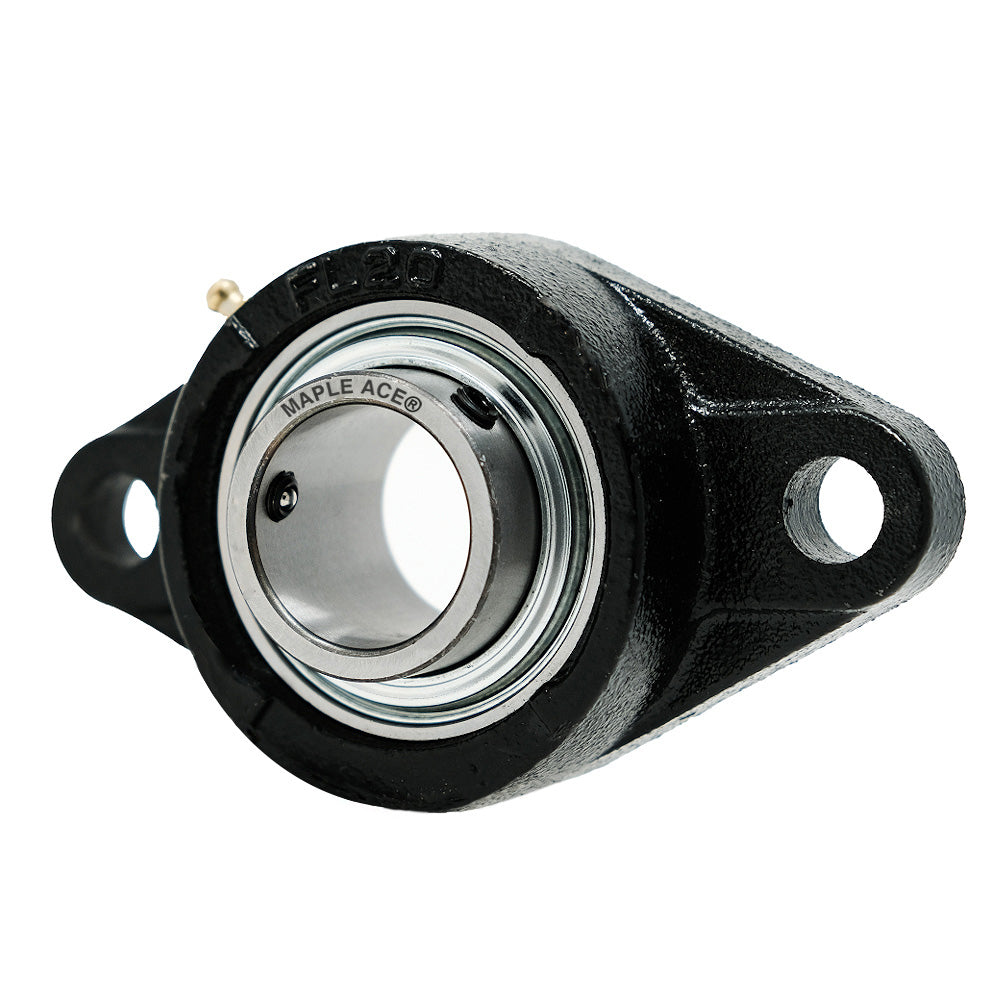

  • This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing

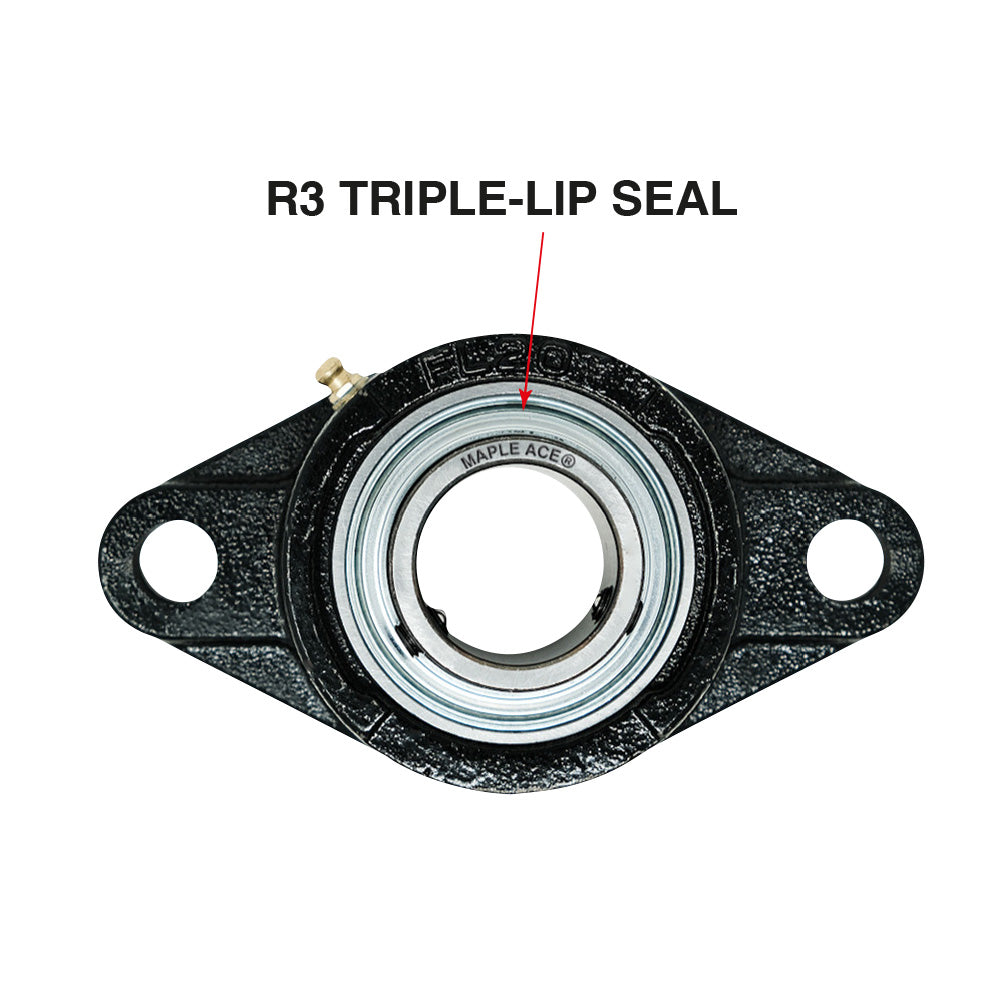

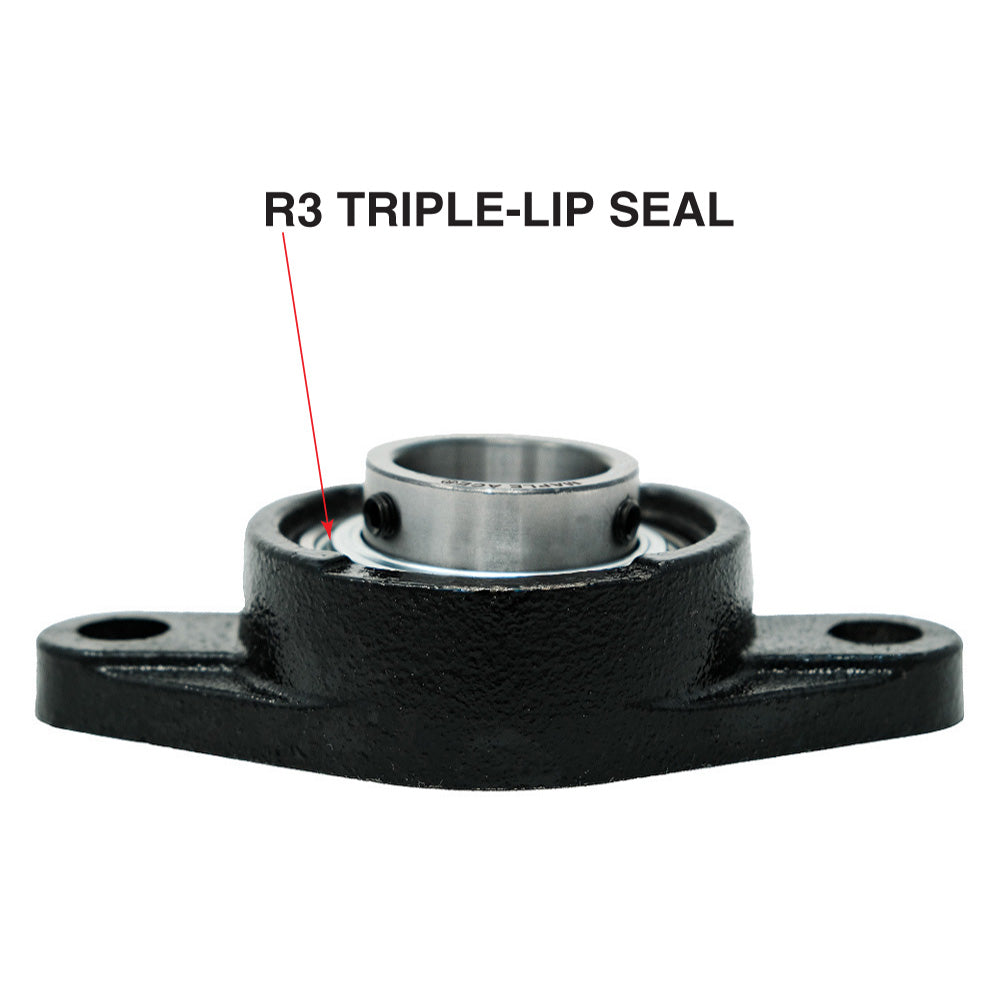

  • The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water
  • Has a Set Screw Lock on its surface for securing the shaft
  • The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes.
  • Grease Fitting Offset on top to Relubricate the bearing

Item  UCFL208 R3
Series  UCFL200
Bearing Number  UC208 R3
Housing Number  FL208
Number of Bolts  2
Bolt Size (S)  1/2 in
Bearing Inner Diameter (d) Metric  40.00 mm
Bearing Inner Diameter (d) Inch  1.574 in
Bearing Width Inner Ring (Bi) Matric  49.2 mm
Bearing Width Inner Ring (Bi) Inch  1.937 in
Bolt Hole Center to Center (e) Matric  144 mm
Bolt Hole Center to Center (e) Inch  5.67 in
Flange width (a) Matric  175 mm
Flange width (a) Inch  6.89 in
Overall Height (Z) Matric  51.20 mm
Overall Height (Z) Inch  2.015 in
Dynamic Load Rating Cr  30700 N
Static Load Rating Cor  19000 N
Limiting Speed  4800 r/min
Clearance  Normal
Bearing Sealing type  R3 Triple-Lip Seal
Lubrication Type  Grease Shell RL2
Lubrication Temperature  -20°C to +160°C
Rolling Element Indicator  Ball
Bearing Material  Gcr15
Housing Material  H200 Cast Iron
Locking Type  Set Screws
Weight  1.480 KG
ManufacturerPart Number
ASAHIUCFL208RT
FAGUCFL208
FYHUCFL208
INAUCFL208
KoyoUCFL208
NACHIUCFL208RT
NSKUCFL208D1
NTNUCFL208D1
RHPSFT40
SKFFYT 40 TF
SNRUCFL208L3
TIMKENUCFL208

You can use this FLANGE-MOUNT BEARING as a Replacement Part for:

  • PowerSports
  • Sporting Machines
  • Go-KART
  • Marine
  • HVAC
  • Furnaces
  • Industrial Applications
  • Transmissions
  • Elevators
  • Lifts and Hoists
  • Cranes
  • Rolling Mills
  • Agriculture Machines
  • Mining Construction Equipment
  • Food & Beverage
  • Energy
  • Water Treatment
  • Sawmills
  • Lumber Grading Station
  • Mixers
  • Pulp and Paper

UCFL208 Flange Bearing 40mm Bore, Oval 2-Bolt Self-Aligning, Solid Base, 3 Lips Seal

$21.65
